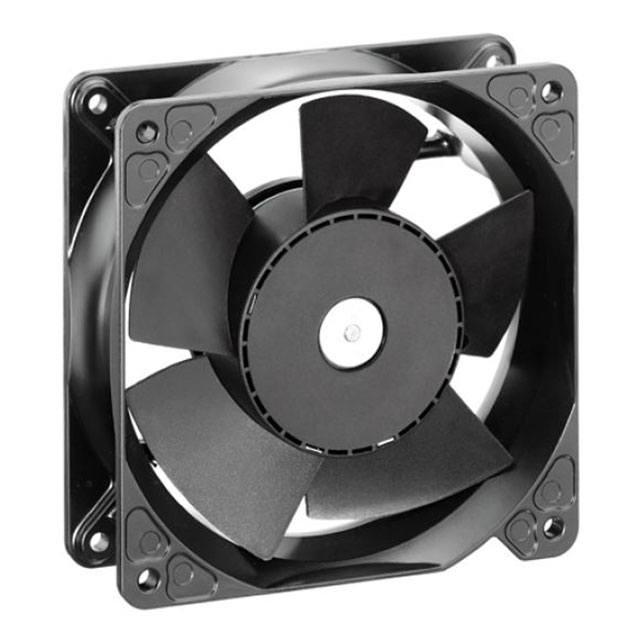

4118N Series

Catalog

DC FAN AXIAL BALL BEARING 48V 36V TO 60V 259CFM 73DB 119 X 119 X 38MM

Part	Air Flow	Air Flow	Voltage Range [Min]	Voltage Range [Max]	Lifetime @ Temp.	Material - Frame	Material - Blade	Power (Watts)	Termination	RPM	Weight	Weight	Size / Dimension	Size / Dimension [x]	Size / Dimension [y]	Voltage - Rated	Operating Temperature	Operating Temperature [Min]	Operating Temperature [Max]	Width [y]	Approval Agency	Noise	Bearing Type	Fan Type	Features	Weight [custom]	Weight [custom]	Ingress Protection	Current Rating (Amps)	Operating Temperature [Max]	Operating Temperature [Min]

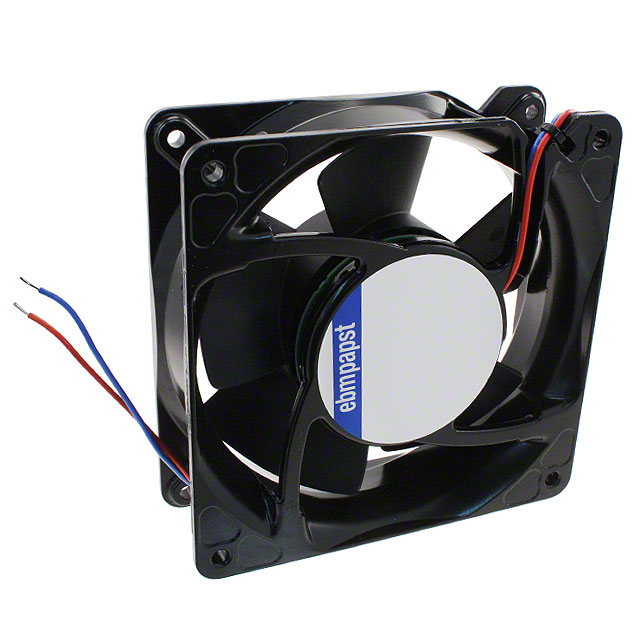

ebm-papst Inc. 4118NH6	7.25 mł/min	259 CFM	36 VDC	60 V	62500 Hrs	Aluminum	Polyamide (PA) Nylon Fiberglass Reinforced	62 W	2 Wire Leads	8400 RPM	0.86 lb	390.09 g	Square	119 mm	119 mm	48 VDC	(-20 ~ 65°C)	-20 ░C	65 °C	38 mm	CSA UL VDE	73 dB(A)	Ball	Tubeaxial

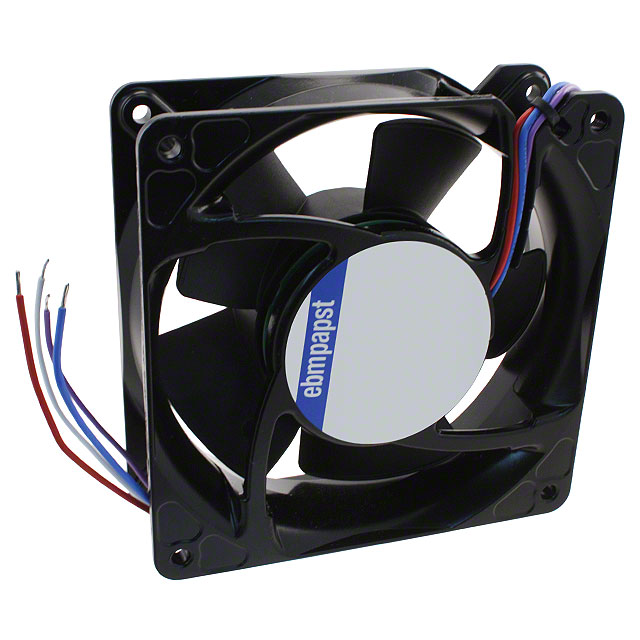

ebm-papst Inc. 4118N/2H4PU	5.77 m³/min	206 CFM	36 VDC	60 V		Aluminum	Polyamide (PA) Nylon Fiberglass Reinforced	34 W	4 Wire Leads	6800 RPM			Square	119 mm	119 mm	48 VDC	(-20 ~ 65°C)	-20 ░C	65 °C	38 mm	UL	67 dB	Ball	Tubeaxial	PWM Control Speed Sensor (Tach)	0.882 lb	400.07 g	IP68 - Dust Tight Waterproof

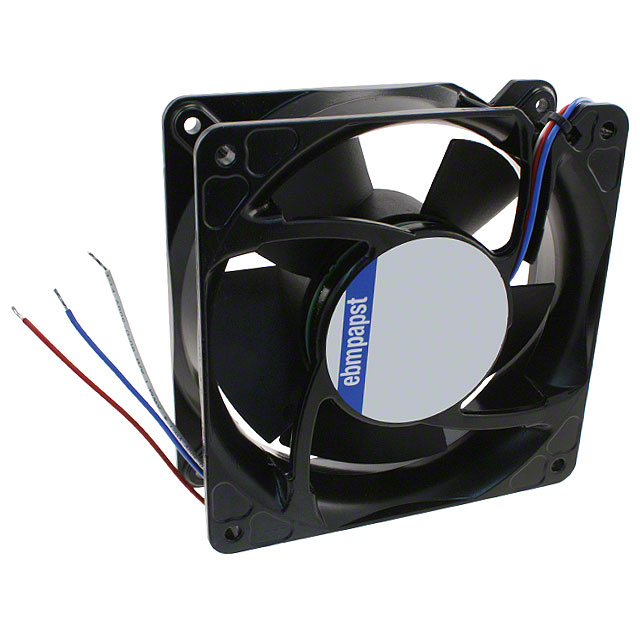

ebm-papst Inc. 4118N/2HH-187	4.48 m³/min	160 CFM	44 VDC	52 VDC	70000 Hrs	Metal		14.7 W	3 Wire Leads	5000 RPM	0.86 lb	390.09 g	Square	119 mm	119 mm	48 VDC		-20 ░C	50 °C	38 mm		64 dB(A)	Ball	Tubeaxial	Speed Sensor (Tach)				0.305 A
ebm-papst Inc. 4118NHU-294	3.92 mł/min	140 CFM	36 VDC	56 VDC		Aluminum	Polyamide (PA) Nylon Fiberglass Reinforced	11 W	2 Wire Leads	4400 RPM			Square	119 mm	119 mm	48 VDC		-20 ░C	55 °C	38 mm	UL	56 dB	Ball	Tubeaxial		0.882 lb	400.07 g	IP68 - Dust Tight Waterproof		55 °C	-4 °F
ebm-papst Inc. 4118N/2H3P-344	5.1 m³/min	182 CFM	36 VDC	60 V	65000 Hrs	Aluminum	Polyamide (PA) Nylon Fiberglass Reinforced	20 W	4 Wire Leads	6000 RPM			Square	119 mm	119 mm	48 VDC	(-20 ~ 65°C)	-20 ░C	65 °C	38 mm		67 dB	Ball	Tubeaxial	PWM Control Speed Sensor (Tach)
ebm-papst Inc. 4118NH5	6.43 m³/min	229.5 CFM	36 VDC	60 V	62500 Hrs	Aluminum	Polyamide (PA) Nylon Fiberglass Reinforced	45 W	2 Wire Leads	7500 RPM	0.86 lb	390.09 g	Square	119 mm	119 mm	48 VDC				38 mm	CSA UL VDE	70 dB(A)	Ball	Tubeaxial
ebm-papst Inc. 4118N/2H7P	8.23 m³/min	294 CFM	36 VDC	60 V	57500 Hrs	Aluminum	Polyamide (PA) Nylon Fiberglass Reinforced	90 W	4 Wire Leads	9500 RPM	0.937 lb	425.02 g	Square	119 mm	119 mm	48 VDC		-4 °F	167 °F	38 mm		76 dB(A)	Ball	Tubeaxial	PWM Control Speed Sensor (Tach)
ebm-papst Inc. 4118NHHU-302	4.28 m³/min	153 CFM	36 VDC	60 V		Aluminum	Polyamide (PA) Nylon Fiberglass Reinforced	12 W	2 Wire Leads	5000 RPM			Square	119 mm	119 mm	48 VDC				38 mm		60 dB(A)	Ball	Tubeaxial

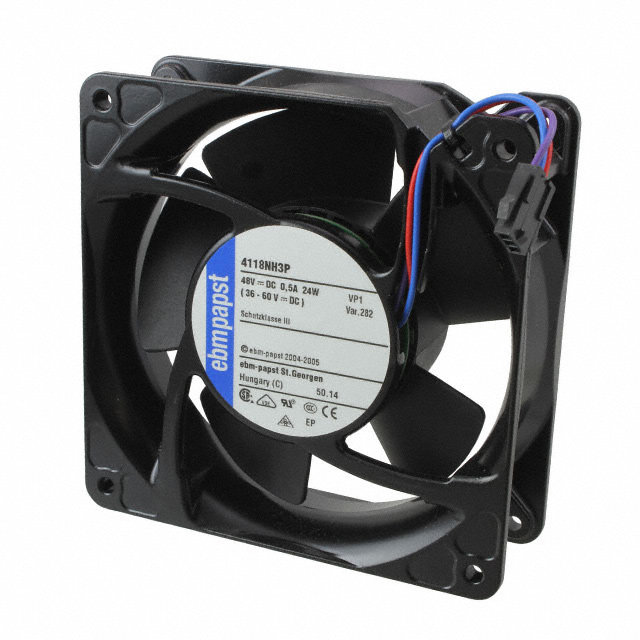

ebm-papst Inc. 4118NH3P-282	5.11 m³/min	182.4 CFM	36 VDC	60 V	65000 Hrs	Metal	Plastic	24 W	3 Position Rectangular Connector	6000 RPM	0.26 lb	117.93 g	Square	119 mm	119 mm	48 VDC	(-20 ~ 65°C)	-20 ░C	65 °C	38 mm	CE CSA UL VDE	64 dB(A)	Ball	Tubeaxial	PWM Control				0.5 A
ebm-papst Inc. 4118NH5P-277	6.43 m³/min	229.5 CFM	36 VDC	60 V	62500 Hrs	Metal	Plastic	42 W	3 Position Rectangular Connector	7500 RPM	0.86 lb	390.09 g	Square	119 mm	119 mm	48 VDC	(-20 ~ 65°C)	-20 ░C	65 °C	38 mm	CCC CSA UL VDE	70 dB(A)	Ball	Tubeaxial	PWM Control			IP20	0.87 A
