XZFCBD14 Series
Manufacturer: SunLED
Beta
⌘K
DISPLAY 7SEG 0.56" SGL BLU 10SMD
| Part | Wavelength - Peak | Current - Test | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [z] | Size / Dimension [y] | Number of Characters | Display Type | Package / Case | Digit/Alpha Size | Digit/Alpha Size | Power Dissipation (Max) | Color | Voltage - Forward (Vf) (Typ) | Common Pin | Millicandela Rating | Number of Characters | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [z] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

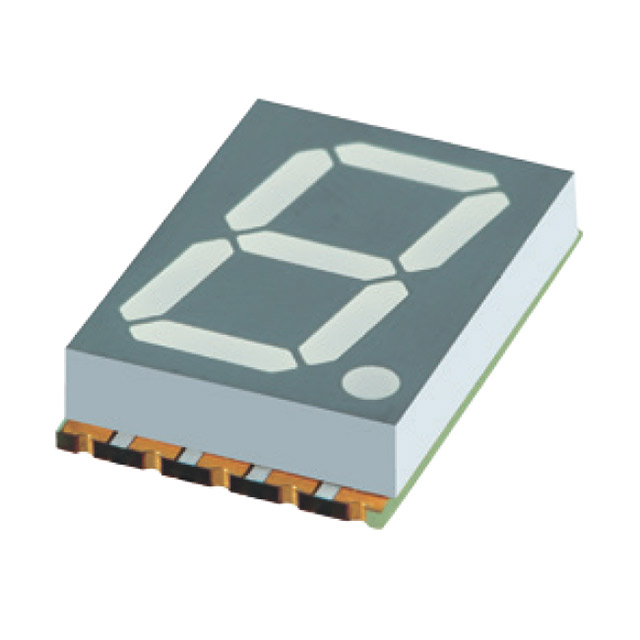

 SunLED | 460 nm | 10 mA | 3.75 mm 17 mm | 12.4 mm | 0.148 in 0.669 " | 0.488 " | 1 | 7-Segment | 10-SMD No Lead | 0.56 in | 14.22 mm | 120 mW | Blue | 3 V | Common Cathode | 15 mcd | |||||

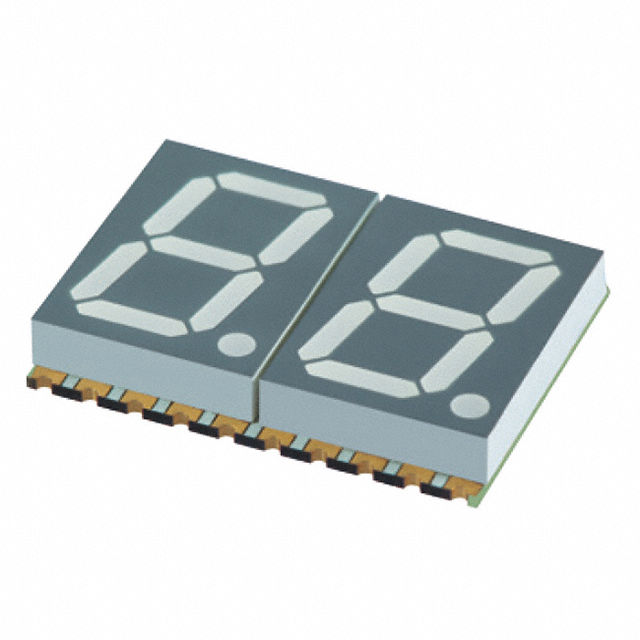

 SunLED | 460 nm | 10 mA | 3.75 mm | 25.1 mm | 0.148 in | 0.988 " | 7-Segment | 20-SMD No Lead | 0.56 in | 14.22 mm | 120 mW | Blue | 3 V | Common Anode | 15 mcd | 2 | 17 mm | 0.669 in | |||
 SunLED | 468 nm | 10 mA | 0.148 in | 0.488 " | 1 | 7-Segment | 10-SMD No Lead | 0.56 in | 14.22 mm | 120 mW | Blue | 3 V | Common Anode | 15 mcd | 19 mm | 0.748 in | 12.4 mm | 3.75 mm |
