VO4661 Series

Catalog

OPTOISO 5.3KV 2CH OPEN DRN 8SMD

Part	Voltage - Isolation [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Data Rate	Number of Channels	Common Mode Transient Immunity (Min) [Min]	Voltage - Supply [Max]	Voltage - Supply [Min]	Current - DC Forward (If) (Max) [Max]	Inputs - Side 1/Side 2 [custom]	Supplier Device Package	Output Type	Propagation Delay tpLH / tpHL (Max) [custom]	Propagation Delay tpLH / tpHL (Max) [custom]	Input Type	Current - Output / Channel	Voltage - Forward (Vf) (Typ)	Rise / Fall Time (Typ) [custom]	Rise / Fall Time (Typ) [custom]	Package / Case
Vishay Semiconductor Opto Division VO4661-X007T	5300 Vrms	-40 C	100 °C	Surface Mount	10 Mbps	2	15 kV/µs	5.5 V	4.5 V	15 mA	2	8-SMD	Open Drain	75 ns	75 ns	DC	50 mA	1.4 V	23 ns	7 ns

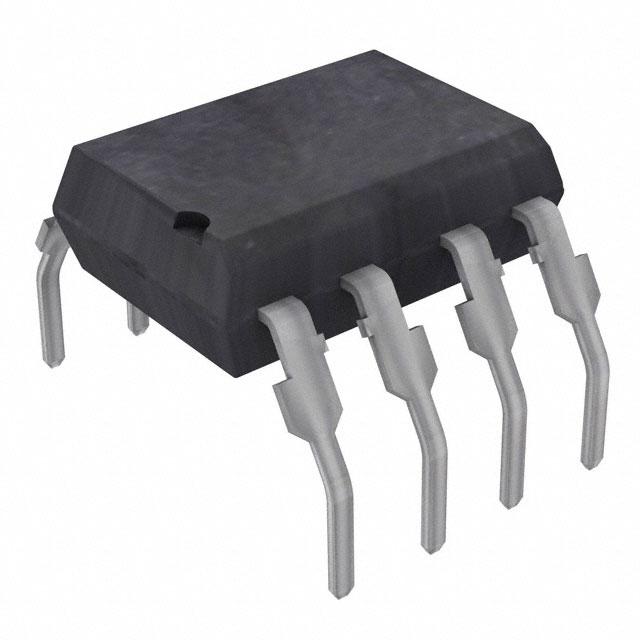

Vishay Semiconductor Opto Division VO4661-X006	5300 Vrms	-40 C	100 °C	Through Hole	10 Mbps	2	15 kV/µs	5.5 V	4.5 V	15 mA	2	8-DIP	Open Drain	75 ns	75 ns	DC	50 mA	1.4 V	23 ns	7 ns	8-DIP (0.400" 10.16mm)
Vishay Semiconductor Opto Division VO4661	5300 Vrms	-40 C	100 °C	Through Hole	10 Mbps	2	15 kV/µs	5.5 V	4.5 V	15 mA	2	8-DIP	Open Drain	75 ns	75 ns	DC	50 mA	1.4 V	23 ns	7 ns	8-DIP (0.300" 7.62mm)
