7202-1572 Series
Manufacturer: Radiall USA, Inc.
Beta
⌘K

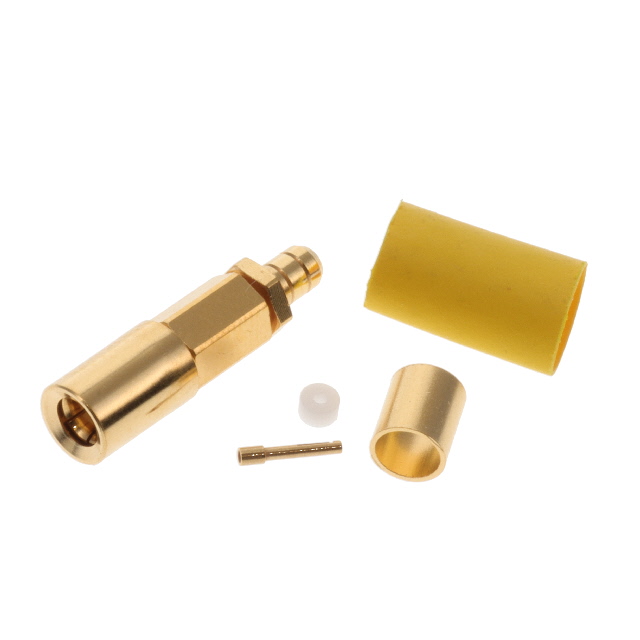

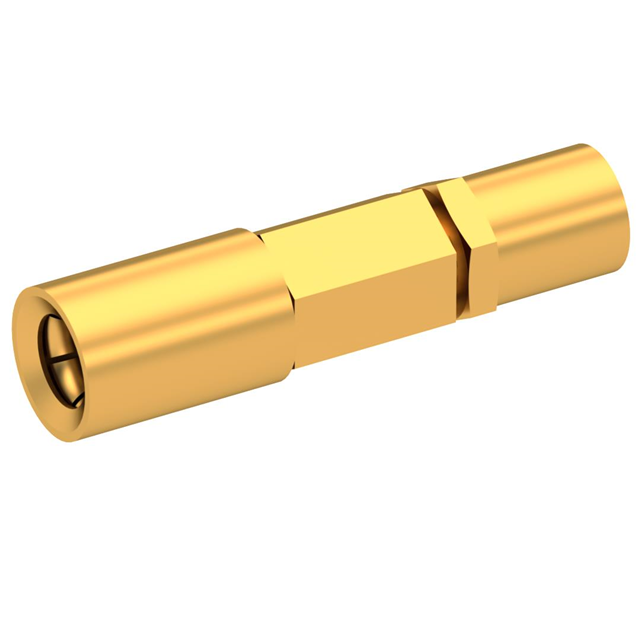

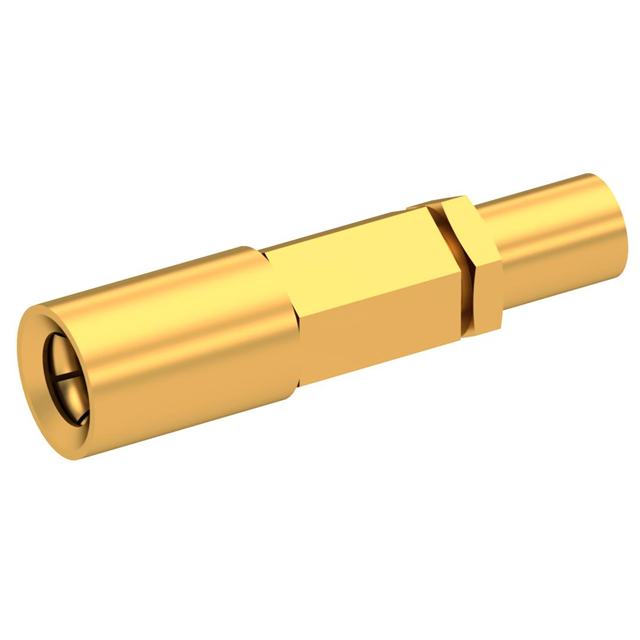

SSMB F STR NA CR 2.6/50S
| Part | Mating Cycles | Body Material | Center Contact Plating | Voltage Rating | Dielectric Material | Body Finish | Operating Temperature [Min] | Operating Temperature [Max] | Contact Termination | Housing Color | Fastening Type | Cable Group | Mounting Type | Number of Ports | Connector Type | Frequency - Max [Max] | Center Contact Material | Shield Termination | Impedance | Connector Style | Cable Group |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Radiall USA, Inc. | 500 | Beryllium Copper | Gold | 250 V | Polytetrafluoroethylene (PTFE) | Gold | -65 ░C | 165 °C | Crimp | Gold | Snap-On | RG-174 RG-179 RG-316 | Free Hanging (In-Line) | 1 | Female Socket Plug | 12.4 GHz | Beryllium Copper | Crimp | 50 Ohms | SSMB | |
 Radiall USA, Inc. | 500 | Beryllium Copper | Gold | 250 V | Polytetrafluoroethylene (PTFE) | Gold | -65 ░C | 165 °C | Crimp | Gold | Snap-On | RD-316 RG-316DS | Free Hanging (In-Line) | 1 | Female Socket Plug | 12.4 GHz | Beryllium Copper | Crimp | 50 Ohms | SSMB | |
 Radiall USA, Inc. | 500 | Beryllium Copper | Gold | 250 V | Polytetrafluoroethylene (PTFE) | Gold | -65 ░C | 165 °C | Crimp | Gold | Snap-On | RG-178 | Free Hanging (In-Line) | 1 | Female Socket Plug | 12.4 GHz | Beryllium Copper | Crimp | 50 Ohms | SSMB | 196 |
