74LVC1G3157 Series
Manufacturer: UMW
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K

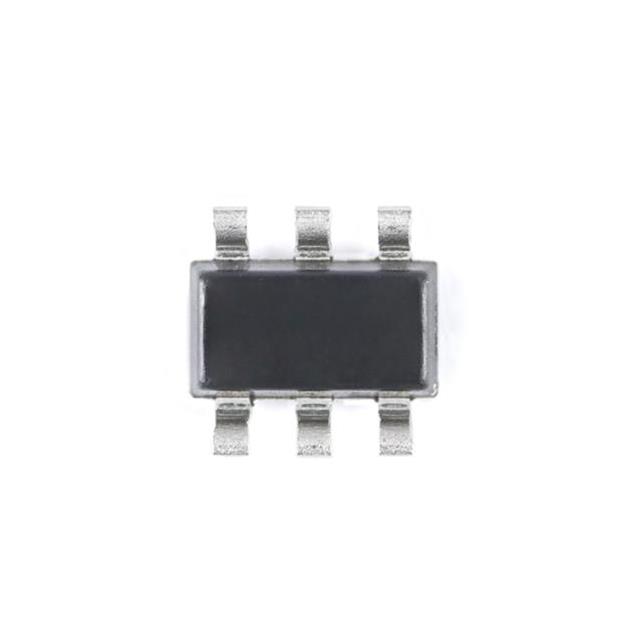

IC SW SPDT-NO/NCX1 7OHM SC70-6
| Part | Number of Circuits | Package / Case | Switch Time Ton (Max) | Switch Time Toff (Max) | Switch Circuit Type | Switch Contact | Charge Injection | Channel-to-Channel Matching (ΔRon) (Typ) | Channel Capacitance (CS(off)) | Channel Capacitance (CD(off)) | Package Name | -3db Bandwidth | Operating Temperature (Max) | Operating Temperature (Min) | Voltage - Supply, Single (V+) (Minimum) | Voltage - Supply, Single (V+) (Maximum) | On-State Resistance (Typ) | Multiplexer Inputs | Demultiplexer Outputs | Current - Leakage (Max) | Mounting Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
1 | 6-VSSOP SC-88 SOT-363 | 5.2 ns | 3.5 ns | SPDT | NC NO | 7 pC | 150 mOhm | 5.2 pF | 5.2 pF | SC70-6 | 350 MHz | 125 °C | -55 °C | 1.65 V | 5.5 V | 7 Ohm | 2 | 1 | 100 nA | Surface Mount |
