1546670 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

CONN BARRIER STRIP 9CIRC 0.437"

Part	Wire Gauge [Min]	Wire Gauge [Max]	Color	Terminal Block Type	Operating Temperature [Min]	Operating Temperature [Max]	Number of Wire Entries	Bottom Termination	Pitch [x]	Pitch [x]	Barrier Type	Terminal Screw Finish	Voltage Rating	Material - Insulation	Mounting Type	Top Termination	Material Flammability Rating	Number of Rows	Terminal Screw Material	Features	Current Rating (Amps)	Number of Circuits	Number of Wire Entries [custom]
TE Connectivity Raychem Cable Protection 3-1546670-2	14 AWG	22 AWG	Black	Barrier Block	-40 °C	120 °C	18	Closed	0.437 in	11.1 mm	2 Wall (Dual)	Nickel	300 VDC	Thermoplastic	Chassis Panel	Screws with Quick Connect Tabs	UL94 V-0	2	Steel	Flange	25 A
TE Connectivity Raychem Cable Protection 2-1546670-4	14 AWG	22 AWG	Black	Barrier Block	-40 °C	120 °C		Closed	0.437 in	11.1 mm	2 Wall (Dual)	Nickel	300 VDC	Thermoplastic	Chassis Panel	Screws	UL94 V-0	2	Steel	Flange	25 A	24	48

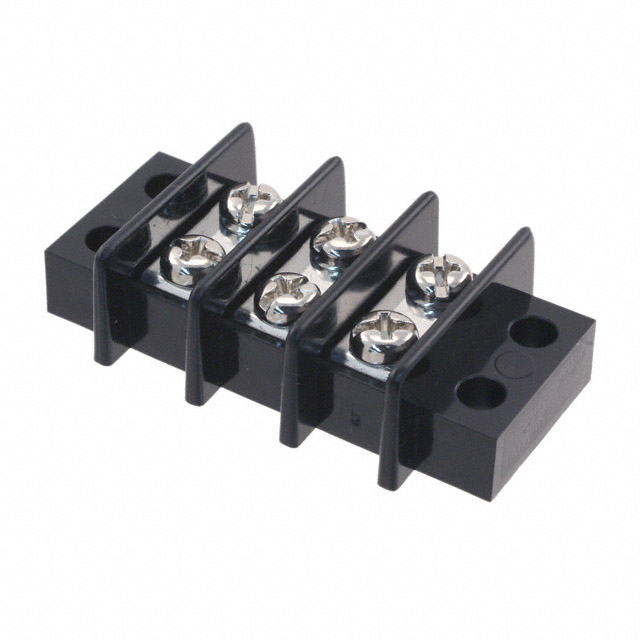

TE Connectivity Raychem Cable Protection 1546670-3	14 AWG	22 AWG	Black	Barrier Block	-40 °C	120 °C	6	Closed	0.437 in	11.1 mm	2 Wall (Dual)	Nickel	300 VDC	Thermoplastic	Chassis Panel	Screws	UL94 V-0	2	Steel	Flange	25 A	3

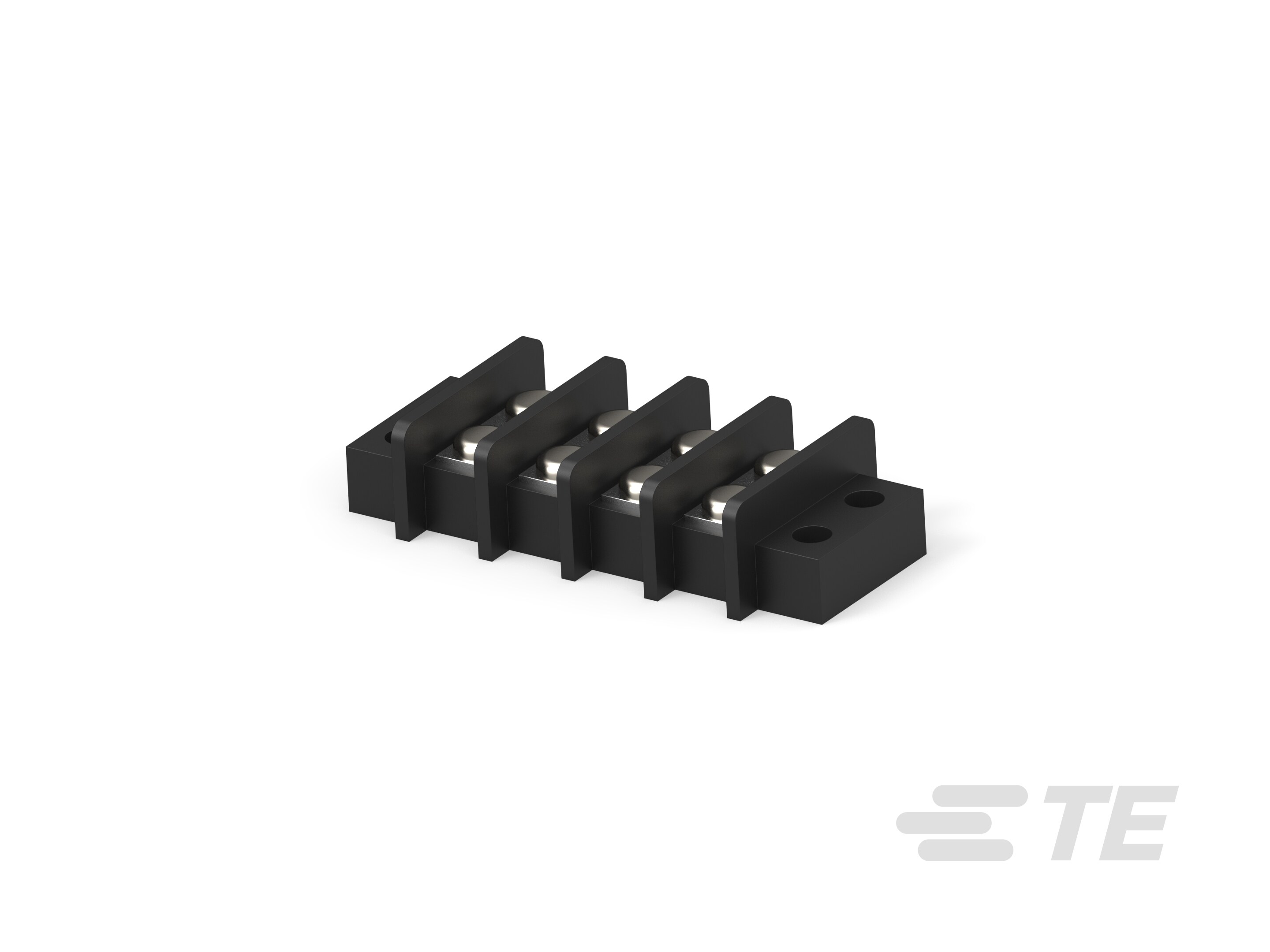

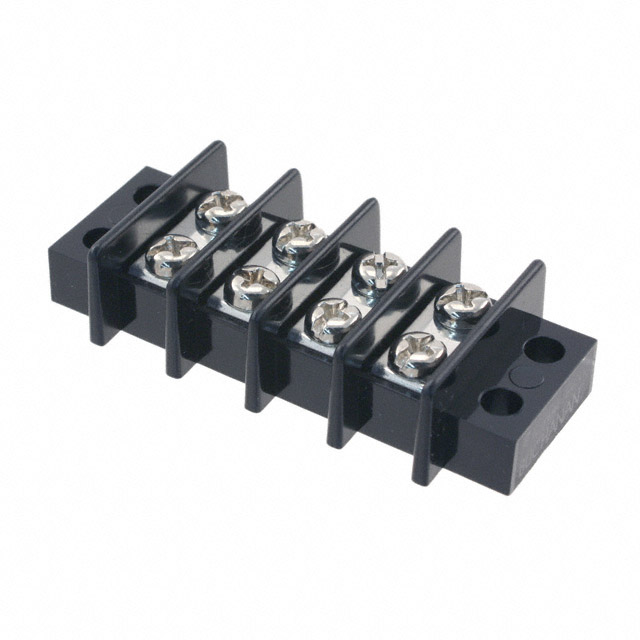

TE Connectivity Raychem Cable Protection 1546670-4	14 AWG	22 AWG	Black	Barrier Block	-40 °C	120 °C	8	Closed	0.437 in	11.1 mm	2 Wall (Dual)	Nickel	300 VDC	Thermoplastic	Chassis Panel	Screws	UL94 V-0	2	Steel	Flange	25 A	4
TE Connectivity Raychem Cable Protection 1-1546670-9	14 AWG	22 AWG	Black	Barrier Block	-40 °C	120 °C	38	Closed	0.437 in	11.1 mm	2 Wall (Dual)	Nickel	300 VDC	Thermoplastic	Chassis Panel	Screws	UL94 V-0	2	Steel	Flange	25 A	19

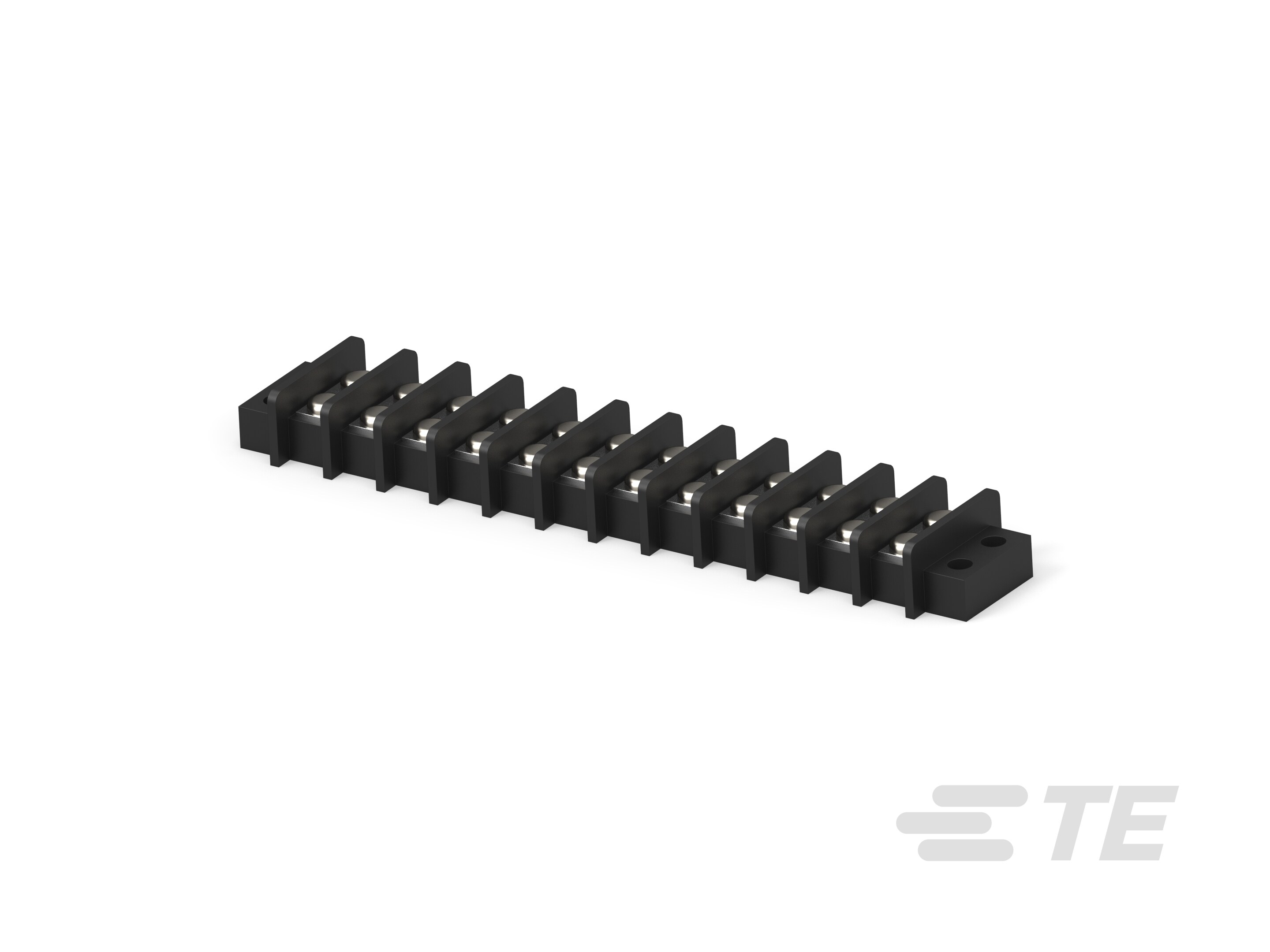

TE Connectivity Raychem Cable Protection 4-1546670-2	14 AWG	22 AWG	Black	Barrier Block	-40 °C	120 °C		Closed	0.437 in	11.1 mm	2 Wall (Dual)	Nickel	300 VDC	Thermoplastic	Chassis Panel	Screws	UL94 V-0	2	Steel	Flange	25 A	12

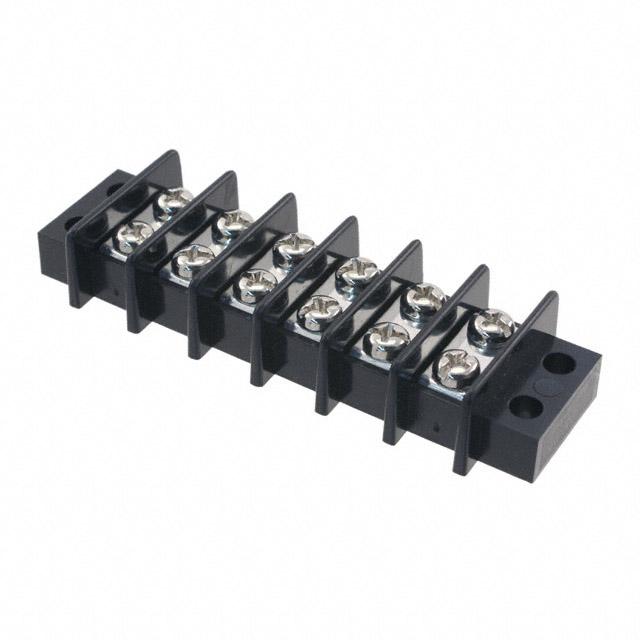

TE Connectivity Raychem Cable Protection 1546670-6	14 AWG	22 AWG	Black	Barrier Block	-40 °C	120 °C	12	Closed	0.437 in	11.1 mm	2 Wall (Dual)	Nickel	300 VDC	Thermoplastic	Chassis Panel	Screws	UL94 V-0	2	Steel	Flange	25 A	6
TE Connectivity Raychem Cable Protection 3-1546670-5	14 AWG	22 AWG	Black	Barrier Block	-40 °C	120 °C	18	Closed	0.437 in	11.1 mm	2 Wall (Dual)	Nickel	300 VDC	Thermoplastic	Chassis Panel	Screws with Quick Connect Tabs	UL94 V-0	2	Steel	Flange	25 A

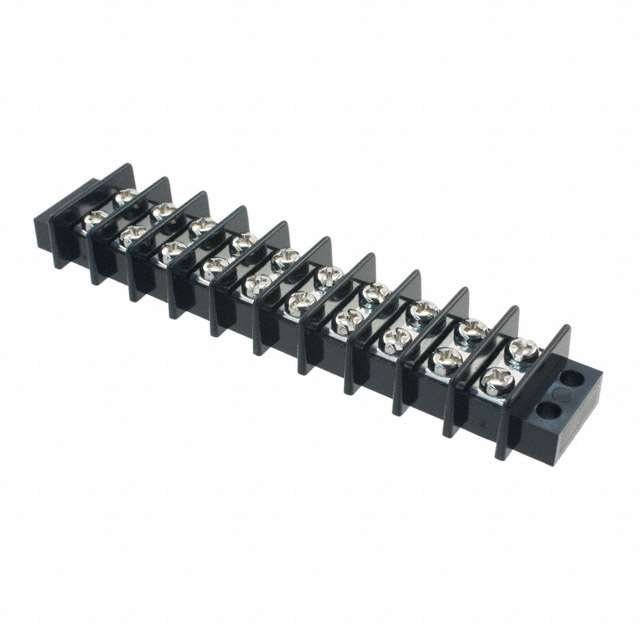

TE Connectivity Raychem Cable Protection 1-1546670-0	14 AWG	22 AWG	Black	Barrier Block	-40 °C	120 °C	20	Closed	0.437 in	11.1 mm	2 Wall (Dual)	Nickel	300 VDC	Thermoplastic	Chassis Panel	Screws	UL94 V-0	2	Steel	Flange	25 A	10

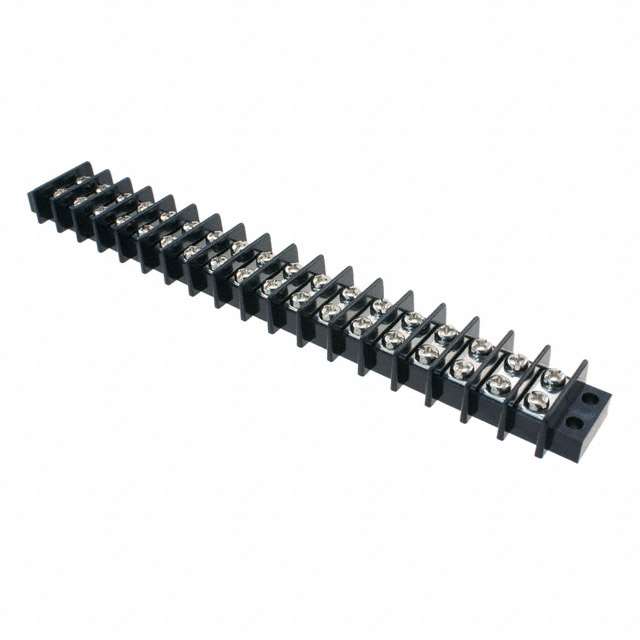

TE Connectivity Raychem Cable Protection 1-1546670-8	14 AWG	22 AWG	Black	Barrier Block	-40 °C	120 °C	36	Closed	0.437 in	11.1 mm	2 Wall (Dual)	Nickel	300 VDC	Thermoplastic	Chassis Panel	Screws	UL94 V-0	2	Steel	Flange	25 A	18
