068300 Series

Manufacturer: Molex

Catalog

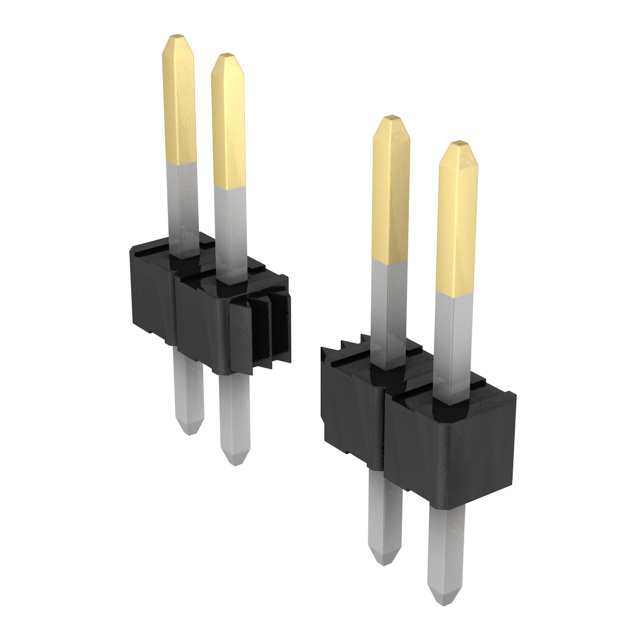

CONN HEADER VERT 8POS 2.54MM

Part	Mounting Type	Termination	Overall Contact Length	Overall Contact Length	Shrouding	Number of Positions	Number of Rows	Style	Contact Length - Post	Contact Length - Post	Fastening Type	Pitch - Mating	Pitch - Mating	Connector Type	Contact Material	Insulation Material	Insulation Height	Insulation Height	Number of Positions Loaded	Contact Shape	Insulation Color	Contact Type	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Length - Mating	Contact Length - Mating	Contact Finish - Post	Applications	Material Flammability Rating	Contact Finish - Mating	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Number of Positions Loaded	Contact Length - Post [x]	Contact Length - Post [x]
Molex 0683001100	Through Hole	Solder	0.8 in	20.32 mm	Unshrouded	8	1	Board to Board Cable	4.32 mm	0.17 in	Push-Pull	0.1 in	2.54 mm	Breakaway Header	Phosphor Bronze	Glass Filled Nylon 4/6 Polyamide (PA46)	0.09 in	2.29 mm	All	Square	Black	Male Pin
Molex 0683002008	Through Hole	Solder	0.475 in	12.07 mm	Unshrouded		1	Board to Board Cable	3.89 mm	0.153 in	Push-Pull	0.1 in	2.54 mm	Breakaway Header		Glass Filled Nylon Polyamide (PA)	0.09 in	2.29 mm	All	Square	Black	Male Pin	15 µin	0.38 µm	5.9 mm	0.232 in	Tin	Automotive General Purpose Medical Telecommunications	UL94 V-0	Gold	2.54 µm	100 µin
Molex 0683002002	Through Hole	Solder	0.54 in	13.72 mm	Unshrouded	8	1	Board to Board Cable			Push-Pull	0.1 in	2.54 mm	Breakaway Header		Glass Filled Nylon Polyamide (PA)	0.09 in	2.29 mm		Square	Black	Male Pin	15 µin	0.38 µm	6.35 mm	0.25 in	Tin	Automotive General Purpose Medical Telecommunications	UL94 V-0	Gold	2.54 µm	100 µin	7	5.08 mm	0.2 in
Molex 0683002006	Through Hole	Solder	0.54 in	13.72 mm	Unshrouded		1	Board to Board Cable			Push-Pull	0.1 in	2.54 mm	Breakaway Header		Glass Filled Nylon Polyamide (PA)	0.09 in	2.29 mm	All	Square	Black	Male Pin	15 µin	0.38 µm	6.35 mm	0.25 in	Tin	Automotive General Purpose Medical Telecommunications	UL94 V-0	Gold	2.54 µm	100 µin		5.08 mm	0.2 in
