UB16KKG Series

Catalog

PUSHBUTTON SWITCHES ON-ON SQ SOLDER RED LED CLR/CLR CAP .4VA

Part	Mechanical Life	Electrical Life	Features	Mounting Type	Actuator Type	Illumination Voltage (Nominal)	Color - Actuator/Cap	Illumination Type, Color	Termination Style	Voltage Rating - DC	Operating Temperature [Max]	Operating Temperature [Min]	Type	Circuit	Current Rating (Amps)	Actuator Marking	Switch Function	Voltage Rating - AC	Panel Cutout Dimensions [x]	Panel Cutout Dimensions [y]
NKK Switches UB16KKG015C-JJ	200000 Cycles	200000 Cycles	Process Sealed	Panel Mount Snap-In	Button Square	1.85 VDC	Clear	LED Red	Solder Lug	28 V	50 °C	-25 °C	Illuminated Standard	SPDT	0.4 VA	No Marking	On-On	28 V	16.2 mm	16.2 mm
NKK Switches UB16KKG015C-AB	200000 Cycles	200000 Cycles	Process Sealed	Panel Mount Snap-In	Button Square	1.85 VDC	Black	LED Red	Solder Lug	28 V	50 °C	-25 °C	Illuminated Standard	SPDT	0.4 VA	No Marking	On-On	28 V	16.2 mm	16.2 mm
NKK Switches UB16KKG01N-E	200000 Cycles	200000 Cycles	Process Sealed	Panel Mount Snap-In	Button Square		Yellow		Solder Lug	28 V	70 °C	-20 ░C	Standard	SPDT	0.4 VA	No Marking	On-On	28 V	16.2 mm	16.2 mm
NKK Switches UB16KKG016B	200000 Cycles	200000 Cycles	Process Sealed	Panel Mount Snap-In	Plunger for Cap	2.9 VDC		LED White	Solder Lug	28 V	50 °C	-25 °C	Illuminated Standard	SPDT	0.4 VA	No Marking	On-On	28 V	16.2 mm	16.2 mm
NKK Switches UB16KKG015D-DJ	200000 Cycles	200000 Cycles	Process Sealed	Panel Mount Snap-In	Button Square	2 VDC	Amber	Amber LED	Solder Lug	28 V	50 °C	-25 °C	Illuminated Standard	SPDT	0.4 VA	No Marking	On-On	28 V	16.2 mm	16.2 mm
NKK Switches UB16KKG015C-CJ	200000 Cycles	200000 Cycles	Process Sealed	Panel Mount Snap-In	Button Square	1.85 VDC	Red	LED Red	Solder Lug	28 V	50 °C	-25 °C	Illuminated Standard	SPDT	0.4 VA	No Marking	On-On	28 V	16.2 mm	16.2 mm
NKK Switches UB16KKG015C-CC	200000 Cycles	200000 Cycles	Process Sealed	Panel Mount Snap-In	Button Square	1.85 VDC	Red	LED Red	Solder Lug	28 V	50 °C	-25 °C	Illuminated Standard	SPDT	0.4 VA	No Marking	On-On	28 V	16.2 mm	16.2 mm

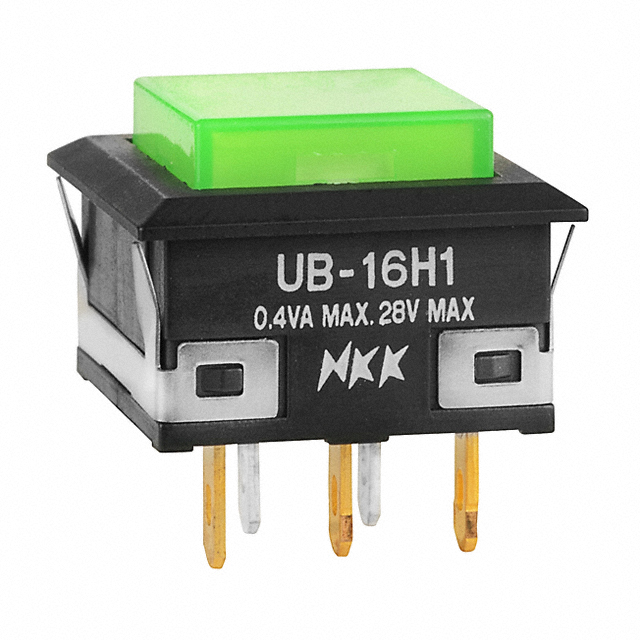

NKK Switches UB16KKG015F-FJ	200000 Cycles	200000 Cycles	Process Sealed	Panel Mount Snap-In	Button Square	2.1 VDC	Green	Green LED	Solder Lug	28 V	50 °C	-25 °C	Illuminated Standard	SPDT	0.4 VA	No Marking	On-On	28 V	16.2 mm	16.2 mm
NKK Switches UB16KKG015D-DD	200000 Cycles	200000 Cycles	Process Sealed	Panel Mount Snap-In	Button Square	2 VDC	Amber	Amber LED	Solder Lug	28 V	50 °C	-25 °C	Illuminated Standard	SPDT	0.4 VA	No Marking	On-On	28 V	16.2 mm	16.2 mm
NKK Switches UB16KKG01N	200000 Cycles	200000 Cycles	Process Sealed	Panel Mount Snap-In	Plunger for Cap				Solder Lug	28 V	70 °C	-20 ░C	Standard	SPDT	0.4 VA	No Marking	On-On	28 V	16.2 mm	16.2 mm
