JN1DS04F Series

Catalog

CONN PLUG FMALE 4P SOLDER CUP

Part	Voltage Rating	Mounting Type	Features	Shell Material	Contact Finish - Mating	Fastening Type	Shell Size - Insert	Number of Positions	Current Rating (Amps)	Cable Opening [Max]	Cable Opening [Min]	Cable Opening [Max]	Cable Opening [Min]	Contact Material	Color	Ingress Protection	Primary Material	Backshell Material, Plating	Operating Temperature [Min]	Operating Temperature [Max]	Insert Material	Orientation [x]	Connector Type	Cable Opening [Max]	Orientation

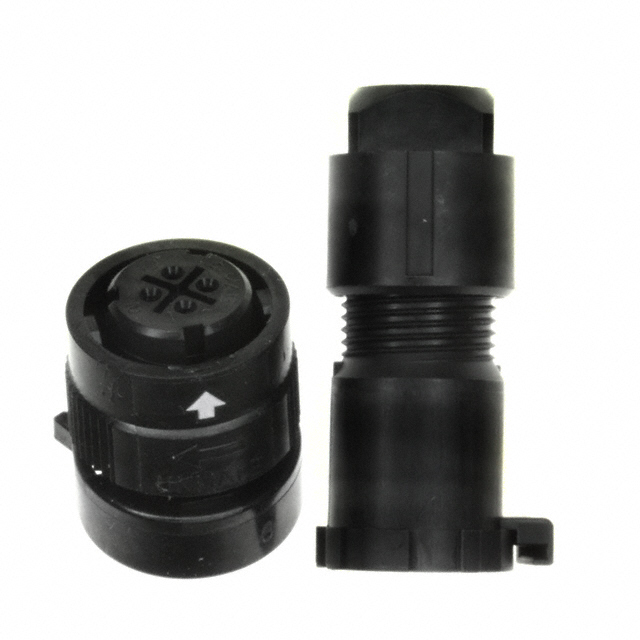

JAE Electronics JN1DS04FK2X	200 VAC	Free Hanging (In-Line)	Backshell Coupling Nut	Synthetic Resin	Silver	Push-Twist	S	4	5 A	0.315 in	6.5 mm	8 mm	0.256 in	Copper Alloy	Black	IP67 - Dust Tight Waterproof	Plastic	Synthetic Resin	-20 ░C	125 °C	Synthetic Resin	X	Plug Female Sockets

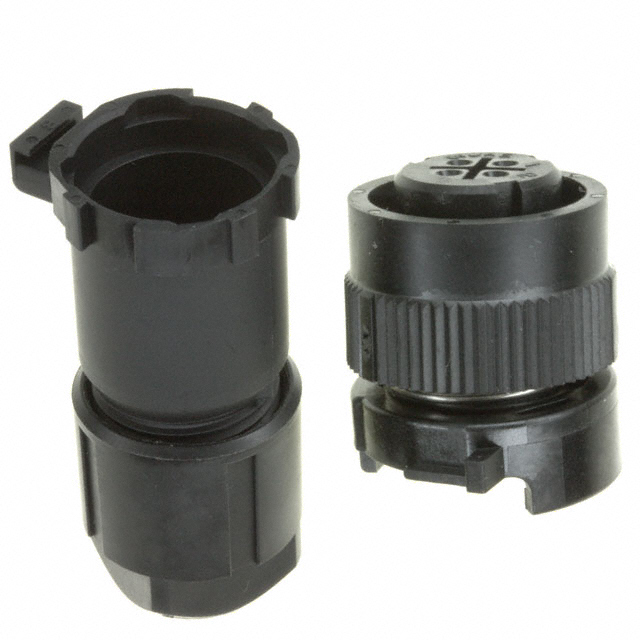

JAE Electronics JN1DS04FK1	200 VAC	Free Hanging (In-Line)	Backshell Coupling Nut	Synthetic Resin	Silver	Push-Twist	S	4	5 A	0.287 "	5.7 mm		0.224 "	Copper Alloy	Black	IP67 - Dust Tight Waterproof	Plastic	Synthetic Resin	-20 ░C	125 °C	Synthetic Resin		Plug Female Sockets	7.3 mm	N (Normal)
JAE Electronics JN1DS04FK3	200 VAC	Free Hanging (In-Line)	Backshell Coupling Nut	Synthetic Resin	Silver	Push-Twist	S	4	5 A	0.197 in	3.5 mm	5 mm	0.138 "	Copper Alloy	Black	IP67 - Dust Tight Waterproof	Plastic	Synthetic Resin	-20 ░C	125 °C	Synthetic Resin		Plug Female Sockets		N (Normal)

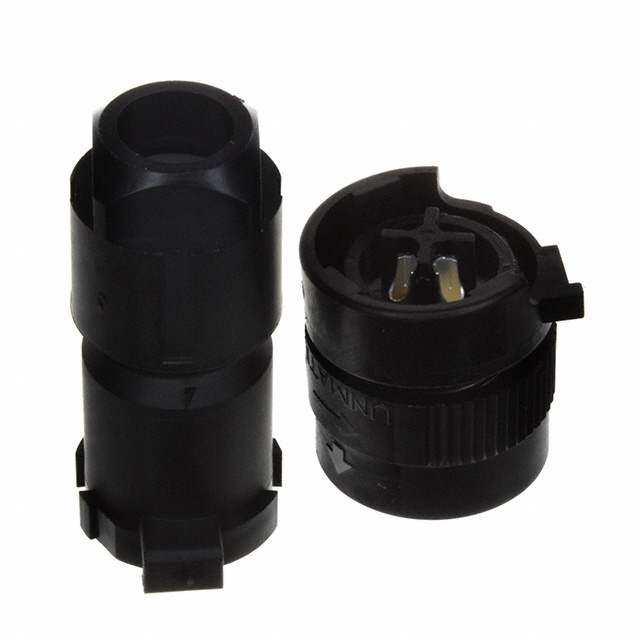

JAE Electronics JN1DS04FK2	200 VAC	Free Hanging (In-Line)	Backshell Coupling Nut	Synthetic Resin	Silver	Push-Twist	S	4	5 A	0.315 in	6.5 mm	8 mm	0.256 in	Copper Alloy	Black	IP67 - Dust Tight Waterproof	Plastic	Synthetic Resin	-20 ░C	125 °C	Synthetic Resin		Plug Female Sockets		N (Normal)
JAE Electronics JN1DS04FKKX	200 VAC	Free Hanging (In-Line)	Backshell Coupling Nut	Synthetic Resin	Silver	Push-Twist	S	4	5 A					Copper Alloy	Black	IP67 - Dust Tight Waterproof	Plastic	Synthetic Resin	-20 ░C	125 °C	Synthetic Resin	X	Plug Female Sockets
