RT6259 Series
Manufacturer: Richtek USA Inc.
Beta
⌘K
IC REG BUCK ADJ 3A 16WQFN
| Part | Current - Output | Function | Voltage - Input (Min) [Min] | Synchronous Rectifier | Voltage - Input (Max) [Max] | Topology | Output Configuration | Supplier Device Package | Package / Case | Number of Outputs | Mounting Type | Operating Temperature [Max] | Operating Temperature [Min] | Voltage - Output (Max) [Max] | Frequency - Switching | Output Type | Supplied Contents | Outputs and Type | Outputs and Type | Board Type | Voltage - Input [Max] | Voltage - Input [Min] | Voltage - Output | Main Purpose | Contents | Regulator Topology | Utilized IC / Part |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Richtek USA Inc. | 3 A | Step-Down | 4.5 V | 18 V | Buck | Positive | 16-WQFN (3x3) | 16-WFQFN Exposed Pad | 1 | Surface Mount | 85 C | -40 ¯C | 7 V | 650 kHz | Adjustable | ||||||||||||
Richtek USA Inc. | 3 A | Step-Down | 4.5 V | 18 V | Buck | Positive | 16-WQFN (3x3) | 16-WFQFN Exposed Pad | 1 | Surface Mount | 85 C | -40 ¯C | 7 V | 650 kHz | Adjustable | ||||||||||||

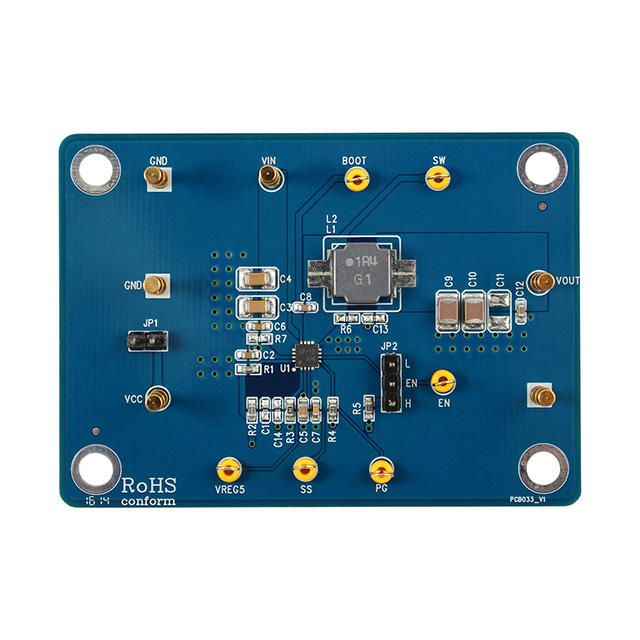

 Richtek USA Inc. | 3 A | 650 kHz | Board(s) | 1 | 1 Non-Isolated Output Non-Isolated | Fully Populated | 18 V | 4.5 V | 1.05 V | DC/DC Step Down | Board(s) | Buck | RT6259B |
