A-CCS 02 Series
Manufacturer: Assmann WSW Components
Beta
⌘K
CONN SOCKET PLCC 28POS GOLD
| Part | Contact Resistance | Current Rating (Amps) | Termination Post Length | Termination Post Length | Material Flammability Rating | Contact Finish - Post | Contact Material - Mating | Number of Positions or Pins (Grid) | Features | Termination | Type | Mounting Type | Pitch - Mating | Pitch - Mating | Contact Material - Post | Housing Material | Contact Finish - Mating | Pitch - Post | Pitch - Post | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions or Pins (Grid) [custom] | Number of Positions or Pins (Grid) [custom] | Contact Finish Thickness - Post | Contact Finish Thickness - Post |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

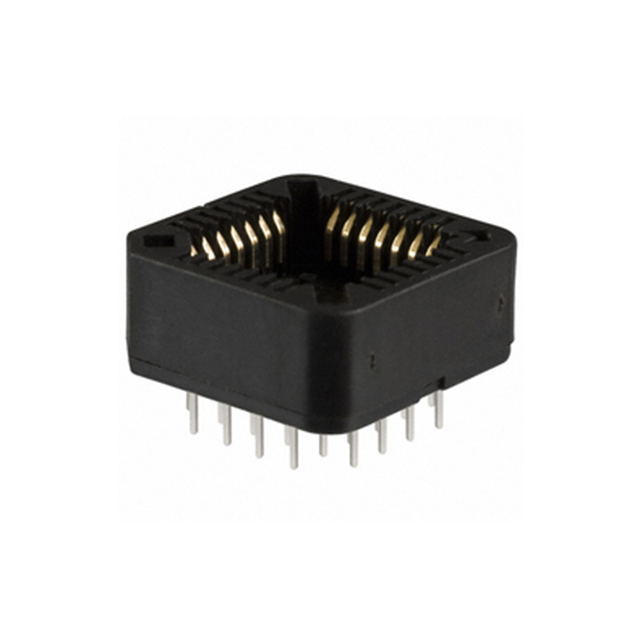

 Assmann WSW Components | 15 mOhm | 1 A | 0.132 " | 3.35 mm | UL94 V-0 | Gold | Phosphor Bronze | 28 | Closed Frame | Solder | PLCC | Through Hole | 1.27 mm | 0.05 in | Phosphor Bronze | Polybutylene Terephthalate (PBT) | Gold | 0.1 in | 2.54 mm | -40 C | 105 ░C | ||||

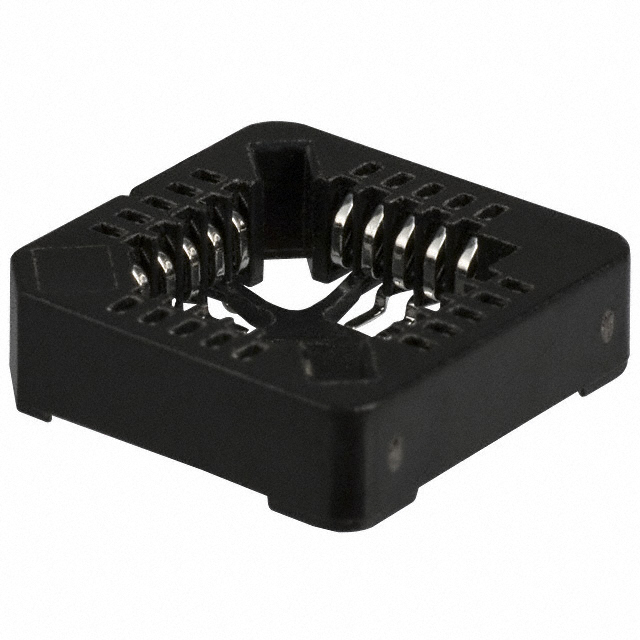

 Assmann WSW Components | 15 mOhm | 1 A | UL94 V-0 | Tin | Phosphor Bronze | 20 | Closed Frame | Solder | PLCC | Surface Mount | 1.27 mm | 0.05 in | Phosphor Bronze | Glass Filled Nylon 9T Polyamide (PA9T) | 0.05 in | 1.27 mm | -40 C | 105 ░C | 5 | 4 | 4.06 µm | 160 µin | |||

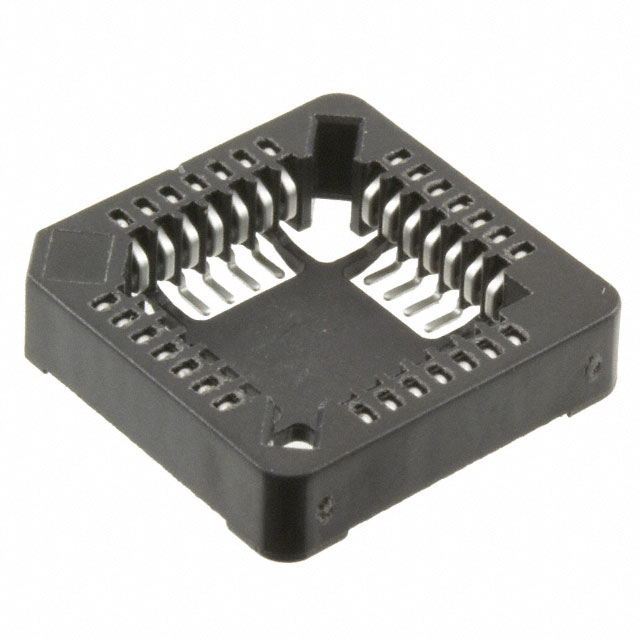

 Assmann WSW Components | 15 mOhm | 1 A | UL94 V-0 | Tin | Phosphor Bronze | 28 | Closed Frame | Solder | PLCC | Surface Mount | 1.27 mm | 0.05 in | Phosphor Bronze | Glass Filled Nylon 9T Polyamide (PA9T) | 0.05 in | 1.27 mm | -40 C | 105 ░C | 4.06 µm | 160 µin |
