10000 Series Series

Slide Switches Miniature Slide Switch

Manufacturer: Littelfuse/Commercial Vehicle Products

Catalog

Slide Switches Miniature Slide Switch

Part	Contact Timing	Voltage Rating - DC	Actuator Length [x]	Termination Style	Switch Travel [custom]	Electrical Life	Current Rating (Amps)	Circuit	Operating Temperature [Max]	Operating Temperature [Min]	Features	Contact Material	Mounting Type	Actuator Type	Voltage Rating - AC	Switch Function	Contact Finish	Actuator Material
Littelfuse/Commercial Vehicle Products 1103M1S3Z3QE3
Littelfuse/Commercial Vehicle Products 1203M2S3AQE3	Not Specified	28 V	4.72 mm	PC Pin	2.16 mm	40000 Cycles	6 A	DPDT	65 °C	-30 ░C	Epoxy Sealed Terminals Red Actuator	Copper	Through Hole Right Angle	Standard	120 V	On-Off-On	Silver	Nylon Polyamide (PA)
Littelfuse/Commercial Vehicle Products 1103M2S3V3BE2	Not Specified	20 V	4.72 mm	PC Pin	2.16 mm	100000 Cycles	0.4 VA	SPDT	65 °C	-30 ░C		Copper	Through Hole	Standard	20 V	On-Off-On	Gold	Nylon Polyamide (PA)
Littelfuse/Commercial Vehicle Products 1101M1S4ZBE2	Not Specified	20 V	7.24 mm	Solder Lug	2.16 mm	100000 Cycles	0.4 VA	SPDT	65 °C	-30 ░C	Black Actuator Epoxy Sealed Terminals	Copper		Standard	20 V	On-On	Gold	Nylon Polyamide (PA)
Littelfuse/Commercial Vehicle Products 1203M1S3ZQE2	Not Specified	28 V	5.08 mm	Solder Lug	2.16 mm	40000 Cycles	6 A	DPDT	65 °C	-30 ░C	Black Actuator Epoxy Sealed Terminals	Copper		Standard	120 V	On-Off-On	Silver	Nylon Polyamide (PA)

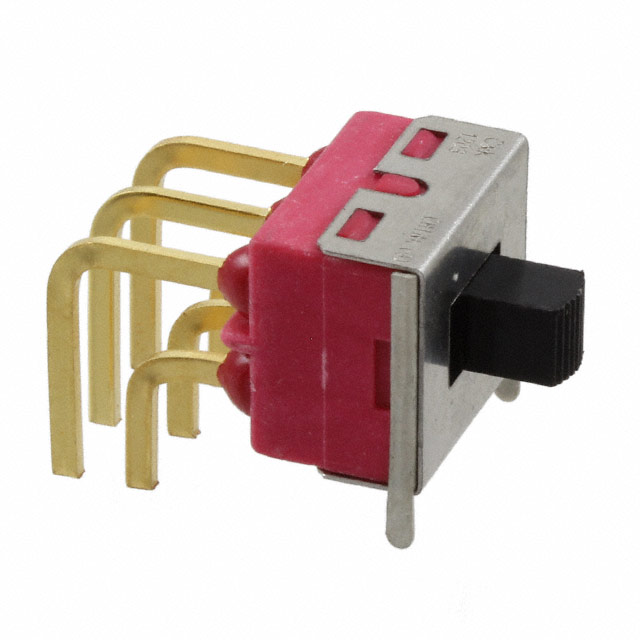

Littelfuse/Commercial Vehicle Products 1203M2S3ABE2	Not Specified	20 V	4.72 mm	PC Pin	2.16 mm	100000 Cycles	0.4 VA	DPDT	65 °C	-30 ░C	Black Actuator Epoxy Sealed Terminals	Copper	Through Hole Right Angle	Standard	20 V	On-Off-On	Gold	Nylon Polyamide (PA)

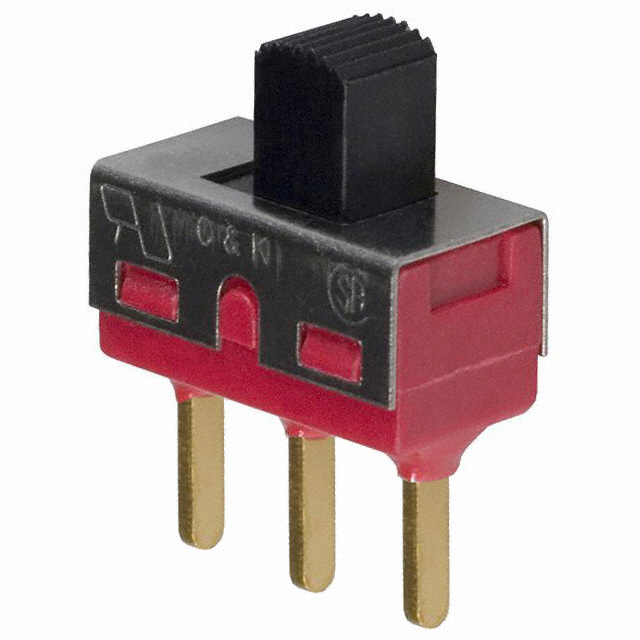

Littelfuse/Commercial Vehicle Products 1101M2S3CBE2	Not Specified	20 V	5.08 mm	PC Pin	2.16 mm	100000 Cycles	0.4 VA	SPDT	65 °C	-30 ░C	Black Actuator Epoxy Sealed Terminals	Copper	Through Hole	Standard	20 V	On-On	Gold	Nylon Polyamide (PA)
Littelfuse/Commercial Vehicle Products 1101M2S4CBE2	Not Specified	20 V	7.24 mm	PC Pin	2.16 mm	100000 Cycles	0.4 VA	SPDT	65 °C	-30 ░C	Black Actuator Epoxy Sealed Terminals	Copper	Through Hole	Standard	20 V	On-On	Gold	Nylon Polyamide (PA)
Littelfuse/Commercial Vehicle Products 1103M2S3AV2QE2	Not Specified	28 V	4.72 mm	PC Pin	2.16 mm	40000 Cycles	6 A	SPDT	65 °C	-30 ░C	Black Actuator Epoxy Sealed Terminals	Copper	Right Angle Through Hole Vertical	Standard	120 V	On-Off-On	Silver	Nylon Polyamide (PA)
Littelfuse/Commercial Vehicle Products 1201M2S3V4QE2	Not Specified	28 V	4.72 mm	PC Pin	2.16 mm	40000 Cycles	6 A	DPDT	65 °C	-30 ░C	Black Actuator Epoxy Sealed Terminals	Copper	Through Hole	Standard	120 V	On-On	Silver	Nylon Polyamide (PA)

Catalog

Slide Switches Miniature Slide Switch

Key Features

• Variety of actuators and terminations

• Panel mount tabs available

• Epoxy terminal-seal compatible with bottom wash cleaning

Description

C&K’s 1000 series miniature slide switches are typically found in applications in the test & measurement equipment, telecommunications and computers & peripherals industries. The 1000 series come in a variety of actuators and terminations, are epoxy terminal-seal compatible with bottom wash cleaning and come with optional panel mount tabs.
