PEN.0F Series

Manufacturer: LEMO

Catalog

CONN RCPT FMALE 5POS GOLD CRIMP

Part	Shielding	Current Rating (Amps)	Color	Insert Material	Cable Opening	Cable Opening	Contact Finish - Mating	Applications	Contact Material	Primary Material	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Number of Positions	Termination	Fastening Type	Material Flammability Rating	Shell Material	Shell Finish	Mounting Feature	Shell Size - Insert	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Orientation	Ingress Protection	Connector Type
LEMO PEN.0F.305.XLM	Shielded	6.5 A	Gray	Polyetheretherketone (PEEK)	0.354 in	9 mm	Gold	Aerospace	Bronze	Metal	1.5 Ám	59 Áin	5	Crimp	Push-Pull	UL94 V-0	Aluminum Alloy	Nickel	Bulkhead - Front Side Nut	305	-15 °C	200 °C	Panel Mount	N (Normal)	IP67 - Dust Tight Waterproof	Receptacle Female Sockets
LEMO PEN.0F.303.XLM	Shielded	8 A	Gray	Polyetheretherketone (PEEK)	0.354 in	9 mm	Gold	Aerospace	Bronze	Metal	1.5 Ám	59 Áin		Crimp	Push-Pull	UL94 V-0	Aluminum Alloy	Nickel	Bulkhead - Front Side Nut	303	-15 °C	200 °C	Panel Mount	N (Normal)	IP67 - Dust Tight Waterproof	Receptacle Female Sockets

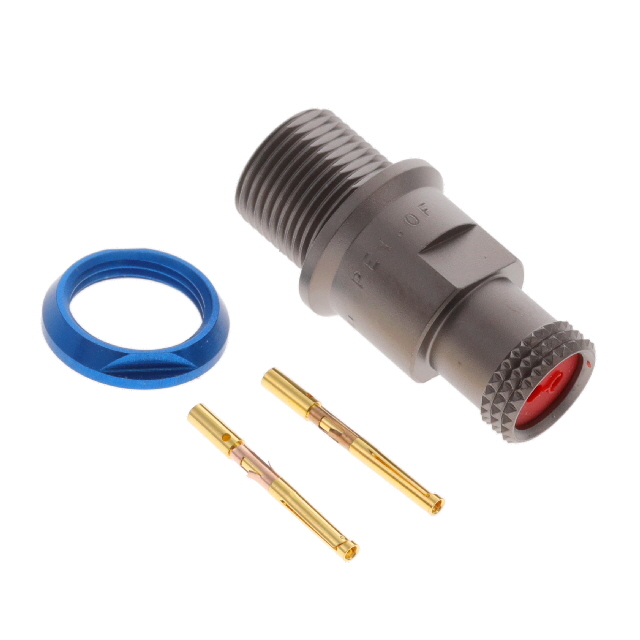

LEMO PEN.0F.302.XLM	Shielded	10 A	Gray	Polyetheretherketone (PEEK)	0.354 in	9 mm	Gold	Aerospace	Bronze	Metal	1.5 Ám	59 Áin	2	Crimp	Push-Pull	UL94 V-0	Aluminum Alloy	Nickel	Bulkhead - Front Side Nut	302	-15 °C	200 °C	Panel Mount	N (Normal)	IP67 - Dust Tight Waterproof	Receptacle Female Sockets
