ADS7040 Series

Ultra-low-power, ultra-small-size SAR ADC, 8 bit, 1 MSPS, single ended

Catalog

Ultra-low-power, ultra-small-size SAR ADC, 8 bit, 1 MSPS, single ended

Part	Number of A/D Converters	Reference Type	Number of Inputs	Supplier Device Package	Data Interface	Sampling Rate (Per Second)	Package / Case	Voltage - Supply, Digital [Min]	Voltage - Supply, Digital [Max]	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Supply, Analog [Min]	Voltage - Supply, Analog [Max]	Number of Bits	Ratio - S/H:ADC	Mounting Type	Configuration	Architecture	Input Type	Package / Case [y]	Package / Case [y]	Utilized IC / Part	Supplied Contents	Input Range [Min]	Input Range [Max]	Power (Typ) @ Conditions
Texas Instruments ADS7040IRUGR	1	Supply	1	8-X2QFN (1.5x1.5)	SPI	1 M	8-XFQFN	1.65 V	3.6 V	125 °C	-40 °C	1.65 V	3.6 V	8	1:1	Surface Mount	S/H-ADC	SAR	Single Ended
Texas Instruments ADS7040IDCUR	1	Supply	1		SPI	1 M	8-VFSOP	1.65 V	3.6 V	125 °C	-40 °C	1.65 V	3.6 V	8	1:1	Surface Mount	S/H-ADC	SAR	Single Ended	2.3 mm	0.091 in

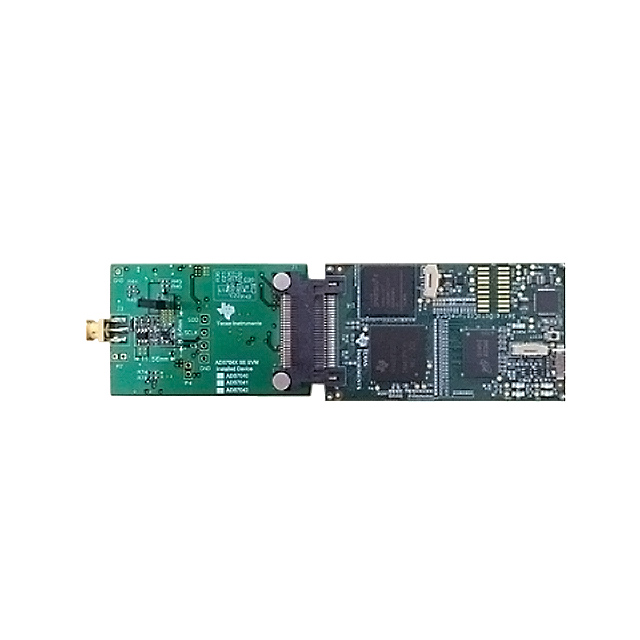

Texas Instruments ADS7040EVM-PDK	1				SPI	1 M								8								ADS7040	Board(s) Cable(s)	0 V	3.6 V	0.171 mW
Texas Instruments ADS7040IDCUT	1	Supply	1		SPI	1 M	8-VFSOP	1.65 V	3.6 V	125 °C	-40 °C	1.65 V	3.6 V	8	1:1	Surface Mount	S/H-ADC	SAR	Single Ended	2.3 mm	0.091 in

Catalog

Ultra-low-power, ultra-small-size SAR ADC, 8 bit, 1 MSPS, single ended

Key Features

• Industry’s First SAR ADC with Nanowatt Power Consumption:171 µW at 1 MSPS with 1.8-V AVDD555 µW at 1 MSPS with 3-V AVDD56 µW at 100 kSPS with 3-V AVDDLess than 1 µW at 1 kSPS with 3-V AVDDIndustry’s Smallest SAR ADC:X2QFN-8 Package with 2.25-mm2Footprint1-MSPS Throughput with Zero Data LatencyWide Operating Range:AVDD: 1.65 V to 3.6 VDVDD: 1.65 V to 3.6 V (Independent of AVDD)Temperature Range: –40°C to 125°CExcellent Performance:8-Bit Resolution with NMC±0.5-LSB (Max) INL, ±0.4-LSB (Max) DNL49 dB SNR–70-dB THDUnipolar Input Range: 0 V to AVDDIntegrated Offset CalibrationSPI™-Compatible Serial Interface: 12 MHzJESD8-7A Compliant Digital I/OIndustry’s First SAR ADC with Nanowatt Power Consumption:171 µW at 1 MSPS with 1.8-V AVDD555 µW at 1 MSPS with 3-V AVDD56 µW at 100 kSPS with 3-V AVDDLess than 1 µW at 1 kSPS with 3-V AVDDIndustry’s Smallest SAR ADC:X2QFN-8 Package with 2.25-mm2Footprint1-MSPS Throughput with Zero Data LatencyWide Operating Range:AVDD: 1.65 V to 3.6 VDVDD: 1.65 V to 3.6 V (Independent of AVDD)Temperature Range: –40°C to 125°CExcellent Performance:8-Bit Resolution with NMC±0.5-LSB (Max) INL, ±0.4-LSB (Max) DNL49 dB SNR–70-dB THDUnipolar Input Range: 0 V to AVDDIntegrated Offset CalibrationSPI™-Compatible Serial Interface: 12 MHzJESD8-7A Compliant Digital I/O

Description

The ADS7040 is a 8-bit, 1-MSPS, analog-to-digital converter (ADC). The device supports a wide analog input voltage range (1.65 V to 3.6 V) and includes a capacitor-based, successive-approximation register (SAR) ADC with an inherent sample-and-hold circuit. The SPI-compatible serial interface is controlled by theCSand SCLK signals. The input signal is sampled with theCSfalling edge and SCLK is used for conversion and serial data output. The device supports a wide digital supply range (1.65 V to 3.6 V), enabling direct interface to a variety of host controllers. The ADS7040 complies with the JESD8-7A standard for a normal DVDD range (1.65 V to 1.95 V). The ADS7040 is available in 8-pin, miniature, leaded, and X2QFN packages and is specified for operation from –40°C to 125°C. Miniature form-factor and extremely low-power consumption make this device suitable for space-constrained, battery-powered applications. The ADS7040 is a 8-bit, 1-MSPS, analog-to-digital converter (ADC). The device supports a wide analog input voltage range (1.65 V to 3.6 V) and includes a capacitor-based, successive-approximation register (SAR) ADC with an inherent sample-and-hold circuit. The SPI-compatible serial interface is controlled by theCSand SCLK signals. The input signal is sampled with theCSfalling edge and SCLK is used for conversion and serial data output. The device supports a wide digital supply range (1.65 V to 3.6 V), enabling direct interface to a variety of host controllers. The ADS7040 complies with the JESD8-7A standard for a normal DVDD range (1.65 V to 1.95 V). The ADS7040 is available in 8-pin, miniature, leaded, and X2QFN packages and is specified for operation from –40°C to 125°C. Miniature form-factor and extremely low-power consumption make this device suitable for space-constrained, battery-powered applications.
