10087937 Series
Manufacturer: Amphenol ICC (FCI)
Beta
⌘K

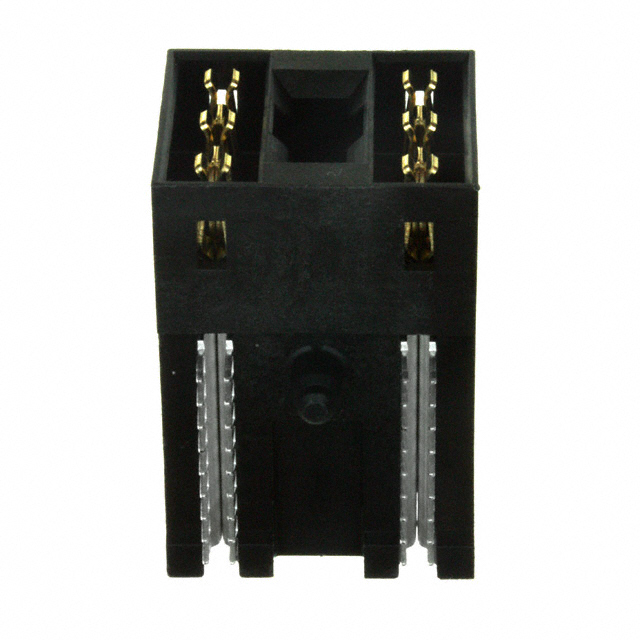

CONN HEADER BLADE PWR 2POS PCB
| Part | Operating Temperature [Max] | Operating Temperature [Min] | Material Flammability Rating | Current Rating (Amps) | Number of Positions Loaded | Connector Type | Number of Positions | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Connector Style | Termination | Color | Mounting Type | Contact Layout, Typical | Features | Voltage Rating | Pitch | Pitch | Number of Rows |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Amphenol ICC (FCI) | 105 ░C | -65 ░C | UL94 V-0 | 75 A | All | Header Male Blades | 2 | Gold Gold GXT™ | 30 Áin | 0.76 Ám | Blade Power | Solder | Black | Right Angle Through Hole | 2 Power | Board Guide | ||||
 Amphenol ICC (FCI) | 105 ░C | -65 ░C | UL94 V-0 | 75 A | All | Header Male Blades | 2 | 30 Áin | 0.76 Ám | Blade Power | Press-Fit | Black | Right Angle Through Hole | 2 Power | Board Guide | 800 V | 14.6 mm | 0.575 in | 1 |
