5580202 Series

Manufacturer: DIALIGHT

Catalog

IND SNAP-IN PANEL MNT 565NM GRN

Part	Lens Size	Lens Size	Ratings	Lens Style	Millicandela Rating	Voltage	Lens Color	Current	Viewing Angle	Panel Cutout Shape	Panel Cutout Dimensions	Panel Cutout Dimensions	Lamp Color	Lens Transparency	Wavelength - Peak	Type	Termination Style	Termination Style	Termination Style

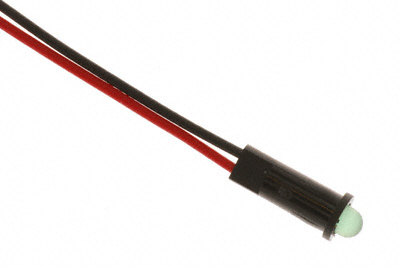

DIALIGHT 5580202007F	3 mm	T-1	DC	Round with Domed Top	8 mcd	5 V	Green	12 mA	60 °	Round	0.16 in	4.06 mm	Green	Diffused	565 nm	LED	Wire Leads	14 in	355.6 mm
DIALIGHT 5580202027F	3 mm	T-1	DC	Round with Domed Top	19 mcd	5 V		12 mA	60 °	Round	0.16 in	4.06 mm	Green		565 nm	LED	Wire Leads	14 in	355.6 mm
DIALIGHT 5580202806F	3 mm	T-1	DC	Round with Domed Top	19 mcd	5 V		12 mA	60 °	Round	0.16 in	4.06 mm	Green		565 nm	LED

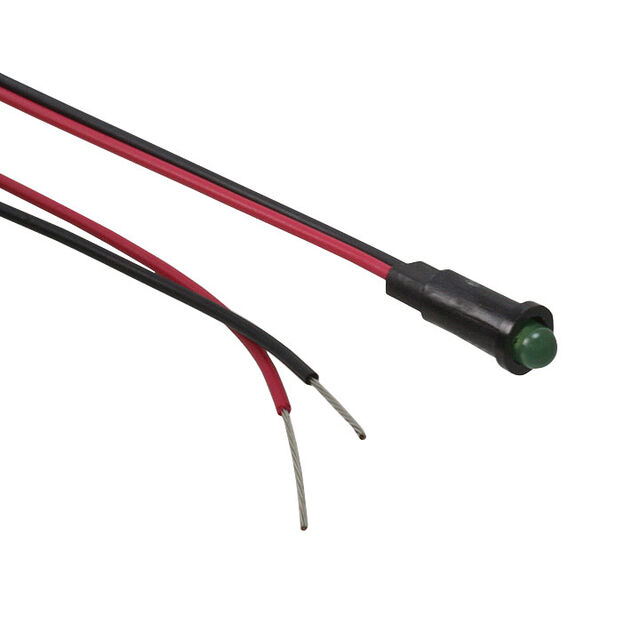

DIALIGHT 5580202023F	3 mm	T-1	DC	Round with Domed Top	19 mcd	5 V		12 mA	60 °	Round	0.16 in	4.06 mm	Green		565 nm	LED
DIALIGHT 5580202003F	3 mm	T-1	DC	Round with Domed Top	19 mcd	5 V		10 mA	60 °	Round	0.16 in	4.06 mm	Green		565 nm	LED

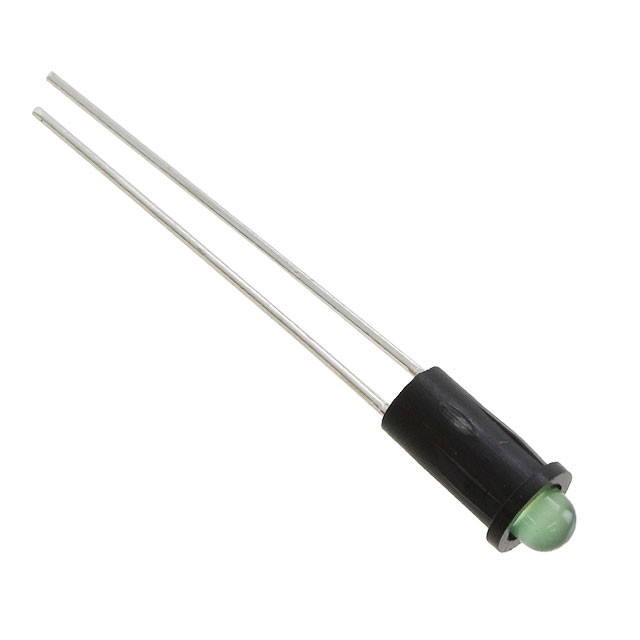

DIALIGHT 5580202001F	3 mm	T-1	DC	Round with Domed Top	19 mcd	5 V		10 mA	60 °	Round	0.16 in	4.06 mm	Green		565 nm	LED	Wire Wrap
