WLS27CWG Series
Manufacturer: BANNER ENGINEERING
Beta
⌘K

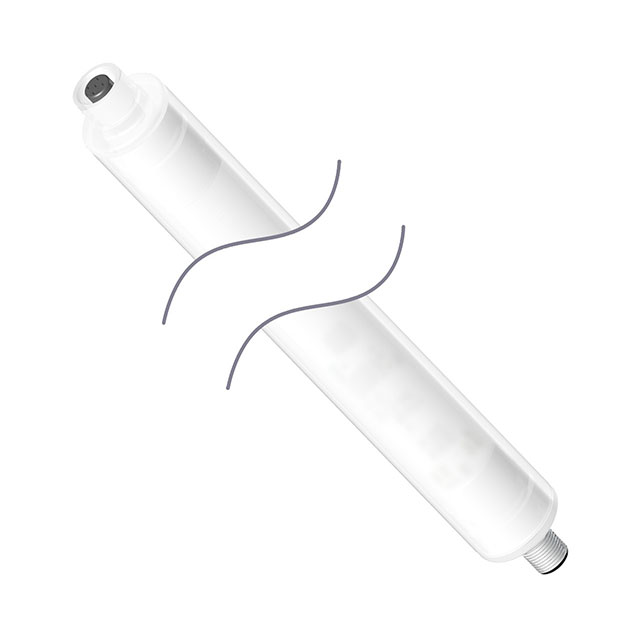

MULTICOLOR LIGHT STRIP 570MM
| Part | Profile (W x H) | Profile (W x H) | Termination Style | Approval Agency | Housing Material | Luminous Flux [custom] | Luminous Flux [custom] | Features | Illumination Color | Length [x] | Length [x] | Ingress Protection | Voltage - Supply [Min] | Voltage - Supply [Max] | Lens Type | Operating Temperature [Max] | Operating Temperature [Min] | Length | Length | Luminous Flux [custom] | Luminous Flux [custom] | Luminous Flux [custom] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 BANNER ENGINEERING | 1.06 " | 27 mm | Connector (M12) | CE cULus | Aluminum (Al) | 1300 lm | 800 lm | Cascadable | Green Red | 570 mm | 22.44 in | IP66 IP67 IP69K | 12 VDC | 30 VDC | Tubular Diffused | 70 °C | -40 C | |||||
BANNER ENGINEERING | 1.06 " | 27 mm | Connector (M12) | CE cULus | Aluminum (Al) | 16000 lm | 740 lm | Cascadable | Blue Green Red White Yellow | IP66 IP67 IP69K | 12 VDC | 30 VDC | Tubular Diffused | 70 °C | -40 C | 1130 mm | 44.49 in | 2280 lm | 2600 lm | 500 lm | ||
BANNER ENGINEERING | 1.06 " | 27 mm | Connector (M12) | CE cULus | Aluminum (Al) | 800 lm | 370 lm | Cascadable | Blue Green Red White Yellow | 570 mm | 22.44 in | IP66 IP67 IP69K | 12 VDC | 30 VDC | Tubular Diffused | 70 °C | -40 C | 1140 lm | 1300 lm | 250 lm | ||
BANNER ENGINEERING | 1.06 " | 27 mm | Connector (M12) | CE cULus | Aluminum (Al) | 1200 lm | 555 lm | Cascadable | Blue Green Red White Yellow | IP66 IP67 IP69K | 12 VDC | 30 VDC | Tubular Diffused | 70 °C | -40 C | 1710 lm | 1950 lm | 470 lm | ||||
BANNER ENGINEERING | 1.06 " | 27 mm | Connector (M12) | CE cULus | Aluminum (Al) | 400 lm | 185 lm | Cascadable | Blue Green Red White Yellow | IP66 IP67 IP69K | 12 VDC | 30 VDC | Tubular Diffused | 70 °C | -40 C | 570 lm | 650 lm | 125 lm | ||||
BANNER ENGINEERING | 1.06 " | 27 mm | Connector (M12) | CE cULus | Aluminum (Al) | 1300 lm | 800 lm | Cascadable | Green Red White | IP66 IP67 IP69K | 12 VDC | 30 VDC | Tubular Diffused | 70 °C | -40 C | 1130 mm | 44.49 in |
