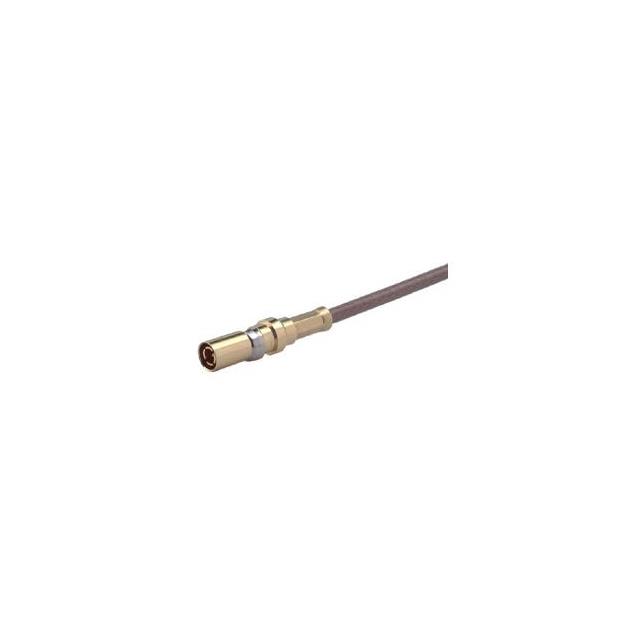

11_1023-C50 Series
Manufacturer: Huber+Suhner, Inc.
Coming soon—Zenode’s new Cross Ref’s tool! RSVP for the webinar here to get early access
Beta
⌘K
11_1023-C50-2-3/111_NH
| Part | Contact Termination | Center Contact Material | Cable Group | Housing Color | Mounting Type | Connector Style | Number of Ports | Fastening Type | Shield Termination | Connector Type | Impedance | Frequency - Max | Body Material | Body Finish | Center Contact Plating | Operating Temperature (Max) | Operating Temperature (Min) | Voltage Rating | Dielectric Material | Mating Cycles |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Huber+Suhner, Inc. | Crimp | Brass | 188 316 RG-174 | Gold | Free Hanging (In-Line) | 1.0/2.3 | 1 | Threaded | Crimp | Male Pin Plug | 50 Ohm | 4 GHz | Beryllium Copper | Gold | Gold | 125 °C | -55 °C | 250 V | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | 500 cycles |
 Huber+Suhner, Inc. | Crimp | Brass | RD-316 | Gold | Free Hanging (In-Line) | 1.0/2.3 | 1 | Threaded | Crimp | Male Pin Plug | 50 Ohm | 4 GHz | Beryllium Copper | Gold | Gold | 125 °C | -55 °C | 250 V | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | 500 cycles |
Huber+Suhner, Inc. | Crimp | Brass | RD-316 | Gold | Free Hanging (In-Line) | 1.0/2.3 | 1 | Threaded | Crimp | Male Pin Plug | 50 Ohm | 4 GHz | Beryllium Copper | Gold | Gold | 125 °C | -55 °C | 250 V | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | 500 cycles |
 Huber+Suhner, Inc. | Crimp | Brass | RD-316 | Gold | Free Hanging (In-Line) | 1.0/2.3 | 1 | Threaded | Crimp | Male Pin Plug | 50 Ohm | 4 GHz | Gold | Gold | 125 °C | -55 °C | 250 V | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | 500 cycles | |
 Huber+Suhner, Inc. | Crimp | Brass | RD-316 | Gold | Free Hanging (In-Line) | 1.0/2.3 | 1 | Threaded | Crimp | Male Pin Plug | 50 Ohm | 4 GHz | Brass | Gold | Gold | 125 °C | -55 °C | 250 V | Perfluoroalkoxy (PFA) Polytetrafluoroethylene (PTFE) | 500 cycles |
