EDZ950 Series

Catalog

TERM BLOCK PLUG 16POS STR 5.08MM

Part	Contact Material	Housing Material	Wire Strip Length	Torque - Screw	Torque - Screw	Material Flammability Rating	Wire Gauge or Range - mm˛	Operating Temperature [Min]	Operating Temperature [Max]	Number of Levels	Positions Per Level	Type	Mounting Type	Voltage - UL	Number of Positions	Pitch	Pitch	Termination Style	Wire Gauge or Range - AWG [Max]	Wire Gauge or Range - AWG [Min]	Wire Gauge or Range - mm²	Color	Positions Per Level [custom]
On Shore Technology Inc. EDZ950/16	Copper	Polyamide (PA) Nylon	6 mm	4.4 Lb-In	0.5 Nm	UL94 V-0	2.5 mm˛	-30 ░C	105 ░C	1	16	Plug Female Sockets	Free Hanging (In-Line)	300 V	16	5.08 mm	0.2 in	Screw	22 AWG	12 AWG	2.5 mm²	Green
On Shore Technology Inc. EDZ950/7	Copper	Polyamide (PA) Nylon	6 mm	4.4 Lb-In	0.5 Nm	UL94 V-0	2.5 mm˛	-30 ░C	105 ░C	1		Plug Female Sockets	Free Hanging (In-Line)	300 V	7	5.08 mm	0.2 in	Screw	22 AWG	12 AWG	2.5 mm²	Green	7
On Shore Technology Inc. EDZ950/2M113										1	2	Plug Female Sockets	Free Hanging (In-Line)	300 V	2	5.08 mm	0.2 in	Screw	22 AWG	12 AWG	2.5 mm²
On Shore Technology Inc. EDZ950/4M114							2.5 mm˛			1	4	Plug Female Sockets	Free Hanging (In-Line)	300 V	4	5.08 mm	0.2 in	Screw	22 AWG	12 AWG	2.5 mm²
On Shore Technology Inc. EDZ950/20	Copper	Polyamide (PA) Nylon	6 mm	4.4 Lb-In	0.5 Nm	UL94 V-0	2.5 mm˛	-30 ░C	105 ░C	1	20	Plug Female Sockets	Free Hanging (In-Line)	300 V	20	5.08 mm	0.2 in	Screw	22 AWG	12 AWG	2.5 mm²	Green
On Shore Technology Inc. EDZ950/6	Copper	Polyamide (PA) Nylon	6 mm	4.4 Lb-In	0.5 Nm	UL94 V-0	2.5 mm˛	-30 ░C	105 ░C	1	6	Plug Female Sockets	Free Hanging (In-Line)	300 V	6	5.08 mm	0.2 in	Screw	22 AWG	12 AWG	2.5 mm²	Green
On Shore Technology Inc. EDZ950/18	Copper	Polyamide (PA) Nylon	6 mm	4.4 Lb-In	0.5 Nm	UL94 V-0		-30 ░C	105 ░C	1	18	Plug Female Sockets	Free Hanging (In-Line)	300 V	18	5.08 mm	0.2 in	Screw	22 AWG	12 AWG	2.5 mm²	Green
On Shore Technology Inc. EDZ950/24	Copper	Polyamide (PA) Nylon	6 mm	4.4 Lb-In	0.5 Nm	UL94 V-0	2.5 mm˛	-30 ░C	105 ░C	1		Plug Female Sockets	Free Hanging (In-Line)	300 V	24	5.08 mm	0.2 in	Screw	22 AWG	12 AWG	2.5 mm²	Green	24
On Shore Technology Inc. EDZ950/9	Copper	Polyamide (PA) Nylon	6 mm	4.4 Lb-In	0.5 Nm	UL94 V-0	2.5 mm˛	-30 ░C	105 ░C	1	9	Plug Female Sockets	Free Hanging (In-Line)	300 V	9	5.08 mm	0.2 in	Screw	22 AWG	12 AWG	2.5 mm²	Green

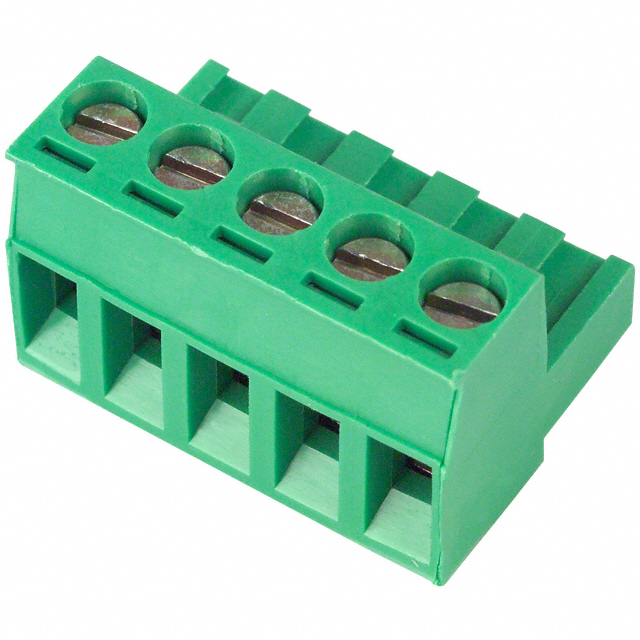

On Shore Technology Inc. EDZ950/5	Copper	Polyamide (PA) Nylon	6 mm	4.4 Lb-In	0.5 Nm	UL94 V-0	2.5 mm˛	-30 ░C	105 ░C	1	5	Plug Female Sockets	Free Hanging (In-Line)	300 V	5	5.08 mm	0.2 in	Screw	22 AWG	12 AWG	2.5 mm²	Green
