ZDX080 Series

Catalog

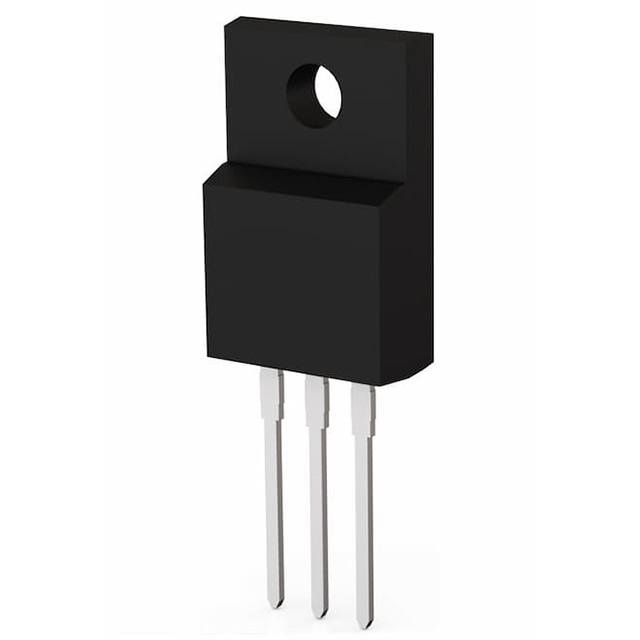

MOSFET N-CH 500V 8A TO220FM

Part	Drain to Source Voltage (Vdss)	Mounting Type	Input Capacitance (Ciss) (Max) @ Vds	Power Dissipation (Max)	Technology	FET Type	Gate Charge (Qg) (Max) @ Vgs	Rds On (Max) @ Id, Vgs	Supplier Device Package	Drive Voltage (Max Rds On, Min Rds On)	Operating Temperature	Vgs (Max)	Current - Continuous Drain (Id) @ 25°C	Package / Case
Rohm Semiconductor ZDX080N50	500 V	Through Hole	1120 pF	40 W	MOSFET (Metal Oxide)	N-Channel	23 nC	850 mOhm	TO-220FM	10 V	150 °C	30 V	8 A	TO-220-3 Full Pack
