000918 Series

Manufacturer: Molex

Catalog

093 WAFERCON PCB CONN MIXTERM

Part	Applications	Insulation Height	Insulation Height	Connector Type	Contact Length - Post	Contact Length - Post	Shrouding	Style	Row Spacing - Mating [x]	Row Spacing - Mating [x]	Number of Rows [custom]	Material Flammability Rating	Mounting Type	Pitch - Mating	Pitch - Mating	Contact Type	Number of Positions Loaded	Insulation Material	Termination	Contact Finish - Post	Number of Positions	Contact Shape	Fastening Type	Insulation Color	Number of Positions Loaded	Number of Rows
Molex 0009185121

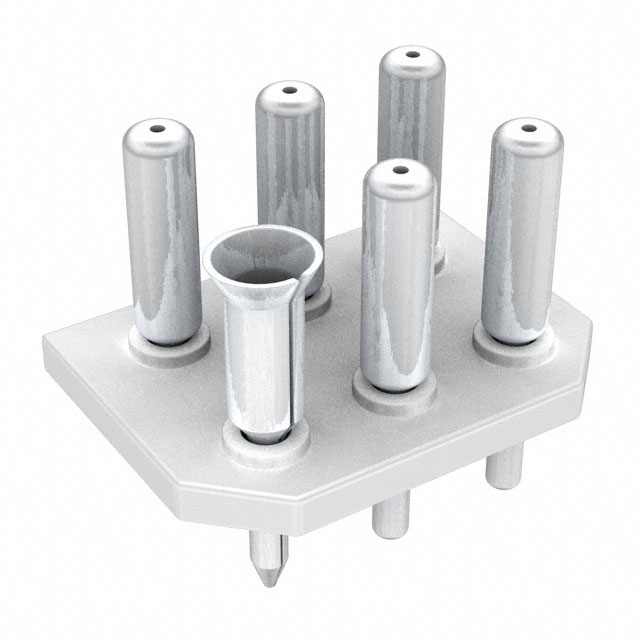

Molex 0009185069	General Purpose Telecommunications	0.093 in	2.38 mm	Header	4.37 mm	0.172 in	Unshrouded	Board to Cable/Wire	0.198 in	5.03 mm	2	UL94 V-0	Through Hole	5.03 mm	0.198 in	Female Socket Male Pin	All	Nylon 6/6 Polyamide (PA66)	Solder	Tin	6	Circular	Push-Pull	Natural

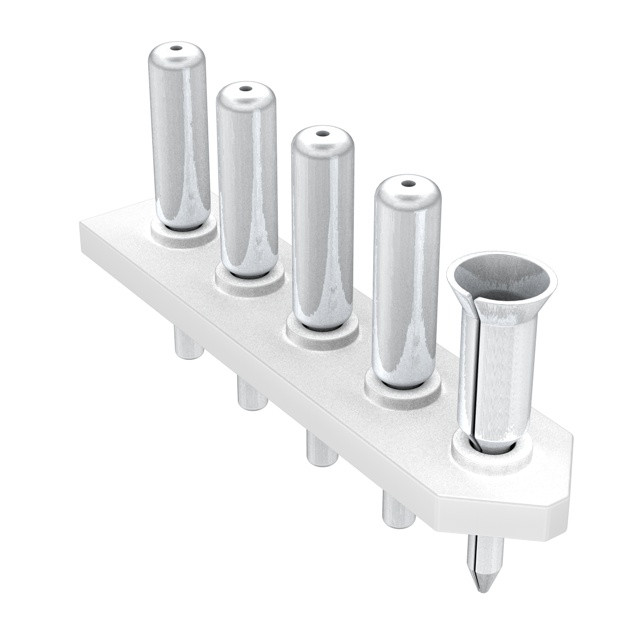

Molex 0009185954	General Purpose Telecommunications	0.093 in	2.38 mm	Header	4.37 mm	0.172 in	Unshrouded	Board to Cable/Wire				UL94 V-0	Through Hole	5.03 mm	0.198 in	Female Socket Male Pin		Nylon 6/6 Polyamide (PA66)	Solder	Tin	5	Circular	Push-Pull	Natural	3	1

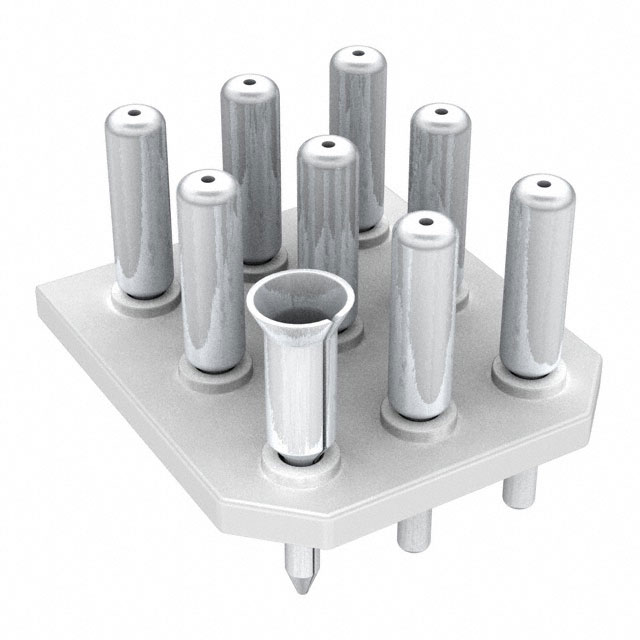

Molex 0009185098	General Purpose Telecommunications	0.093 in	2.38 mm	Header	4.37 mm	0.172 in	Unshrouded	Board to Cable/Wire	0.198 in	5.03 mm	3	UL94 V-0	Through Hole	5.03 mm	0.198 in	Female Socket Male Pin	All	Nylon 6/6 Polyamide (PA66)	Solder	Tin	9	Circular	Push-Pull	Natural
