C14610B010 Series

Catalog

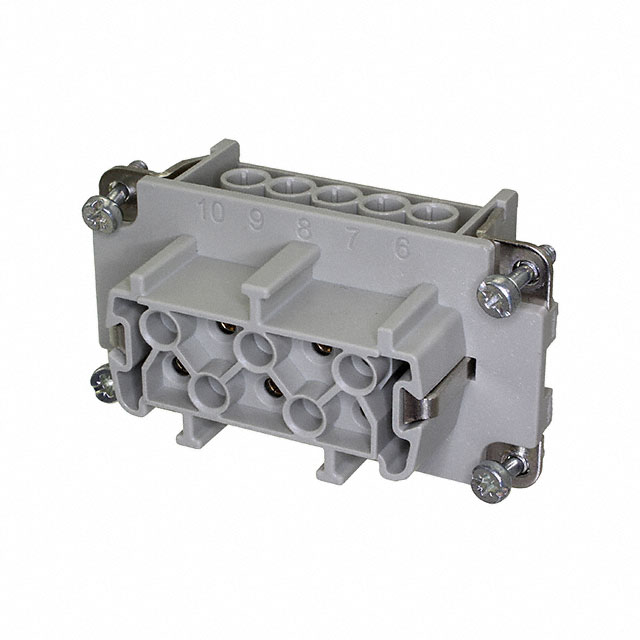

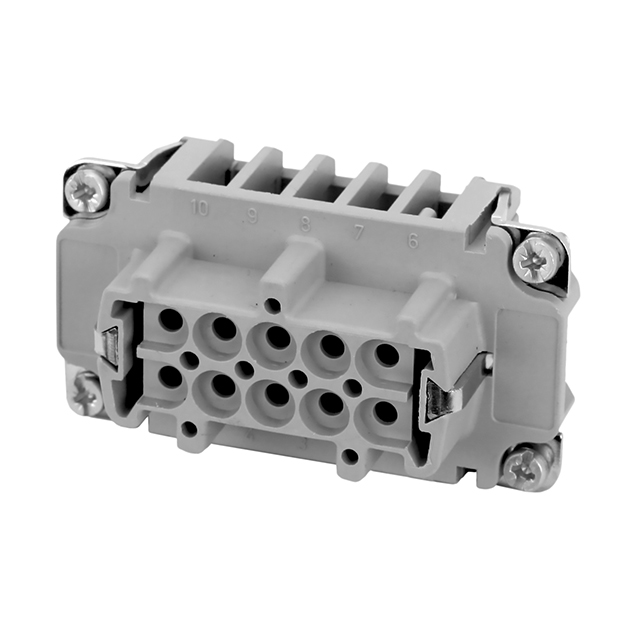

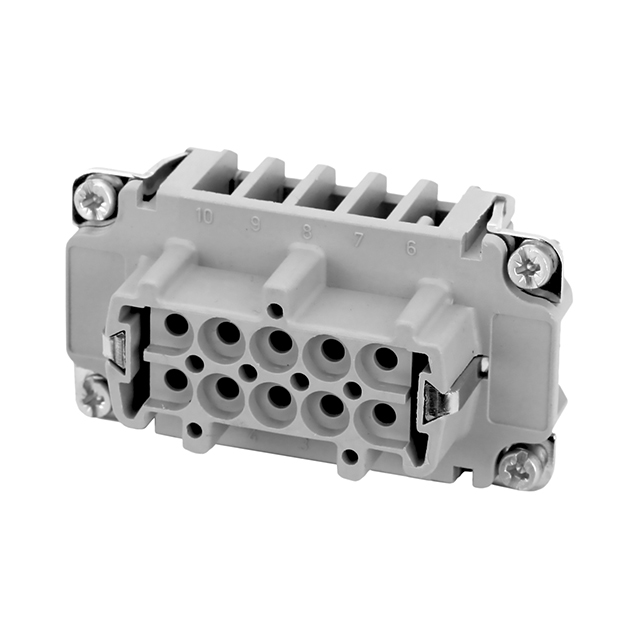

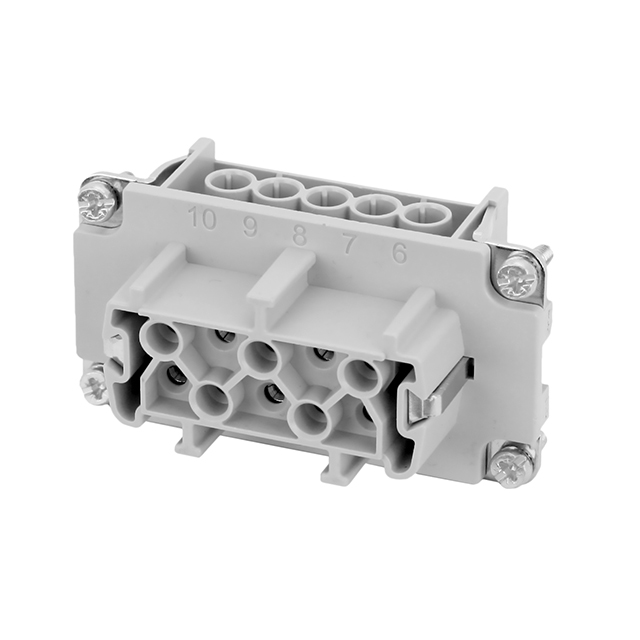

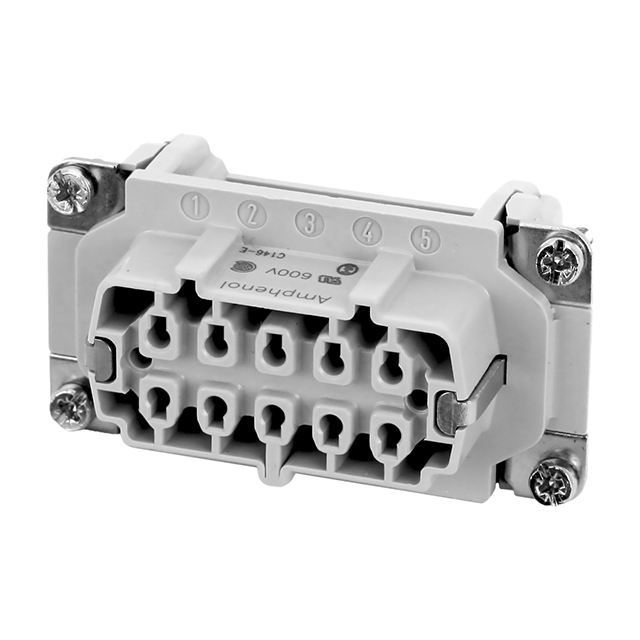

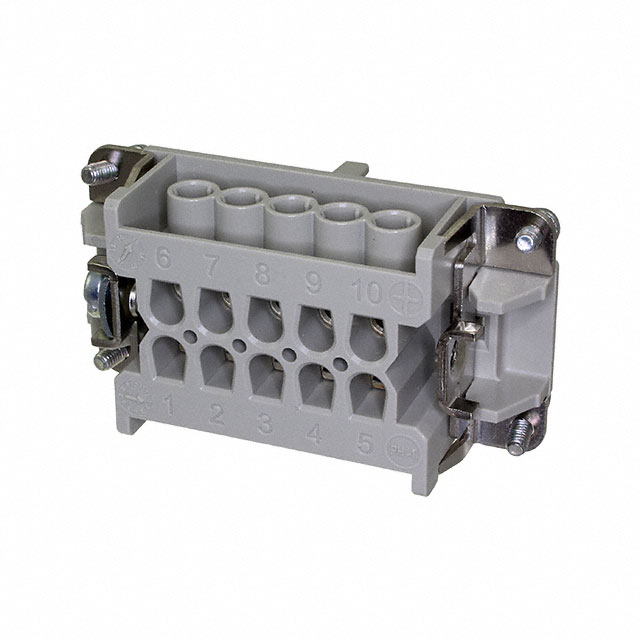

INSERT FEMALE 10POS+1GND CRIMP

Part	Color	Housing Material	Material Flammability Rating	Gender	Contact Type	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]	Size	Connector Type	Termination Style	Current Rating (Amps)	Number of Positions	Contact Material	Contact Finish	Contact Material [custom]	Contact Material [custom]
Amphenol Tuchel Industrial C14610B0105001	Gray	Glass Filled Polycarbonate (PC)	UL94 V-0	Female	heavy\|mate® C146 E EE	600 V	125 °C	-40 C	E10	Insert without Contacts	Crimp	10 A	10+Ground
Amphenol Tuchel Industrial C14610B0100024		Polybutylene Terephthalate (PBT)	UL94 V-0	Female		250 V	100 °C	-40 C	A10	Insert	Screw	14 A	10+Ground	Brass	Silver

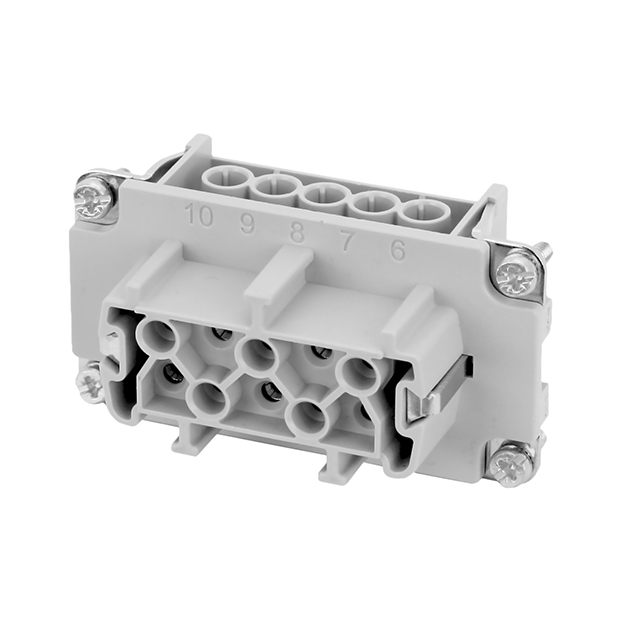

Amphenol Tuchel Industrial C14610B0108101	Gray	Polyamide (PA) Nylon	UL94 V-0	Female			100 °C	-40 C		Insert	Screw		10+Ground			FE/KO	Iron-Constantan
Amphenol Tuchel Industrial C14610B0100001	Gray	Glass Filled Polycarbonate (PC)	UL94 V-0	Female	C 16-3	600 V	125 °C	-40 C	E10	Insert without Contacts	Crimp	10 A	10+Ground
Amphenol Tuchel Industrial C14610B0100021	Gray	Glass Filled Polycarbonate (PC)	UL94 V-0	Female		600 V	125 °C	-40 C	E10	Insert	Screw	10 A	10+Ground	Brass	Silver
Amphenol Tuchel Industrial C14610B01050010	Gray	Polycarbonate (PC)	UL94 V-0	Female	heavy\|mate® C146 E EE	600 V	100 °C	-40 C		Insert without Contacts	Crimp	16 A	10+Ground
Amphenol Tuchel Industrial C14610B0101021	Gray	Glass Filled Polycarbonate (PC)	UL94 V-0	Female		600 V	125 °C	-40 C	E10	Insert	Screw	10 A	10+Ground	Brass	Silver
