737-015 Series
Manufacturer: EDAC Inc.
Beta
⌘K

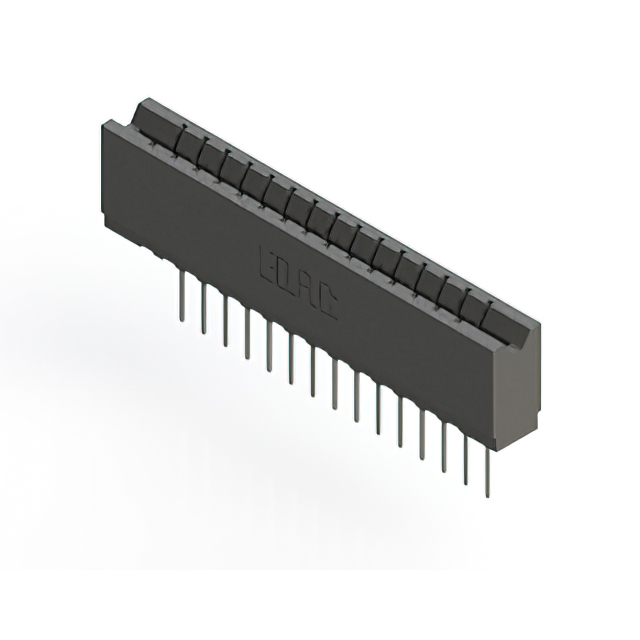

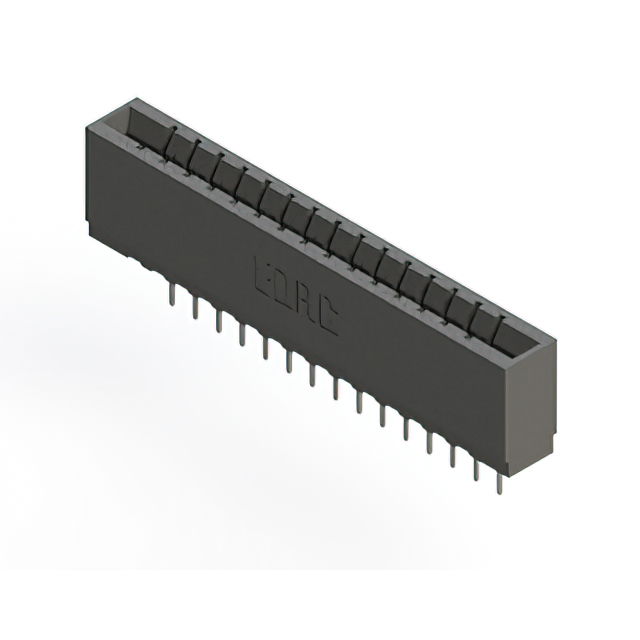

CONN EDGE SGL FMALE 15POS 0.156
| Part | Termination Rows | Material - Insulation | Pitch | Pitch | Card Type | Operating Temperature [Min] | Operating Temperature [Max] | Number of Positions/Bay/Row | Gender | Color | Mounting Type | Card Thickness [Max] | Card Thickness [Min] | Number of Rows | Contact Material | Contact Finish | Contact Finish Thickness | Contact Finish Thickness | Read Out | Number of Positions | Termination | Contact Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Polyester Thermoplastic | 3.96 mm | 0.156 in | Non Specified - Single Edge | -40 C | 105 ░C | 15 | Female | Black | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | Copper Alloy | Gold | 30 Áin | 0.76 Ám | Single | 15 | Press-Fit | Cantilever |
 EDAC Inc. | 1 | Polyester Thermoplastic | 3.96 mm | 0.156 in | Non Specified - Single Edge | -40 C | 105 ░C | 15 | Female | Black | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | Copper Alloy | Gold | 30 Áin | 0.76 Ám | Single | 15 | Press-Fit | Cantilever |
 EDAC Inc. | 1 | Polyester Thermoplastic | 3.96 mm | 0.156 in | Non Specified - Single Edge | -40 C | 105 ░C | 15 | Female | Black | Through Hole | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 1 | Copper Alloy | Gold | 30 Áin | 0.76 Ám | Single | 15 | Press-Fit Wire Wrap | Cantilever |
