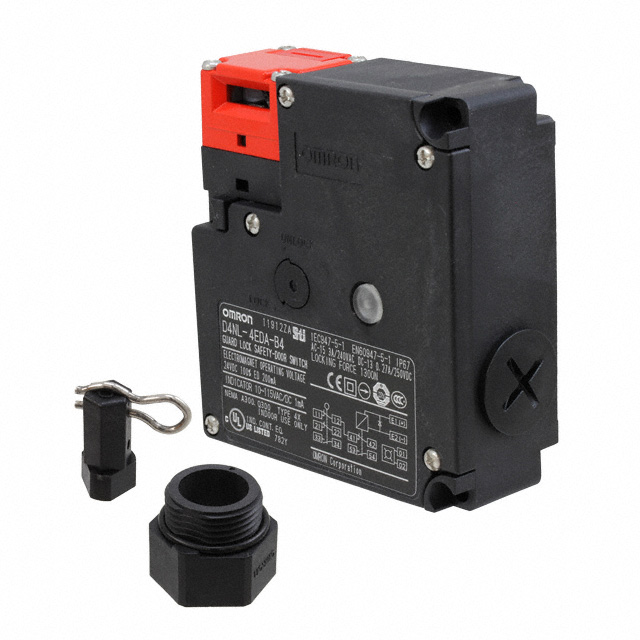

D4NL-4E Series

Manufacturer: Omron Automation and Safety

Catalog

INTERLOCK SOLENOID RELEASE 3PST

Part	Type	Holding Force	Termination Style	Voltage - Supply	Ingress Protection	Approval Agency	Current Rating (Amps)	Circuit	Actuator Type	Features	Voltage Rating	Operating Temperature [Max]	Operating Temperature [Min]
Omron Automation and Safety D4NL-4EFA-B4-NPT	Solenoid Release	133 kgf	Screw Terminal	24 V	IP67 - Dust Tight Waterproof	CCC CE cULus TUV	3 A 270 mA	3PST-2NC/1NO + DPST-NO/NC	Panel Disconnect	Status Indicator	240 VAC 250 V	55 °C	-10 °C
Omron Automation and Safety D4NL-4EDA-B4-NPT	Solenoid Release	133 kgf	Screw Terminal	24 V	IP67 - Dust Tight Waterproof	CCC CE cULus TUV	3 A 270 mA	3PST-2NC/1NO + DPST-NO/NC	Panel Disconnect	Status Indicator	240 VAC 250 V	55 °C	-10 °C
Omron Automation and Safety D4NL-4EDH-B	Solenoid Locking	133 kgf	Screw Terminal	110 VAC/DC	IP67 - Dust Tight Waterproof	CCC CE cULus TUV	3 A 270 mA	3PST-2NC/1NO + DPST-NO/NC	Panel Disconnect	Status Indicator	240 VAC 250 V	55 °C	-10 °C
Omron Automation and Safety D4NL-4EDB-B

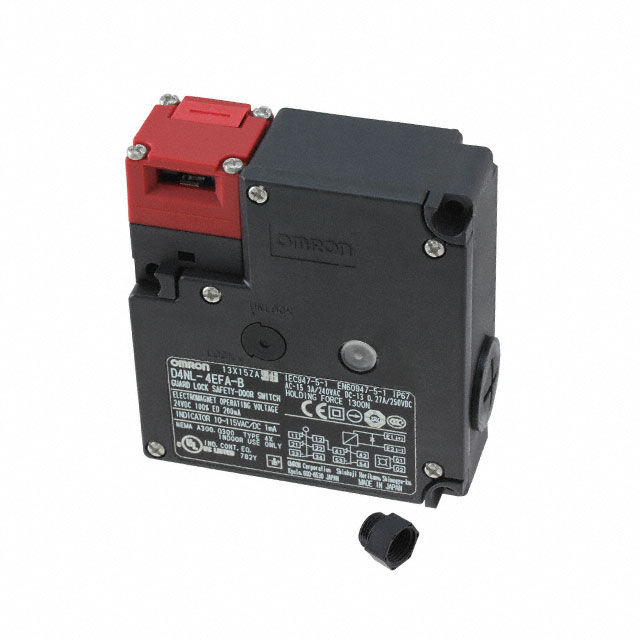

Omron Automation and Safety D4NL-4EFA-B-NPT	Solenoid Release	133 kgf	Screw Terminal	24 V	IP67 - Dust Tight Waterproof	CCC CE cULus TUV	3 A 270 mA	3PST-2NC/1NO + DPST-NO/NC	Panel Disconnect	Status Indicator	240 VAC 250 V	55 °C	-10 °C
Omron Automation and Safety D4NL-4EDA-B	Solenoid Release	133 kgf	Screw Terminal	24 V	IP67 - Dust Tight Waterproof	CCC CE cULus TUV	3 A 270 mA	3PST-2NC/1NO + DPST-NO/NC	Panel Disconnect	Status Indicator	240 VAC 250 V	55 °C	-10 °C
Omron Automation and Safety D4NL-4EFA-B4	Solenoid Release	133 kgf	Screw Terminal	24 V	IP67 - Dust Tight Waterproof	CCC CE cULus TUV	3 A 270 mA	3PST-2NC/1NO + DPST-NO/NC	Panel Disconnect	Status Indicator	240 VAC 250 V	55 °C	-10 °C
Omron Automation and Safety D4NL-4EDG-B4	Solenoid Locking	133 kgf	Screw Terminal	24 V	IP67 - Dust Tight Waterproof	CCC CE cULus TUV	3 A 270 mA	3PST-2NC/1NO + DPST-NO/NC	Panel Disconnect	Status Indicator	240 VAC 250 V	55 °C	-10 °C
Omron Automation and Safety D4NL-4EDA-B4S-NPT	Solenoid Release	133 kgf	Screw Terminal	24 V	IP67 - Dust Tight Waterproof	CCC CE cULus TUV	3 A 270 mA	3PST-2NC/1NO + DPST-NO/NC	Panel Disconnect	Status Indicator	240 VAC 250 V	55 °C	-10 °C
Omron Automation and Safety D4NL-4EFG-B	Solenoid Locking	133 kgf	Screw Terminal	24 V	IP67 - Dust Tight Waterproof	CCC CE cULus TUV	3 A 270 mA	3PST-2NC/1NO + DPST-NO/NC	Panel Disconnect	Status Indicator	240 VAC 250 V	55 °C	-10 °C
