320551 Series

Catalog

PIDG R 22-16 COMM 22-18 MIL 8

Part	Terminal Type	Width - Outer Edges [y]	Width - Outer Edges [y]	Color	Mounting Type	Length - Overall [x]	Length - Overall [x]	Features	Termination	Insulation	Thickness	Thickness	Material - Insulation	Wire Gauge [Max]	Wire Gauge [Min]	Insulation Diameter [Min] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Max] [diameter]	Insulation Diameter [Min] [diameter]	Contact Finish	Stud/Tab Size	Contact Material	Wire Gauge
TE Connectivity Raychem Cable Protection 1-320551-1	Circular	7.92 mm	0.312 in	Red	Free Hanging (In-Line)	0.844 "	21.44 mm	Serrated Termination	Crimp	Insulated	0.031 in	0.79 mm	Nylon Polyamide (PA)	22 AWG	16 AWG	2.03 mm	3.18 mm	0.125 "	0.08 in	Tin	8 Stud	Copper

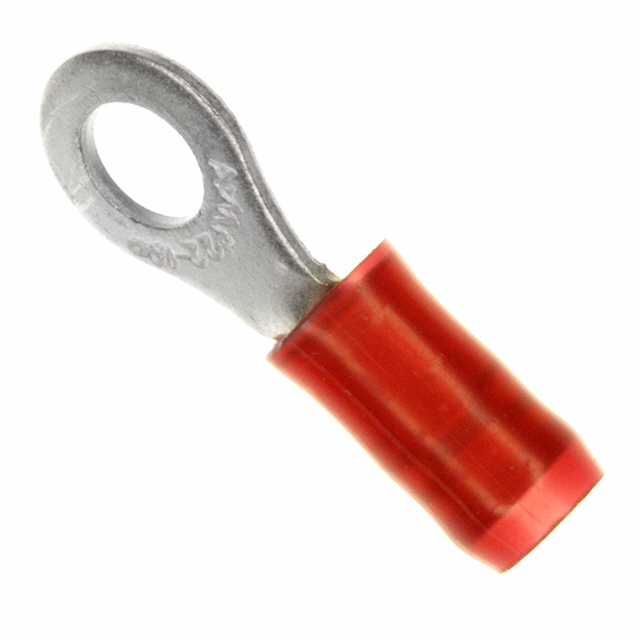

TE Connectivity Raychem Cable Protection 6-320551-1	Circular	7.92 mm	0.312 in	Red	Free Hanging (In-Line)	0.844 "	21.44 mm	Serrated Termination	Crimp	Insulated	0.031 in	0.79 mm	Nylon Polyamide (PA)	22 AWG	16 AWG	2.03 mm	3.18 mm	0.125 "	0.08 in	Tin	8 Stud	Copper

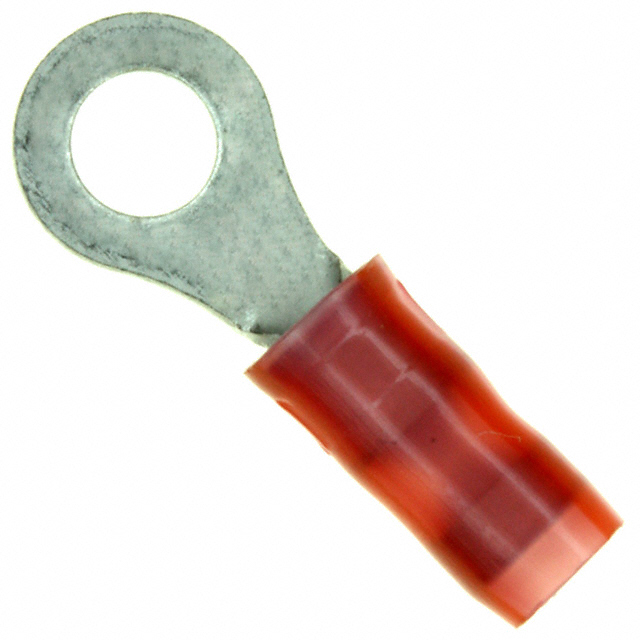

TE Connectivity Raychem Cable Protection 1-320551-3	Circular	7.92 mm	0.312 in	Red Red Stripe	Free Hanging (In-Line)	0.906 in	23.01 mm	Insulation Restriction	Crimp	Insulated	0.031 in	0.79 mm	Nylon Polyamide (PA)			1.17 mm	2.79 mm	0.11 "	0.046 in	Tin	8 Stud	Copper	20 AWG
