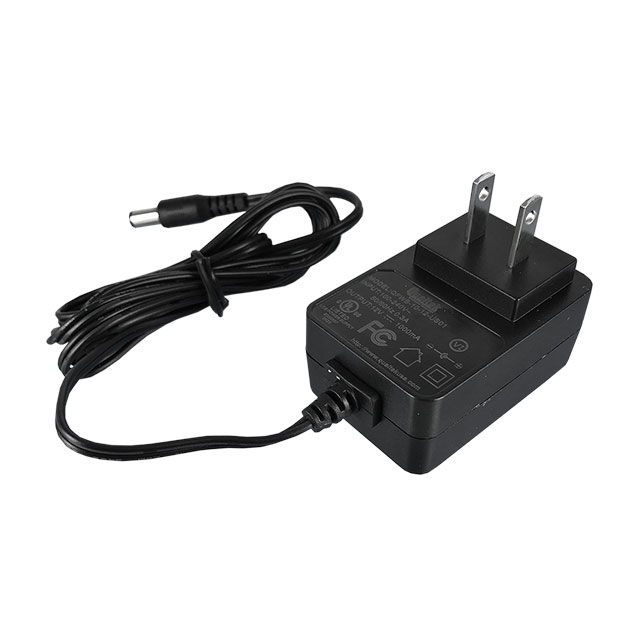

QFWB-10 Series

Manufacturer: Qualtek

Catalog

AC/DC WALL MOUNT ADAPTER 5V 10W

Part	Weight	Weight	Region Utilized	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [x]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [y]	Form	Power (Watts)	Output Connector	Applications	Efficiency	Voltage - Output	Input Type	Input Connector	Approval Agency	Current - Output (Max) [Max]	Operating Temperature [Max]	No Load Power Consumption	Voltage - Input [Min]	Voltage - Input [Max]	Cord Length	Cord Length	Output Connector [x]	Output Connector [diameter]	Polarization
Qualtek QFWB-10-5-USUB	87.08 g	0.192 lb	North America	26.5 mm	1.04 in	59 mm	2.32 in	41 mm	1.61 in	Wall Mount	10 W	USB Micro	ITE (Commercial)	Level VI	5 V	Fixed Blade	NEMA 1-15P	cULus	2.1 A	40 °C	100 mW	100 VAC	240 VAC
Qualtek QFWB-10-12-US01	87.08 g	0.192 lb	North America	26.5 mm	1.04 in	59 mm	2.32 in	41 mm	1.61 in	Wall Mount	12 W	Barrel Plug	ITE (Commercial)	Level VI	12 V	Fixed Blade	NEMA 1-15P	cULus	1 A	40 °C	100 mW	100 VAC	240 VAC	1.5 m	59 in	11 mm	2.1 mm 5.5 mm	Positive Center
Qualtek QFWB-10-5-US01			North America	26.5 mm	1.04 in	59 mm	2.32 in	41 mm	1.61 in	Wall Mount	10 W	Barrel Plug	ITE (Commercial)	Level VI	5 V	Fixed Blade	NEMA 1-15P	cULus	2.1 A	40 °C	100 mW	100 VAC	240 VAC	1.5 m	59 in	11 mm	2.1 mm 5.5 mm	Positive Center
