627-015 Series
Manufacturer: EDAC Inc.
Beta
⌘K
627 SERIES VERTICAL D-SUB PLUG C
| Part | Contact Material | Operating Temperature [Min] | Operating Temperature [Max] | Dielectric Material | Color | Features | Contact Type | Mounting Type | Connector Style | Material Flammability Rating | Shell Material, Finish | Number of Rows [custom] | Shell Size, Connector Layout | Connector Type | Termination | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Current Rating (Amps) | Flange Feature | Contact Finish | Contact Finish Thickness |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

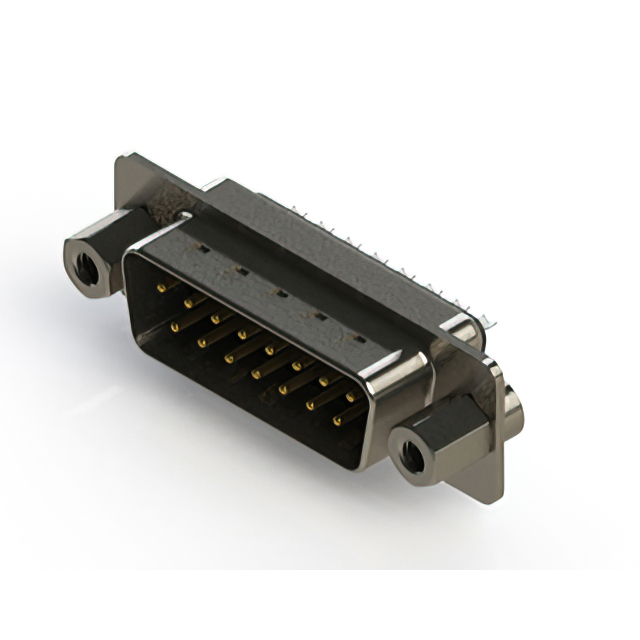

 EDAC Inc. | Brass | -55 C | 85 °C | Polyester Thermoplastic | Black | Grounding Indents Shielded | Signal | Through Hole | D-Sub | UL94 V-0 | Nickel Plated Steel | 2 | 2 | Plug Male Pins | Solder | 30 Áin | 0.76 Ám | 15 | 3 A | Board Side (4-40) | Gold | |

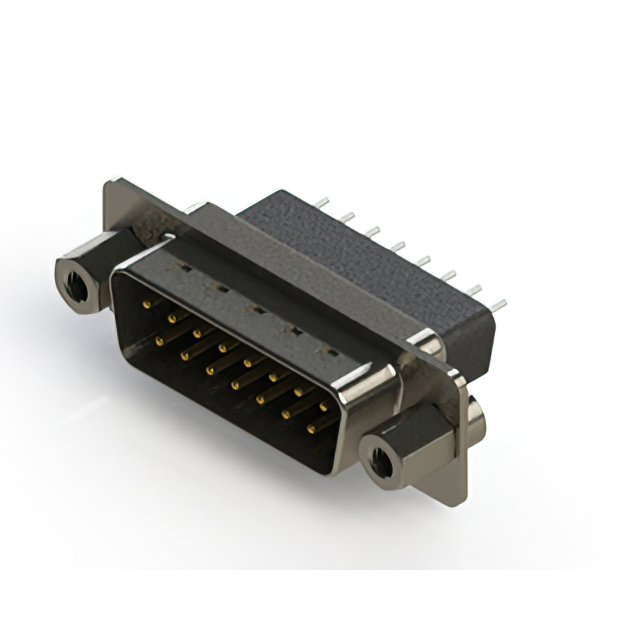

 EDAC Inc. | Brass | -55 C | 85 °C | Polyester Thermoplastic | Black | Grounding Indents Shielded | Signal | Free Hanging (In-Line) | D-Sub | UL94 V-0 | Nickel Plated Steel | 2 | 2 | Plug Male Pins | 30 Áin | 0.76 Ám | 15 | 3 A | Board Side (4-40) | Gold | ||

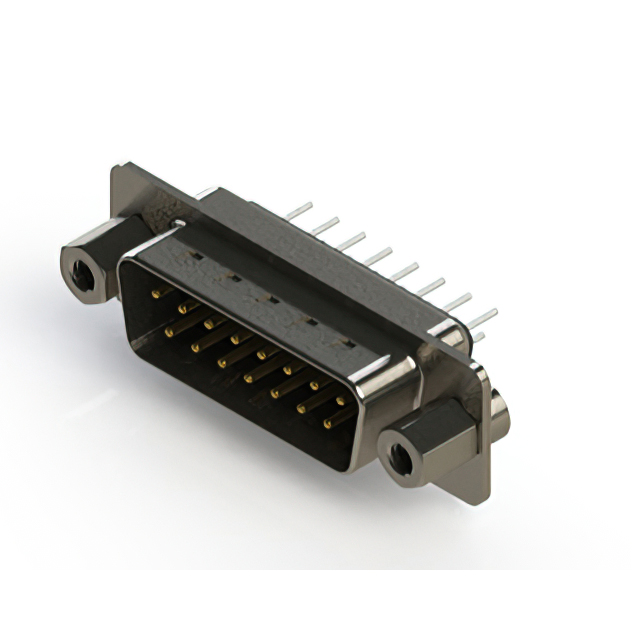

 EDAC Inc. | Brass | -55 C | 85 °C | Polyester Thermoplastic | Black | Grounding Indents Shielded | Signal | Through Hole | D-Sub | UL94 V-0 | 2 | 2 | Plug Male Pins | Solder | 15 | 3 A | Board Side (4-40) | Gold | Flash | |||

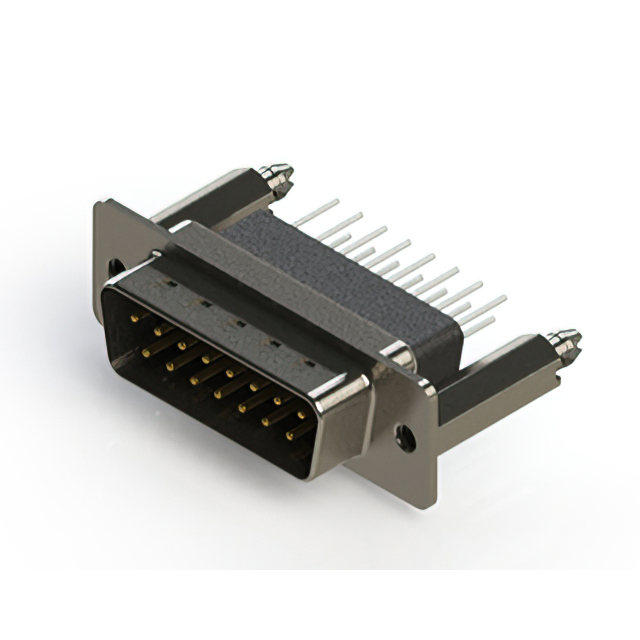

 EDAC Inc. | Brass | -55 C | 85 °C | Polyester Thermoplastic | Black | Grounding Indents Shielded | Signal | Free Hanging (In-Line) | D-Sub | UL94 V-0 | Nickel Plated Steel | 2 | 2 | Plug Male Pins | 15 µin | 0.38 µm | 15 | 3 A | Board Side (4-40) | Gold | ||

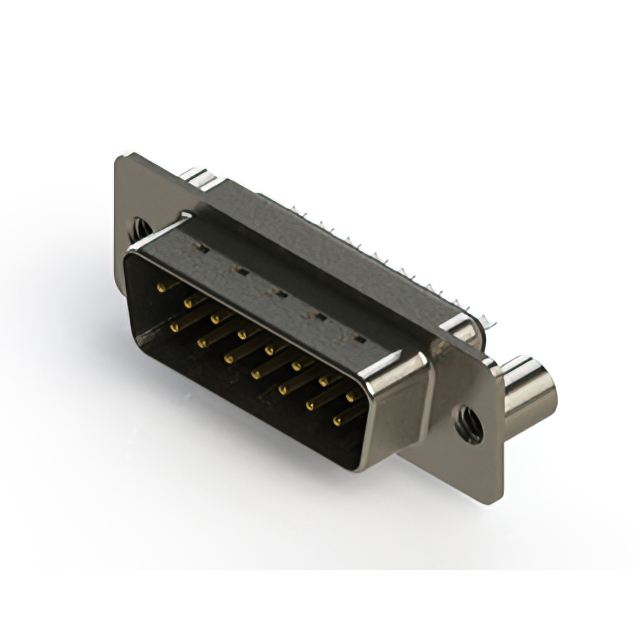

 EDAC Inc. | Brass | -55 C | 85 °C | Polyester Thermoplastic | Black | Grounding Indents Shielded | Signal | Free Hanging (In-Line) | D-Sub | UL94 V-0 | 2 | 2 | Plug Male Pins | 15 | 3 A | Board Side (4-40) | Gold | Flash | ||||

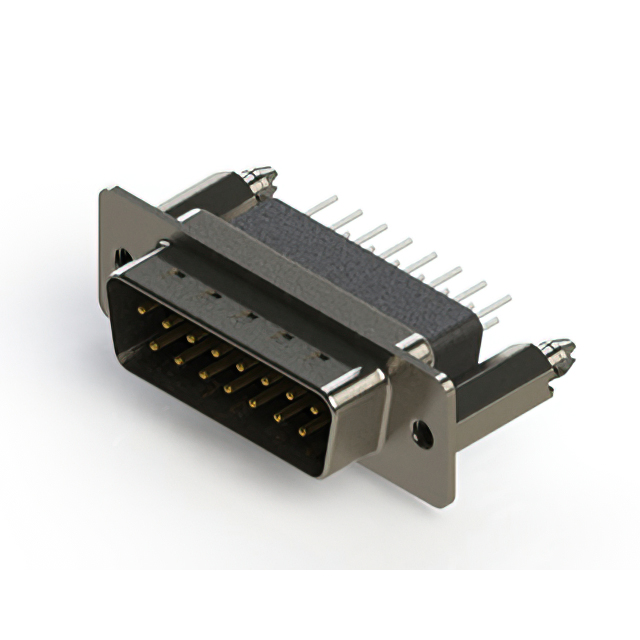

 EDAC Inc. | Brass | -55 C | 85 °C | Polyester Thermoplastic | Black | Board Lock Grounding Indents Shielded | Signal | Through Hole | D-Sub | UL94 V-0 | 2 | 2 | Plug Male Pins | Press-Fit | 30 Áin | 0.76 Ám | 15 | 3 A | Board Side (4-40) | Gold | ||

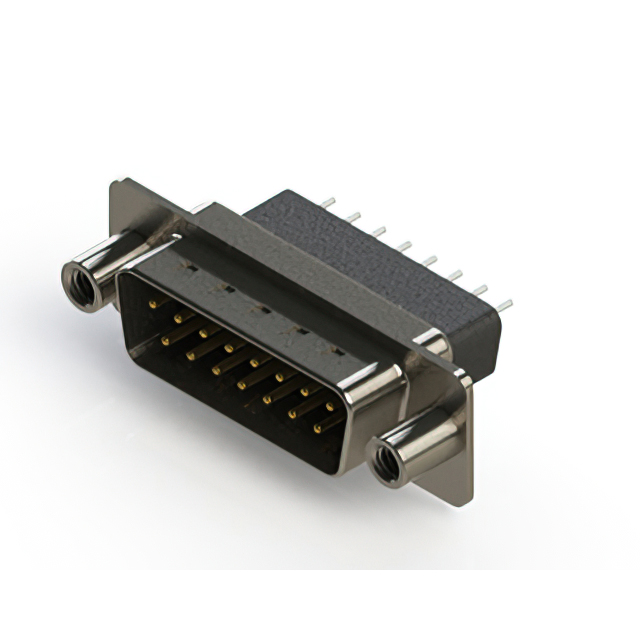

 EDAC Inc. | Brass | -55 C | 85 °C | Polyester Thermoplastic | Black | Board Lock Grounding Indents Shielded | Signal | Through Hole | D-Sub | UL94 V-0 | 2 | 2 | Plug Male Pins | Solder | 15 µin | 0.38 µm | 15 | 3 A | Board Side (4-40) | Gold | ||

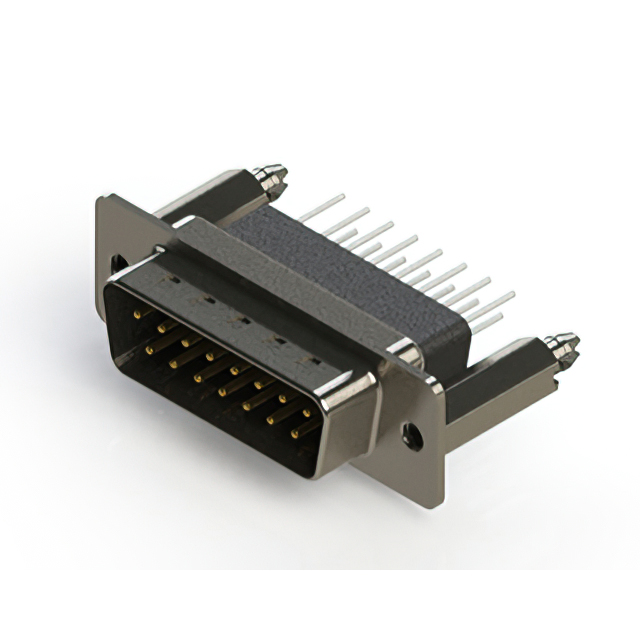

 EDAC Inc. | Brass | -55 C | 85 °C | Polyester Thermoplastic | Black | Shielded | Signal | Through Hole | D-Sub | UL94 V-0 | 2 | 2 | Plug Male Pins | Solder | 15 | 3 A | Board Side (4-40) | Gold | Flash | |||
 EDAC Inc. | Brass | -55 C | 85 °C | Polyester Thermoplastic | Black | Grounding Indents Shielded | Signal | Free Hanging (In-Line) | D-Sub | UL94 V-0 | 2 | 2 | Plug Male Pins | 30 Áin | 0.76 Ám | 15 | 3 A | Board Side (4-40) | Gold | |||
 EDAC Inc. | Brass | -55 C | 85 °C | Polyester Thermoplastic | Black | Board Lock Grounding Indents Shielded | Signal | Through Hole | D-Sub | UL94 V-0 | 2 | 2 | Plug Male Pins | Solder | 15 | 3 A | Board Side (4-40) | Gold | Flash |
