333-023 Series
Manufacturer: EDAC Inc.
Beta
⌘K

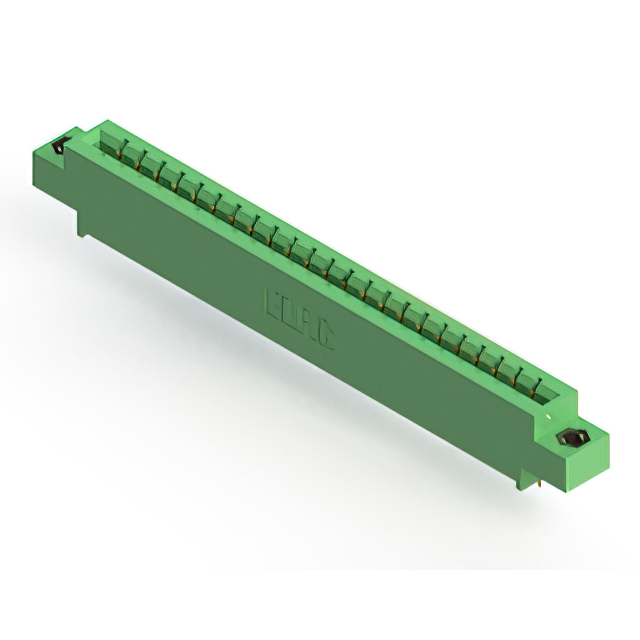

CONN EDGE SGL FMALE 23POS 0.156
| Part | Termination Rows | Material - Insulation | Termination | Color | Mounting Type | Contact Finish | Read Out | Card Type | Contact Finish Thickness | Contact Finish Thickness | Number of Positions | Contact Material | Number of Rows | Operating Temperature [Min] | Operating Temperature [Max] | Pitch | Pitch | Contact Type | Gender | Card Thickness [Max] | Card Thickness [Min] | Flange Feature [diameter] | Flange Feature [diameter] | Number of Positions/Bay/Row | Flange Feature |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 EDAC Inc. | 1 | Polyester Thermoplastic | Wire Wrap | Green | Right Angle Through Hole | Gold | Single | Non Specified - Single Edge | 0.25 Ám | 10 Áin | 23 | Copper Alloy | 1 | -40 C | 105 ░C | 3.96 mm | 0.156 in | Cantilever | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.156 " | 3.96 mm | 23 | |
 EDAC Inc. | 1 | Polyester Thermoplastic | Solder | Green | Through Hole | Gold | Single | Non Specified - Single Edge | 0.25 Ám | 10 Áin | 23 | Copper Alloy | 1 | -40 C | 105 ░C | 3.96 mm | 0.156 in | Cantilever | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.116 " | 2.95 mm | 23 | Floating Bobbin Flush Mount |
 EDAC Inc. | 1 | Polyester Thermoplastic | Wire Wrap | Green | Through Hole | Gold | Single | Non Specified - Single Edge | 0.25 Ám | 10 Áin | 23 | Copper Alloy | 1 | -40 C | 105 ░C | 3.96 mm | 0.156 in | Cantilever | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 23 | 4-40 Flush Mount Threaded Insert Top Opening | ||
 EDAC Inc. | 1 | Polyester Thermoplastic | Solder | Green | Through Hole | Gold | Single | Non Specified - Single Edge | 0.25 Ám | 10 Áin | 23 | Copper Alloy | 1 | -40 C | 105 ░C | 3.96 mm | 0.156 in | Cantilever | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.128 " | 3.25 mm | 23 | Flush Mount Top Opening Unthreaded |
 EDAC Inc. | 1 | Polyester Thermoplastic | Wire Wrap | Green | Right Angle Through Hole | Gold | Single | Non Specified - Single Edge | 0.25 Ám | 10 Áin | 23 | Copper Alloy | 1 | -40 C | 105 ░C | 3.96 mm | 0.156 in | Cantilever | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 23 | 4-40 Threaded Insert Top Mount Opening | ||
 EDAC Inc. | 1 | Polyester Thermoplastic | Solder | Green | Through Hole | Gold | Single | Non Specified - Single Edge | 0.25 Ám | 10 Áin | 23 | Copper Alloy | 1 | -40 C | 105 ░C | 3.96 mm | 0.156 in | Cantilever | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.128 " | 3.25 mm | 23 | Flush Mount Side Opening Unthreaded |
 EDAC Inc. | 1 | Polyester Thermoplastic | Wire Wrap | Green | Through Hole | Gold | Single | Non Specified - Single Edge | 0.25 Ám | 10 Áin | 23 | Copper Alloy | 1 | -40 C | 105 ░C | 3.96 mm | 0.156 in | Cantilever | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.128 " | 3.25 mm | 23 | Side Mount Opening Unthreaded |
 EDAC Inc. | 1 | Polyester Thermoplastic | Solder | Green | Through Hole | Gold | Single | Non Specified - Single Edge | 0.25 Ám | 10 Áin | 23 | Copper Alloy | 1 | -40 C | 105 ░C | 3.96 mm | 0.156 in | Cantilever | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 23 | 4-40 Flush Mount Threaded Insert Top Opening | ||
 EDAC Inc. | 1 | Polyester Thermoplastic | Solder | Green | Through Hole | Gold | Single | Non Specified - Single Edge | 0.25 Ám | 10 Áin | 23 | Copper Alloy | 1 | -40 C | 105 ░C | 3.96 mm | 0.156 in | Cantilever | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.116 " | 2.95 mm | 23 | Floating Bobbin Top Mount Opening |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Solder Eyelet(s) | Green | Through Hole | Gold | Single | Non Specified - Single Edge | 0.25 Ám | 10 Áin | 23 | Copper Alloy | 1 | -40 C | 105 ░C | 3.96 mm | 0.156 in | Cantilever | Female | 0.07 in 1.78 mm | 0.054 in 1.37 mm | 0.128 " | 3.25 mm | 23 | Side Mount Opening Unthreaded |
