1024-0 Series

Catalog

CONN PIN RCPT .015-.025 PRESSFIT

Part	Operating Temperature [Min]	Operating Temperature [Max]	Flange Diameter [diameter]	Flange Diameter [diameter]	Contact Material	Contact Finish Thickness	Contact Finish Thickness	Socket Depth [z]	Socket Depth [z]	Mounting Hole Diameter	Mounting Hole Diameter	Contact Finish	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Accepts Pin Diameter [Max]	Accepts Pin Diameter [Min]	Tail Type	Termination	Length - Overall	Length - Overall
Mill-Max Manufacturing Corp. 1024-0-18-01-30-27-10-0	-55 C	125 °C	0.072 "	1.83 mm	Beryllium Copper	30 Áin	0.76 Ám	3.81 mm	0.15 in	0.059 in	1.5 mm	Gold	0.64 mm	0.015 "	0.025 in	0.38 mm	Solder Cup	Press-Fit	0.29 in	7.37 mm
Mill-Max Manufacturing Corp. 1024-0-18-15-30-14-10-0	-55 C	125 °C	0.072 "	1.83 mm	Beryllium Copper	10 Áin	0.25 Ám	3.81 mm	0.15 in	0.059 in	1.5 mm	Gold	0.64 mm	0.015 "	0.025 in	0.38 mm	Solder Cup	Press-Fit	0.29 in	7.37 mm
Mill-Max Manufacturing Corp. 1024-0-18-80-30-14-10-0	-55 C	125 °C	0.072 "	1.83 mm	Beryllium Copper	10 Áin	0.25 Ám	3.81 mm	0.15 in	0.059 in	1.5 mm	Gold	0.64 mm	0.015 "	0.025 in	0.38 mm	Solder Cup	Press-Fit	0.29 in	7.37 mm
Mill-Max Manufacturing Corp. 1024-0-18-01-30-02-10-0	-55 C	125 °C	0.072 "	1.83 mm	Beryllium Copper	100 µin	2.54 µm	3.81 mm	0.15 in	0.059 in	1.5 mm	Tin-Lead	0.64 mm	0.015 "	0.025 in	0.38 mm	Solder Cup	Press-Fit	0.29 in	7.37 mm

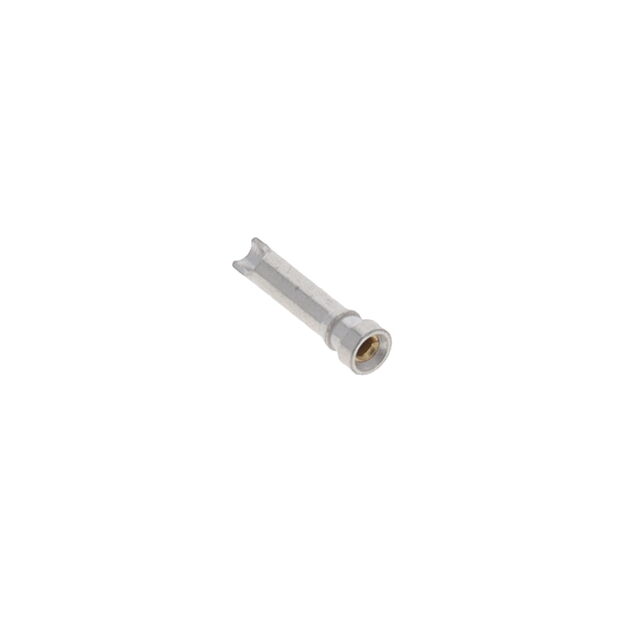

Mill-Max Manufacturing Corp. 1024-0-18-80-30-27-10-0	-55 C	125 °C	0.072 "	1.83 mm	Beryllium Copper	30 Áin	0.76 Ám	3.81 mm	0.15 in	0.059 in	1.5 mm	Gold	0.64 mm	0.015 "	0.025 in	0.38 mm	Solder Cup	Press-Fit	0.29 in	7.37 mm
