NCP1012 Series

Catalog

EVALUATION BOARD FOR SMPS SWITCHER, FIXED FREQUENCY CURRENT MODE CONTROLLER

Part	Regulator Topology	Main Purpose	Supplied Contents	Voltage - Input	Utilized IC / Part	Board Type	Outputs and Type	Outputs and Type	Voltage - Output	Frequency - Switching	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Breakdown	Voltage - Supply (Vcc/Vdd) [Max]	Voltage - Supply (Vcc/Vdd) [Min]	Topology	Output Isolation	Supplier Device Package	Power (Watts)	Package / Case	Package / Case	Package / Case	Fault Protection	Mounting Type	Duty Cycle

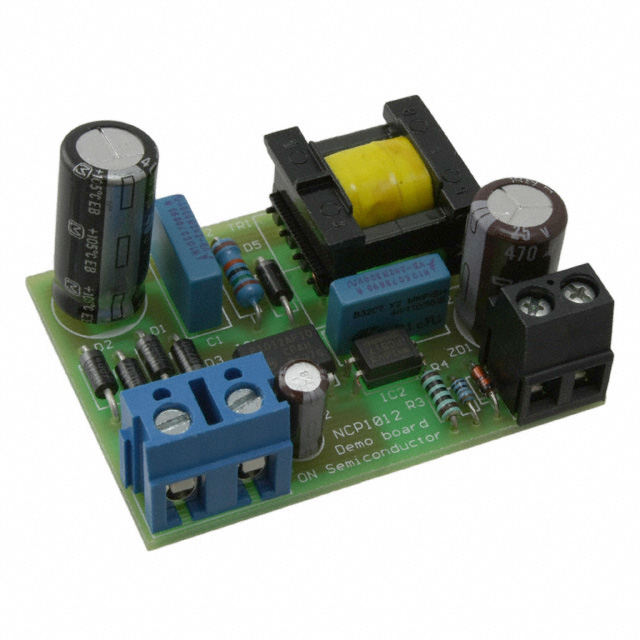

ON Semiconductor NCP1012GEVB	Flyback	AC/DC Primary Side	Board(s)	230 VAC	NCP1012	Fully Populated	Isolated	1	12 V	100 kHz
ON Semiconductor NCP1012AP100G										100 kHz	150 °C	-40 °C	700 V	10 V	8.5 V	Flyback	Isolated	7-PDIP	19 W	7.62 mm	0.3 in 7 Leads	8-DIP	Over Load Over Temperature Over Voltage	Through Hole	67 %
ON Semiconductor NCP1012APL100R2G										100 kHz	150 °C	-40 °C	700 V	10 V	8.5 V	Flyback	Isolated	7-PDIP Gullwing	19 W			8-SMD (7 Leads) Gull Wing	Over Load Over Temperature Over Voltage	Surface Mount	67 %
ON Semiconductor NCP1012APL130R2G										130 kHz	150 °C	-40 °C	700 V	10 V	8.5 V	Flyback	Isolated	7-PDIP Gullwing	19 W			8-SMD (7 Leads) Gull Wing	Over Load Over Temperature Over Voltage	Surface Mount	67 %
ON Semiconductor NCP1012ST130T3										130 kHz	150 °C	-40 °C	700 V	10 V	8.5 V	Flyback	Isolated	SOT-223 (TO-261)	19 W			TO-261-4 TO-261AA	Over Load Over Temperature Over Voltage	Surface Mount	67 %
ON Semiconductor NCP1012AP133										130 kHz	150 °C	-40 °C	700 V	10 V	8.5 V	Flyback	Isolated	7-PDIP	19 W	7.62 mm	0.3 in 7 Leads	8-DIP	Over Load Over Temperature Over Voltage	Through Hole	67 %
