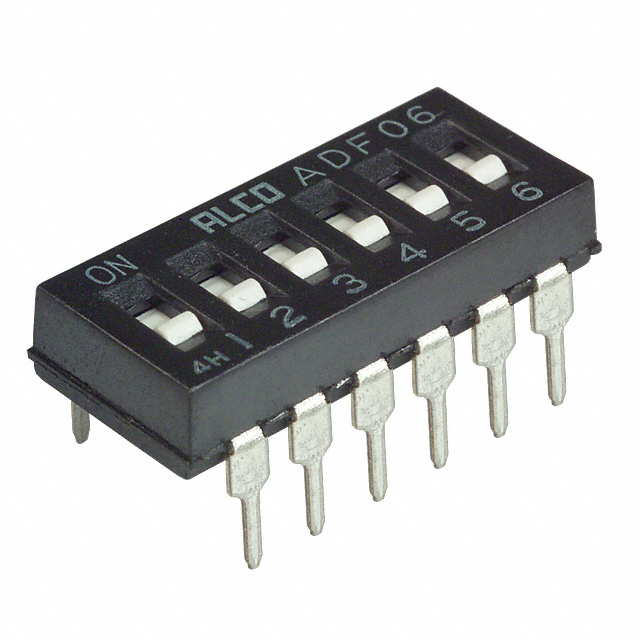

ADF06 Series
Manufacturer: TE Connectivity AMP Connectors
Beta
⌘K
SWITCH SLIDE DIP SPST 0.025A 24V
| Part | Electrical Life | Mechanical Life | Body Material | Length | Length | Pitch | Pitch | Operating Temperature [Max] | Operating Temperature [Min] | Washable | Actuator Type | Contact Finish | Circuit | Termination Style | Voltage Rating | Actuator Level | Height Above Board [z] | Height Above Board [z] | Number of Positions | Current Rating (Amps) | Mounting Type | Contact Material | Height Above Board | Height Above Board |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity AMP Connectors | 1000 Cycles | 1000 Cycles | Polyphenylene Sulfide (PPS) | 17.22 mm | 0.678 in | 2.54 mm | 0.1 " | 85 °C | -30 ░C | Slide (Standard) | Gold | SPST | Gull Wing | 24 VDC | Flush Recessed | 0.177 in | 4.5 mm | 6 | 25 mA | Surface Mount | Copper Alloy | |||
TE Connectivity AMP Connectors | 1000 Cycles | 1000 Cycles | Polyphenylene Sulfide (PPS) | 17.22 mm | 0.678 in | 2.54 mm | 0.1 " | 85 °C | -30 ░C | Slide (Standard) | Gold | SPST | J Lead | 24 VDC | Flush Recessed | 0.203 in | 5.15 mm | 6 | 25 mA | Surface Mount | Copper Alloy | |||
 TE Connectivity AMP Connectors | 1000 Cycles | 1000 Cycles | Polyphenylene Sulfide (PPS) | 17.22 mm | 0.678 in | 2.54 mm | 0.1 " | 85 °C | -30 ░C | Slide (Standard) | Gold | SPST | PC Pin | 24 VDC | Flush Recessed | 6 | 25 mA | Through Hole | Copper Alloy | 0.189 in | 4.8 mm |
