BZ-R Series

Manufacturer: Honeywell Sensing and Productivity Solutions

Catalog

SWITCH LARGE BASIC

Part	Operating Temperature [Max]	Operating Temperature [Min]	Mechanical Life	Voltage Rating - DC	Voltage Rating - AC	Mounting Type	Circuit	Pretravel	Pretravel	Operating Position	Operating Position	Actuator Type	Switch Function	Termination Style	Overtravel	Overtravel	Operating Force [Max]	Operating Force [Min]	Current Rating (Amps)	Features	Release Force	Operating Force	Differential Travel	Differential Travel
Honeywell Sensing and Productivity Solutions BZ-RW80X37-A29
Honeywell Sensing and Productivity Solutions BZ-RL59
Honeywell Sensing and Productivity Solutions BZ-RW84-A2N157
Honeywell Sensing and Productivity Solutions BZ-R05323
Honeywell Sensing and Productivity Solutions BZ-R294

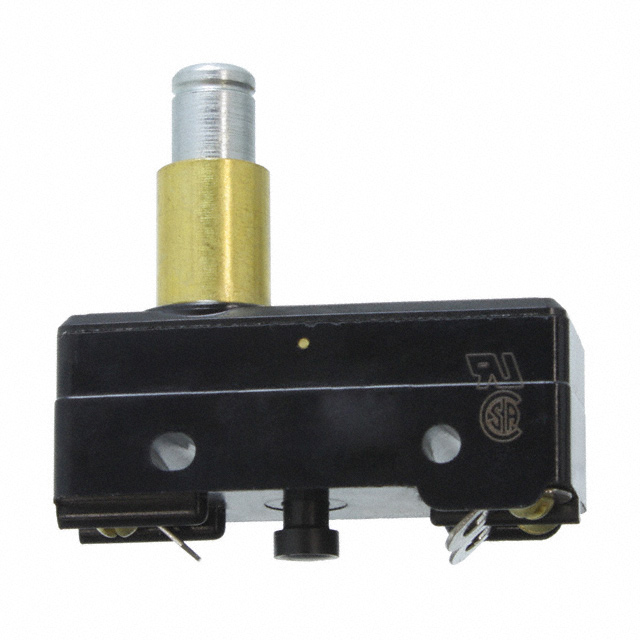

Honeywell Sensing and Productivity Solutions BZ-RQX	85 °C	-55 °C	20000000 Cycles	125 VDC	125 V	Chassis Mount	SPDT	0.012 in	0.3 mm	1.562 in	39.7 mm	Overtravel Plunger	On-On	Solder Lug	5.6 mm	0.219 in	269 gf	170 gf	15 A 500 mA	Reset Plunger on Bottom
Honeywell Sensing and Productivity Solutions BZ-RW8405-A2	85 °C	-55 °C	20000000 Cycles		125 V	Chassis Mount	SPDT	0.266 in	6.75 mm	0.75 "	19.1 mm	Lever Straight	On-Mom	Screw Terminal	5.6 mm	0.219 in			15 A		3.5 gf	21 gf	0.015 in	0.38 mm
Honeywell Sensing and Productivity Solutions BZ-R173-A4	85 °C	-55 °C	20000000 Cycles		125 V	Chassis Mount	SPDT	0.012 in	0.3 mm	0.625 in	15.9 mm	Round (Pin Plunger)	On-Mom	Screw Terminal	0.13 mm	0.005 in	283 gf	198 gf	15 A				0.0005 in	0.013 mm
Honeywell Sensing and Productivity Solutions BZ-RW843515	85 °C	-55 °C	20000000 Cycles		125 V	Chassis Mount	SPDT	0.266 in	6.75 mm	0.75 "	19.1 mm	Lever Straight	On-Mom	Solder Lug	5.6 mm	0.219 in			10 A			7 gf	0.015 in	0.38 mm
Honeywell Sensing and Productivity Solutions BZ-RX53-B7	85 °C	-55 °C	20000000 Cycles	125 VDC	125 V	Chassis Mount	SPDT	0.012 in	0.3 mm	0.625 in	15.9 mm	Round (Pin Plunger)	On-On	Screw Terminal	0.13 mm	0.005 in	255 gf	198 gf	15 A 500 mA	Reset Plunger on Bottom
