2823106 Series

Manufacturer: TE Connectivity Raychem Cable Protection

Catalog

2P,2MM,BRK HDR,SRVT,SMD,SN,TR W/

Part	Fastening Type	Shrouding	Contact Type	Contact Finish Thickness - Post	Contact Finish Thickness - Post	Termination	Contact Finish - Post	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Mounting Type	Number of Positions	Material Flammability Rating	Connector Type	Insulation Color	Current Rating (Amps)	Contact Length - Mating	Contact Length - Mating	Pitch - Mating [x]	Pitch - Mating [x]	Insulation Height	Insulation Height	Insulation Material	Features	Contact Shape	Operating Temperature [Min]	Operating Temperature [Max]	Voltage Rating	Number of Positions Loaded	Number of Rows
TE Connectivity Raychem Cable Protection 2823106-2	Push-Pull	Unshrouded	Male Pin	0.3 µm	12 µin	Solder	Tin	118.1 µin	3 µm	Phosphor Bronze	Surface Mount	2	UL94 V-0	Breakaway Header	Black	2 A	4 mm	0.157 in	0.079 in	2 mm	1.5 mm	0.059 "	Thermoplastic	Pick and Place	Square	-40 °C	105 ░C	125 VAC	All	1

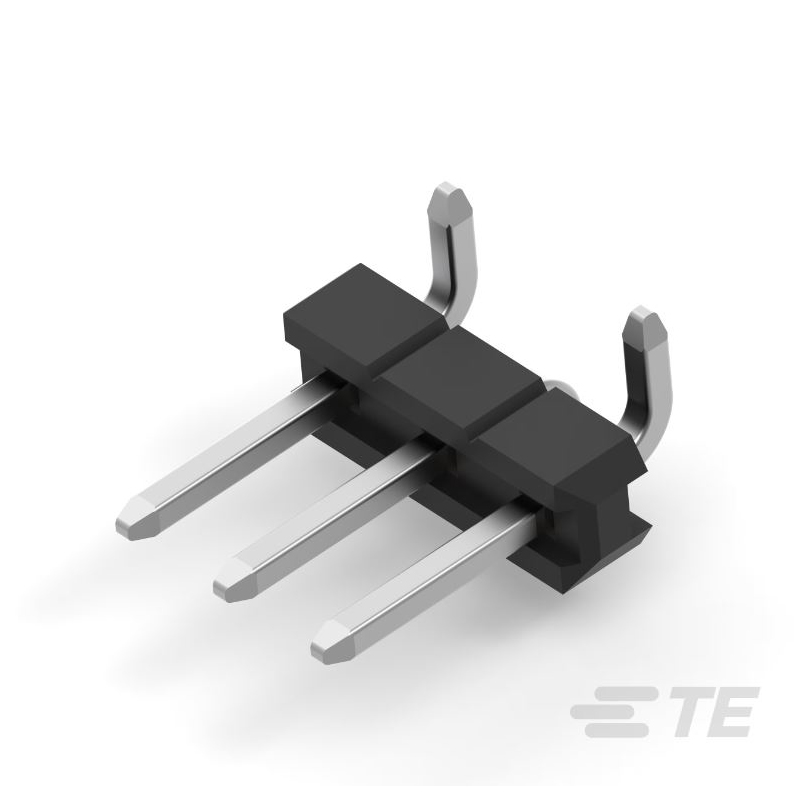

TE Connectivity Raychem Cable Protection 2823106-3	Push-Pull	Unshrouded	Male Pin	0.3 µm	12 µin	Solder	Tin	118.1 µin	3 µm	Phosphor Bronze	Surface Mount		UL94 V-0	Breakaway Header	Black	2 A	4 mm	0.157 in	0.079 in	2 mm	1.5 mm	0.059 "	Thermoplastic	Pick and Place	Square	-40 °C	105 ░C	125 VAC	All	1

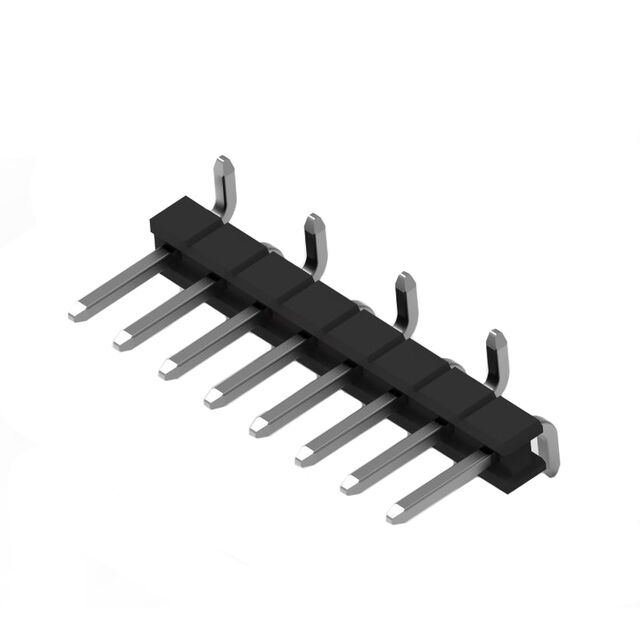

TE Connectivity Raychem Cable Protection 2-2823106-5	Push-Pull	Unshrouded	Male Pin	0.3 µm	12 µin	Solder	Tin	118.1 µin	3 µm	Phosphor Bronze	Surface Mount		UL94 V-0	Breakaway Header	Black	2 A	4 mm	0.157 in	0.079 in	2 mm	1.5 mm	0.059 "	Thermoplastic	Pick and Place	Square	-40 °C	105 ░C	125 VAC	All	1

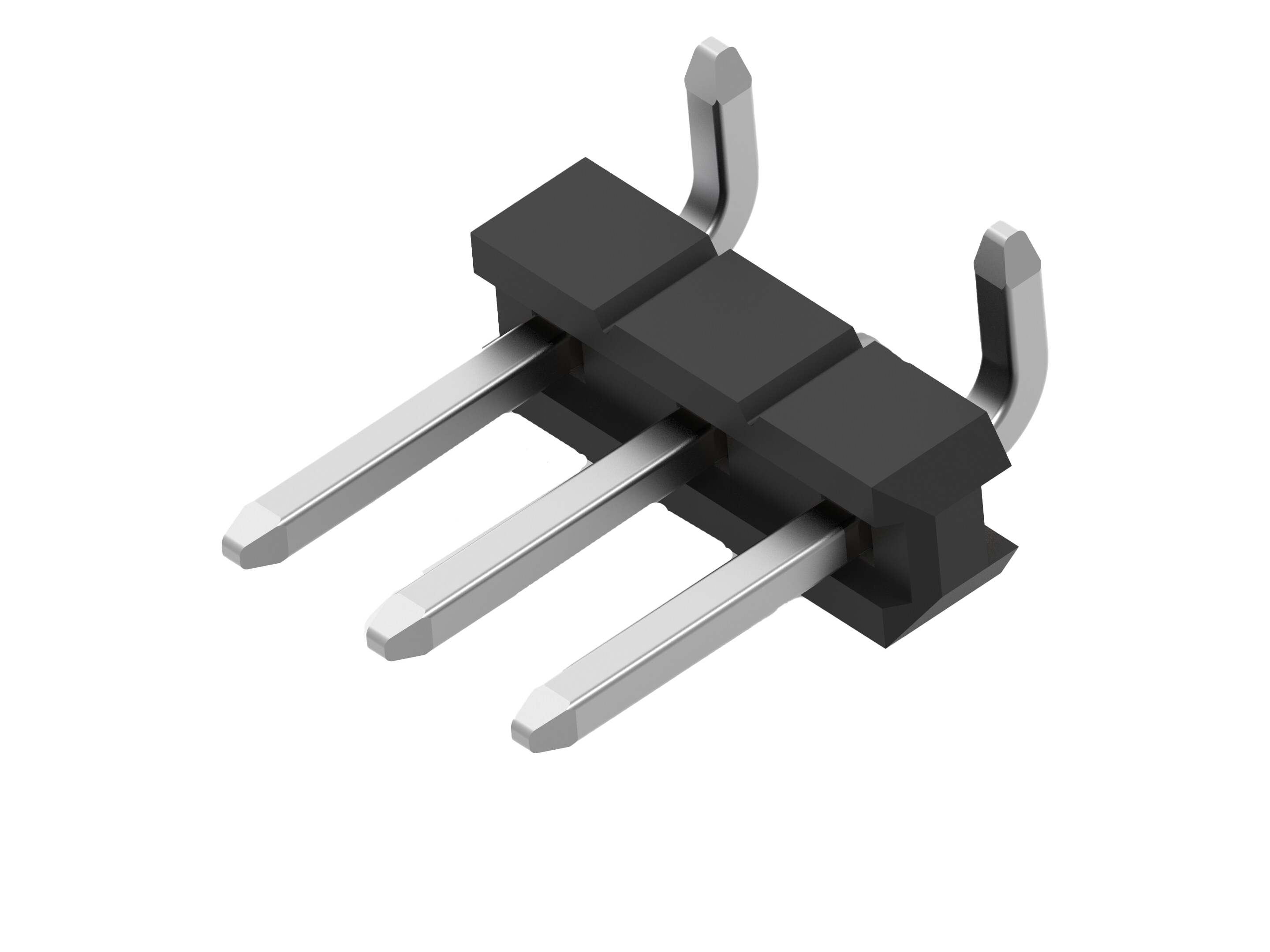

TE Connectivity Raychem Cable Protection 2823106-4	Push-Pull	Unshrouded	Male Pin	0.3 µm	12 µin	Solder	Tin	118.1 µin	3 µm	Phosphor Bronze	Surface Mount	4	UL94 V-0	Breakaway Header	Black	2 A	4 mm	0.157 in	0.079 in	2 mm	1.5 mm	0.059 "	Thermoplastic	Pick and Place	Square	-40 °C	105 ░C	125 VAC	All	1
