AMMA Series

Catalog

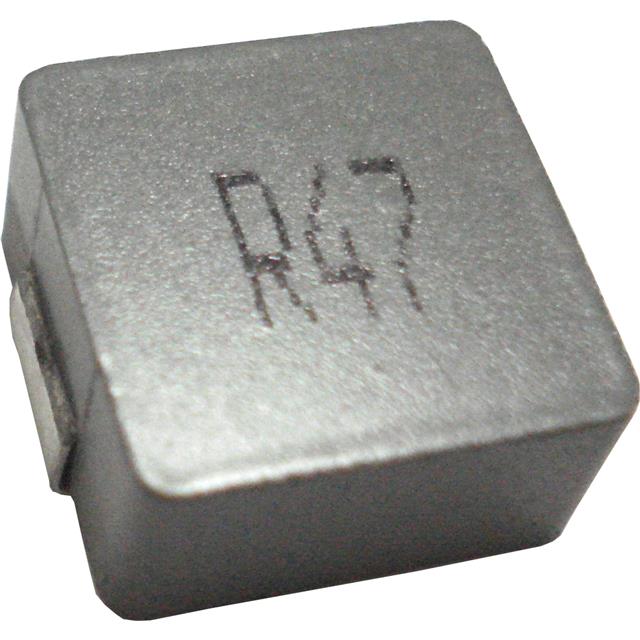

POWER INDUCTORS - SMD CHILISIN POWER - INDUCTOR (IND) CLOSED MAGNETIC CIRCUIT TYPEMOLDING PROCESSING & FOR ULTRA HIGH CURRENT

Part	Tolerance	Inductance	Operating Temperature [Min]	Operating Temperature [Max]	Height - Seated (Max) [Max] [z]	Height - Seated (Max) [Max] [z]	Inductance Frequency - Test	Material - Core	Mounting Type	Current - Saturation (Isat)	Current Rating (Amps)	Ratings	DC Resistance (DCR)	Type	Package / Case	Shielding	Size / Dimension [y]	Size / Dimension [x]	Size / Dimension [y]	Size / Dimension [x]	Height - Seated (Max)	Height - Seated (Max) [Max]	DC Resistance (DCR) [Max]	Height - Seated (Max) [Max]	Height - Seated (Max) [Max]
Pulse Electronics AMMA00060630R10MV1	20 %	100 nH	-55 C	125 °C	0.118 "	3 mm	100 kHz	Metal	Surface Mount	60 A	32.5 A	AEC-Q200	1.7 mOhm	Drum Core Wirewound	Nonstandard	Shielded	6.47 mm	0.27 in	0.255 in	6.86 mm
Pulse Electronics AMMA001010402R2MV1	20 %	2.2 µH	-55 C	125 °C			100 kHz	Metal	Surface Mount	25.6 A	12 Amps	AEC-Q200		Drum Core Wirewound	Nonstandard	Shielded	10 mm	0.453 "	0.394 in	11.5 mm	4 mm	0.157 in	9 mOhm
Pulse Electronics AMMA00060630R15MV1	20 %	150 nH	-55 C	125 °C	0.118 "	3 mm	100 kHz	Metal	Surface Mount	52 A	26 A	AEC-Q200		Drum Core Wirewound	Nonstandard	Shielded	6.47 mm	0.27 in	0.255 in	6.86 mm			2.5 mOhm
Pulse Electronics AMMA000606306R8MV1	20 %	6.8 µH	-55 C	125 °C	0.118 "	3 mm	100 kHz	Metal	Surface Mount	8 A	4.5 A	AEC-Q200		Drum Core Wirewound	Nonstandard	Shielded	6.47 mm	0.27 in	0.255 in	6.86 mm
Pulse Electronics AMMA000404201R2MV1	20 %	1.2 µH	-55 C	125 °C			100 kHz	Metal	Surface Mount	7 A	3.1 A	AEC-Q200		Drum Core Wirewound	Nonstandard	Shielded	4.06 mm	0.175 in	0.16 in	4.45 mm			48 mOhm	0.079 in	2 mm
