LCAN2 Series
Manufacturer: Panduit Corp
Beta
⌘K

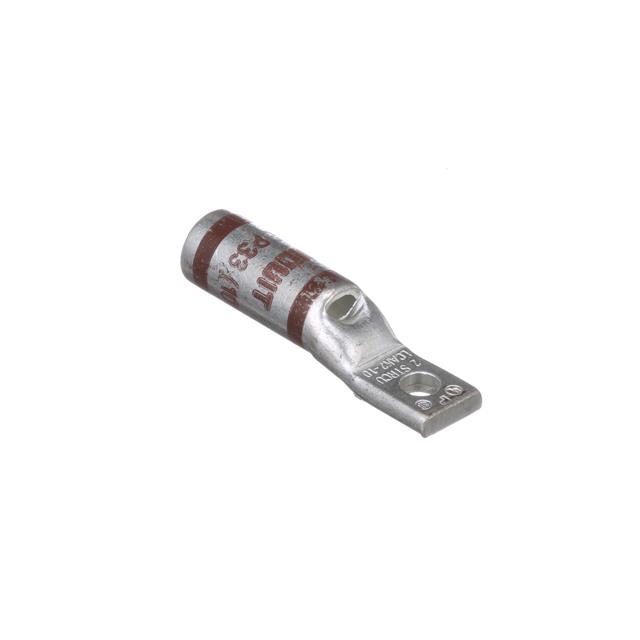

CONN TERM RECT TONG 2 AWG #10
| Part | Diameter - Ring ID [diameter] | Diameter - Ring ID [diameter] | Diameter - Barrel ID [diameter] | Diameter - Barrel ID [diameter] | Contact Finish | Diameter - Barrel OD [diameter] | Diameter - Barrel OD [diameter] | Contact Material | Stud/Tab Size | Mounting Type | Length - Overall [x] | Length - Overall [x] | Color | Termination | Insulation | Width - Outer Edges | Width - Outer Edges | Wire Gauge | Terminal Style | Tab Thickness | Tab Thickness | Terminal Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Panduit Corp | 5.08 mm | 0.2 in | 7.87 mm | 0.31 in | Electro-Tin | 0.42 in | 10.67 mm | Copper | 10 Stud | Free Hanging (In-Line) | 1.67 in | 42.42 mm | Brown | Barrel Crimp | Non-Insulated | 10.67 mm | 0.42 in | 2 AWG | Single Stud Hole | 0.12 in | 3.05 mm | Rectangular Tongue |
