10090930 Series

Catalog

CONN D-SUB HD HOUSING PLUG 26POS

Part	Color	Operating Temperature [Min]	Operating Temperature [Max]	Note	Dielectric Material	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout	Number of Rows [custom]	Number of Positions	Connector Style	Connector Type	Features	Contact Type	Shell Material, Finish	Mounting Type	Flange Feature	Shell Finish Thickness	Shell Finish Thickness	Shell Size, Connector Layout [custom]	Shell Size, Connector Layout

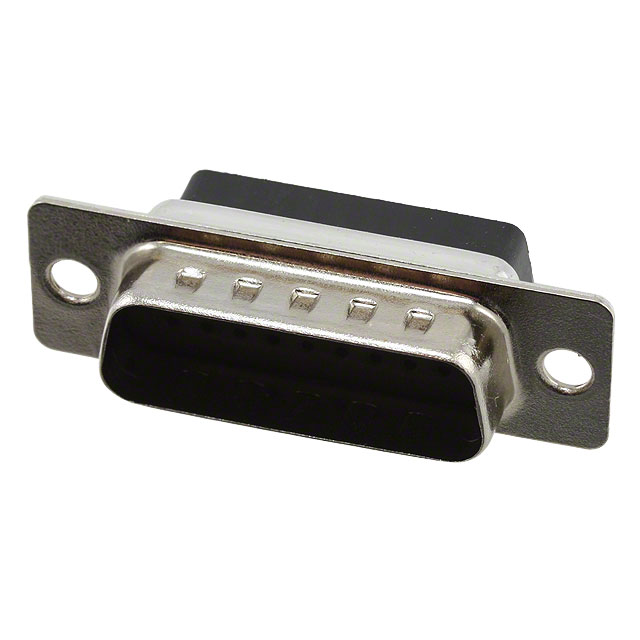

Amphenol ICC (FCI) 10090930-P260ALF	Black	-55 C	105 ░C	Contacts Not Included	Thermoplastic Glass Filled	2	DA A	3	26	D-Sub High Density	Plug for Male Contacts	Grounding Indents	Signal	Steel Tin-Nickel Plated	Free Hanging (In-Line)	Housing/Shell (Unthreaded)	2.54 µm	100 µin

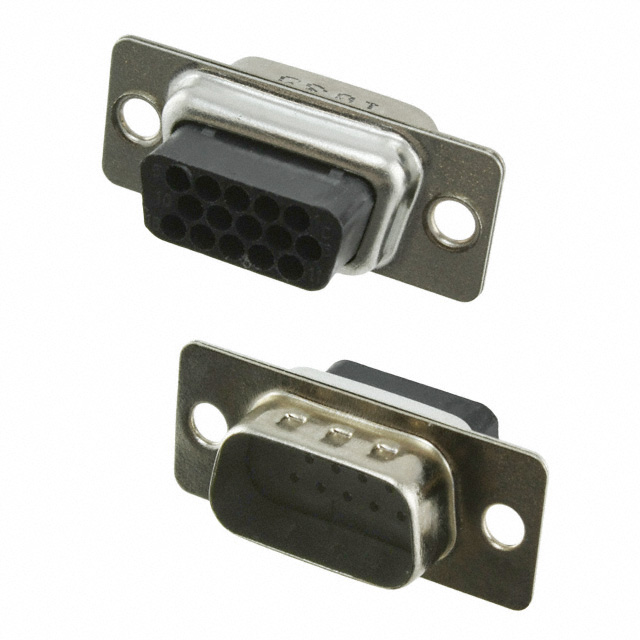

Amphenol ICC (FCI) 10090930-P150ALF	Black	-55 C	105 ░C	Contacts Not Included	Thermoplastic Glass Filled	1		3	15	D-Sub High Density	Plug for Male Contacts	Grounding Indents	Signal	Steel Tin-Nickel Plated	Free Hanging (In-Line)	Housing/Shell (Unthreaded)	2.54 µm	100 µin	(DE E) High Density
Amphenol ICC (FCI) 10090930-P780ALF	Black	-55 C	105 ░C	Contacts Not Included	Thermoplastic Glass Filled				78	D-Sub High Density	Plug for Male Contacts	Grounding Indents	Signal	Steel	Free Hanging (In-Line)	Housing/Shell (Unthreaded)	2.54 µm	100 µin
Amphenol ICC (FCI) 10090930-P620ALF	Black	-55 C	105 ░C	Contacts Not Included	Thermoplastic Glass Filled		C DC	3	62	D-Sub High Density	Plug for Male Contacts	Grounding Indents	Signal	Steel Tin-Nickel Plated	Free Hanging (In-Line)	Housing/Shell (Unthreaded)	2.54 µm	100 µin		4
Amphenol ICC (FCI) 10090930-P440ALF	Black	-55 C	105 ░C	Contacts Not Included	Thermoplastic Glass Filled			3	44	D-Sub High Density	Plug for Male Contacts	Grounding Indents	Signal	Steel	Free Hanging (In-Line)	Housing/Shell (Unthreaded)	2.54 µm	100 µin		3
