TBP Series

Catalog

BOARD MOUNT PRESSURE SENSORS SMT SNGL AX BARBLESS PORT 60 PSI, GUAGE

Part	Output Type	Accuracy	Package / Case	Operating Pressure	Operating Pressure	Supplier Device Package	Pressure Type	Features	Port Size	Port Size	Port Size	Operating Temperature [Max]	Operating Temperature [Min]	Termination Style	Output [Max]	Mounting Type	Applications	Port Style	Voltage - Supply [Max]	Voltage - Supply [Min]	Maximum Pressure	Maximum Pressure	Maximum Pressure [Max]	Maximum Pressure [Max]

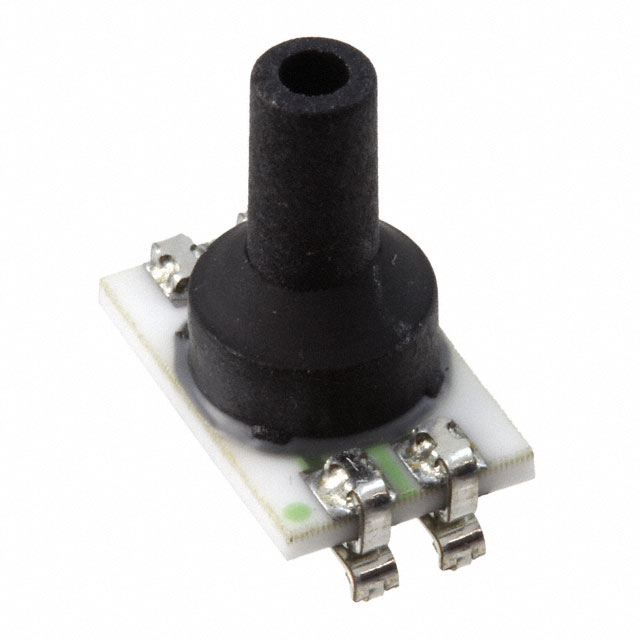

Honeywell Sensing and Productivity Solutions TBPMLNN060PGUCV	Wheatstone Bridge	0.15 %	4-SMD J-Lead Top Port	413.69 kPa	60 PSI	4-SMT	Vented Gauge	Temperature Compensated	Male Tube	0.13 in	3.18 mm	125 °C	-40 C	SMD (SMT) Tab	6.5 mV	Surface Mount	Board Mount	Barbless	12 V	1.5 V	999.74 kPa	145 PSI

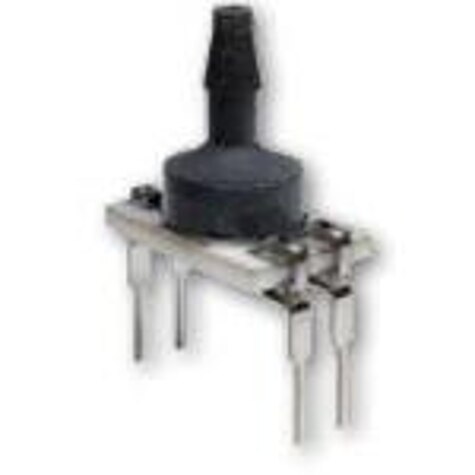

Honeywell Sensing and Productivity Solutions TBPDANS015PGUCV	Wheatstone Bridge	0.15 %	4-DIP (0.453" 11.50mm) Top Port	103.42 kPa	15 PSI	4-DIP	Vented Gauge	Temperature Compensated	Male Tube	0.11 in	2.74 mm	125 °C	-40 C	PC Pin	26.25 mV	Through Hole	Board Mount	Barbed	12 V	1.5 V			413.69 kPa	60 PSI

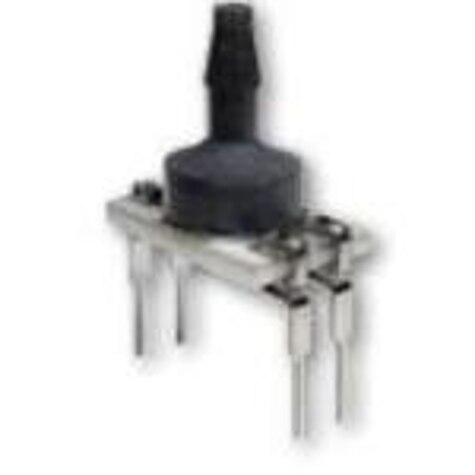

Honeywell Sensing and Productivity Solutions TBPDANN150PGUCV	Wheatstone Bridge	0.15 %	4-DIP (0.453" 11.50mm) Top Port	1034.21 kPa	150 PSI	4-DIP	Vented Gauge	Temperature Compensated	Male Tube	0.11 in	2.74 mm	125 °C	-40 C	PC Pin	45.75 mV	Through Hole	Board Mount	Barbed	12 V	1.5 V	1689.22 kPa			245 PSI
