05S132 Series
Manufacturer: Rosenberger
Beta
⌘K
PRECISION N TYPE ADAPTER
| Part | Mating Cycles | Dielectric Material | Insertion Loss | Body Material | Center Contact Material | Operating Temperature [Max] | Operating Temperature [Min] | Convert From (Adapter End) | Convert To (Adapter End) | Style | Center Contact Plating | Impedance | Center Gender | Conversion Type | Mounting Type | Adapter Series | Frequency - Max [Max] | Adapter Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

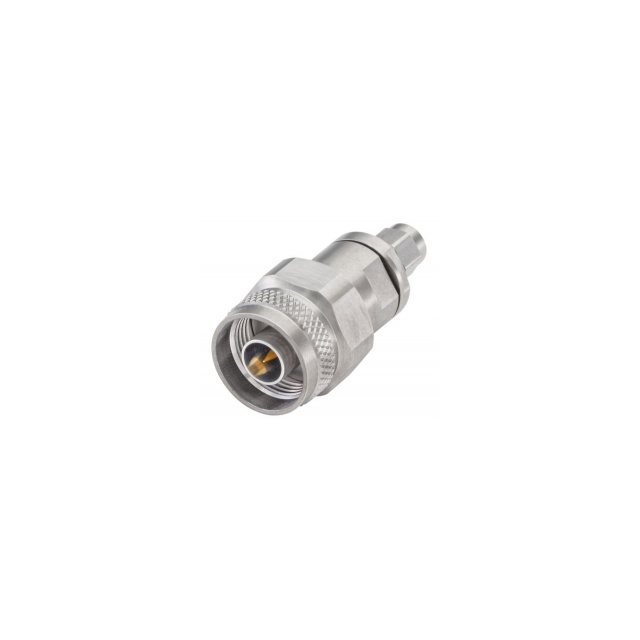

 Rosenberger | 500 | Polyphenylene Ether (PPE) Polytetrafluoroethylene (PTFE) | 0.42 dB | Stainless Steel | Beryllium Copper Brass | 85 °C | -40 C | N Plug Male Pin | TNC Plug Male Pin | Straight | Gold | 50 Ohms | Male to Male | Between Series | Free Hanging (In-Line) | RJC-N to SMA | 18 GHz | Plug to Plug |

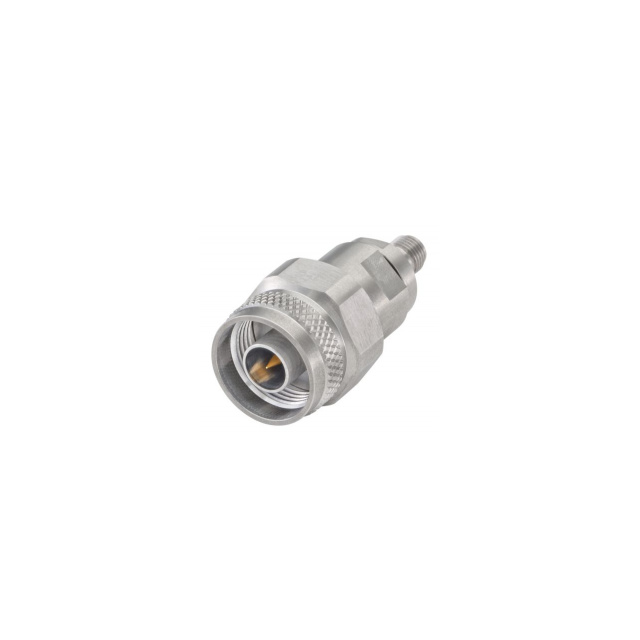

 Rosenberger | 500 | Polyphenylene Ether (PPE) Polytetrafluoroethylene (PTFE) | 0.42 dB | Stainless Steel | Beryllium Copper Brass | 85 °C | -40 C | N Plug Male Pin | Female Socket TNC Jack | Straight | Gold | 50 Ohms | Between Series | Free Hanging (In-Line) | RPC-N to SMA | 18 GHz | Plug to Jack |
