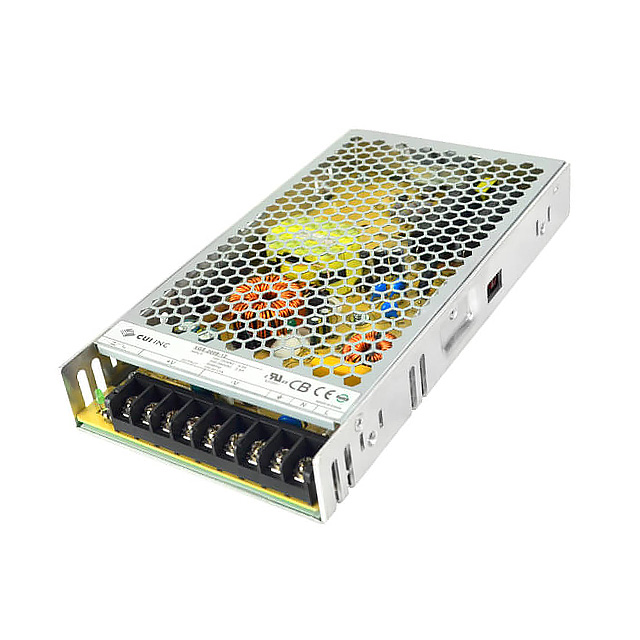

VGS-200 Series
Manufacturer: CUI Inc.
Beta
⌘K
AC/DC POWER SUPPLY SINGLE-OUT 12V 17A 204W 9-PIN
| Part | Current - Output 1 | Efficiency | Mounting Type | Size / Dimension [x] | Size / Dimension [z] | Size / Dimension [z] | Size / Dimension [y] | Size / Dimension [y] | Size / Dimension [x] | Applications | Voltage - Output 1 | Voltage - Input [Min] | Voltage - Input [Max] | Voltage - Isolation | Number of Outputs | Operating Temperature [Max] | Operating Temperature [Min] | Approval Agency | Power (Watts) | Type | Standard Number | Features |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 CUI Inc. | 17 A | 87.5 % | Chassis Mount | 215 mm | 30 mm | 1.18 in | 4.53 in | 115 mm | 8.46 in | ITE (Commercial) | 12 V | 90 VAC 180 VAC | 132 VAC 264 VAC | 1.5 kV | 1 | 70 °C | -20 °C | CB Scheme EN FCC IEC SIQ TUV UL | 204 W | Enclosed | 55024 55032 Class B 60950-1 61000-3-2 61000-3-3 | Adjustable Output |
CUI Inc. | 8.8 A | Chassis Mount | 215 mm | 30 mm | 1.18 in | 4.53 in | 115 mm | 8.46 in | ITE (Commercial) | 24 V | 90 VAC 180 VAC | 132 VAC 264 VAC | 1.5 kV | 1 | 70 °C | -20 °C | CB Scheme EN FCC IEC SIQ TUV UL | 211 W | Enclosed | 55024 55032 Class B 60950-1 61000-3-2 61000-3-3 | Adjustable Output |
