MAN39 Series

Catalog

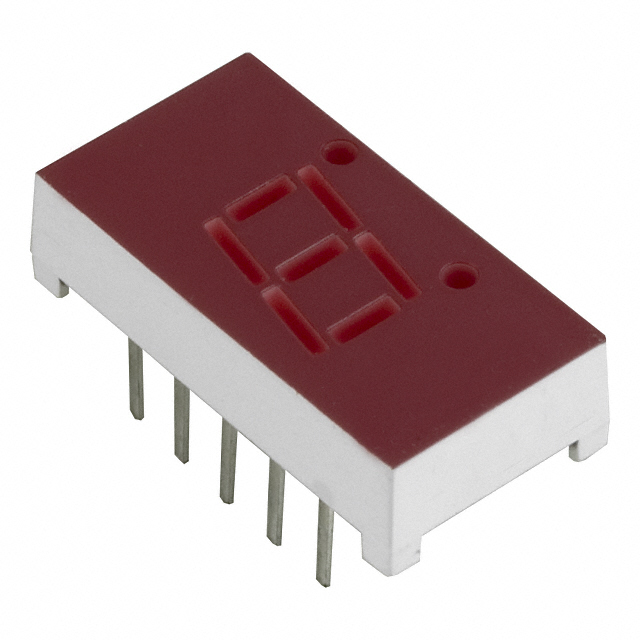

LED 7-SEG DISP CC HRED RHDP .3"

Part	Voltage - Forward (Vf) (Typ) [Max]	Wavelength - Peak	Current - Test	Digit/Alpha Size	Digit/Alpha Size	Millicandela Rating	Power Dissipation (Max) [Max]	Common Pin	Number of Characters [custom]	Size / Dimension [x]	Size / Dimension [z]	Size / Dimension [z]	Size / Dimension [y]	Size / Dimension [y]	Size / Dimension [x]	Color	Display Type	Package / Case	Package / Case [y]	Package / Case [x]
ON Semiconductor MAN3980A	2.5 V	635 nm	20 mA	0.3 in	7.62 mm	1.9 mcd	600 mW	Common Cathode	1	0.738 "	0.2 in	0.2 "	0.386 in	9.8 mm	18.75 mm	Red	7-Segment
ON Semiconductor MAN3910A	2.5 V	635 nm	20 mA	0.3 in	7.62 mm	1.9 mcd	600 mW	Common Anode	1	0.738 "	0.2 in	0.2 "	0.386 in	9.8 mm	18.75 mm	Red	7-Segment
ON Semiconductor MAN3940A	2.5 V	635 nm	20 mA	0.3 in	7.62 mm	1.9 mcd	600 mW	Common Cathode	1	0.738 "	0.2 in	0.2 "	0.386 in	9.8 mm	18.75 mm	Red	7-Segment	14-DIP	7.62 mm	0.3 "
ON Semiconductor MAN3920A	2.5 V	635 nm	20 mA	0.3 in	7.62 mm	1.9 mcd	600 mW	Common Anode	1	0.738 "	0.2 in	0.2 "	0.386 in	9.8 mm	18.75 mm	Red	7-Segment	14-DIP	7.62 mm	0.3 "
