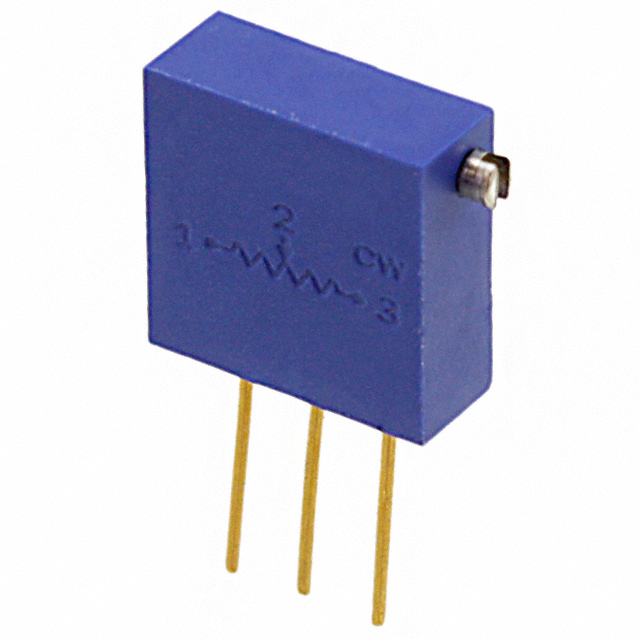

3290H Series
Manufacturer: Bourns Inc.
Beta
⌘K
TRIMMER - 3/8" SQ MT WW /TUBE PACKAGING
| Part | Termination Style | Resistive Material | Adjustment Type | Temperature Coefficient | Number of Turns | Resistance | Mounting Type | Size / Dimension [x] | Size / Dimension [x] | Size / Dimension [y] | Size / Dimension [y] | Power (Watts) | Tolerance |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 Bourns Inc. | PC Pins | Wirewound | Side Adjustment | 50 ppm/░C | 25 | 25 kOhms | Panel Mount Through Hole | 0.375 in | 9.53 mm | 3.81 mm | 0.15 " | 1 W | 5 % |
 Bourns Inc. | PC Pins | Wirewound | Side Adjustment | 50 ppm/░C | 25 | 5 kOhms | Through Hole | 0.375 in | 9.53 mm | 3.81 mm | 0.15 " | 1 W | 5 % |
Bourns Inc. | PC Pins | Wirewound | Side Adjustment | 50 ppm/░C | 25 | 200 Ohms | Through Hole | 0.375 in | 9.53 mm | 3.81 mm | 0.15 " | 1 W | 5 % |
Bourns Inc. | PC Pins | Wirewound | Side Adjustment | 50 ppm/░C | 25 | 200 Ohms | Panel Mount Through Hole | 0.375 in | 9.53 mm | 3.81 mm | 0.15 " | 1 W | 5 % |
Bourns Inc. | PC Pins | Wirewound | Side Adjustment | 50 ppm/░C | 25 | 10000 Ohms | Through Hole | 0.375 in | 9.53 mm | 3.81 mm | 0.15 " | 1 W | 5 % |
Bourns Inc. | PC Pins | Wirewound | Side Adjustment | 50 ppm/░C | 25 | 100 Ohms | Through Hole | 0.375 in | 9.53 mm | 3.81 mm | 0.15 " | 1 W | 5 % |
Bourns Inc. | PC Pins | Wirewound | Side Adjustment | 50 ppm/░C | 25 | 50000 Ohms | Through Hole | 0.375 in | 9.53 mm | 3.81 mm | 0.15 " | 1 W | 5 % |
Bourns Inc. | PC Pins | Wirewound | Side Adjustment | 50 ppm/░C | 25 | 2 kOhms | Through Hole | 0.375 in | 9.53 mm | 3.81 mm | 0.15 " | 1 W | 5 % |
Bourns Inc. | PC Pins | Wirewound | Side Adjustment | 50 ppm/░C | 25 | 20 kOhms | Through Hole | 0.375 in | 9.53 mm | 3.81 mm | 0.15 " | 1 W | 5 % |
 Bourns Inc. | PC Pins | Wirewound | Side Adjustment | 50 ppm/░C | 25 | 25 kOhms | Through Hole | 0.375 in | 9.53 mm | 3.81 mm | 0.15 " | 1 W | 5 % |
