ISC240P06 Series
Manufacturer: INFINEON
Beta
⌘K
P-CHANNEL MOSFETS IN LOGIC LEVEL, REDUCING DESIGN COMPLEXITY IN MEDIUM AND LOW POWER APPLICATIONS
| Part | Mounting Type | Package / Case | Vgs (Max) | Power Dissipation (Max) | Gate Charge (Qg) (Max) @ Vgs [Max] | Technology | Vgs(th) (Max) @ Id | Drive Voltage (Max Rds On, Min Rds On) | Supplier Device Package | Input Capacitance (Ciss) (Max) @ Vds [Max] | Current - Continuous Drain (Id) @ 25°C | Operating Temperature [Max] | Operating Temperature [Min] | Drain to Source Voltage (Vdss) | Rds On (Max) @ Id, Vgs | FET Type |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

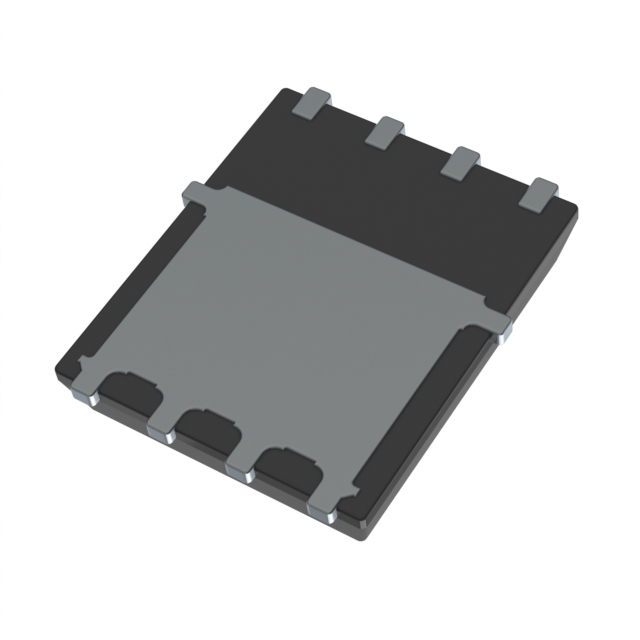

 INFINEON | Surface Mount | 8-PowerTDFN | 20 V | 188 W | 136 nC | MOSFET (Metal Oxide) | 2 V | 4.5 V 10 V | PG-TDSON-8 FL | 4400 pF | 59 A | 175 °C | -55 °C | 60 V | 24 mOhm | P-Channel |
