6071312 Series

Manufacturer: DIALIGHT

Catalog

LED 7MM YELLOW PMI W GASKET

Part	Voltage	Lens Size [diameter]	Lamp Color	Termination Style	Ratings	Current	Ingress Protection	Millicandela Rating	Type	Panel Cutout Dimensions	Panel Cutout Dimensions	Lens Style	Panel Cutout Shape

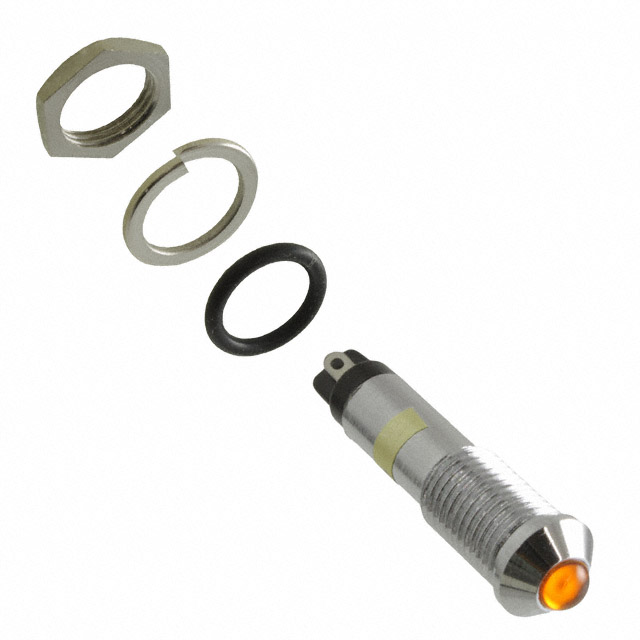

DIALIGHT 6071312330F	12 V	4 mm Dia	Yellow	Solder Lug	DC	15 mA	IP66 NEMA 4X	55 mcd	LED	7.2 mm	0.28 in	Round with Domed Top	Round

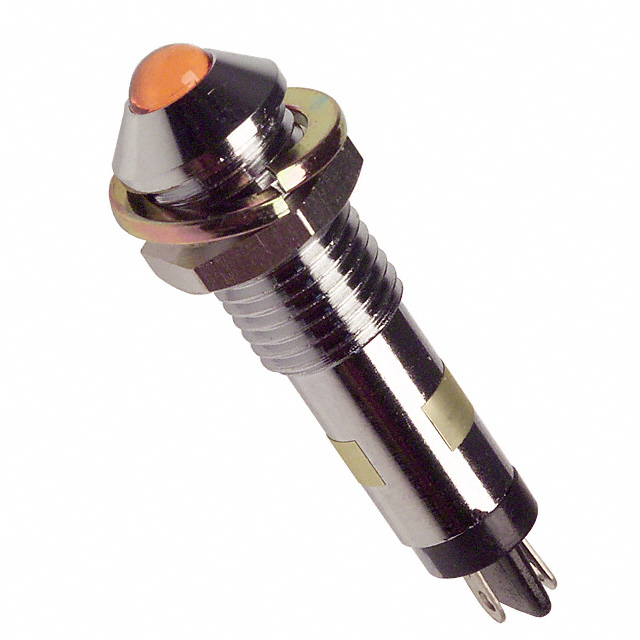

DIALIGHT 6071312130F	12 V	4 mm Dia	Yellow	Solder Lug	DC	15 mA	IP66 NEMA 4X	55 mcd	LED	7.2 mm	0.28 in	Round with Domed Top	Round

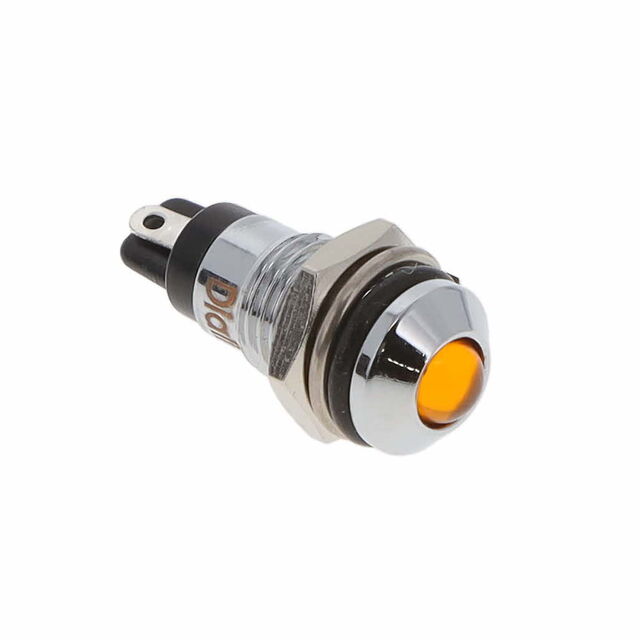

DIALIGHT 6071312310F	2 V	4 mm Dia	Yellow	Solder Lug	DC	15 mA	IP66 NEMA 4X	55 mcd	LED	7.2 mm	0.28 in	Round with Domed Top	Round

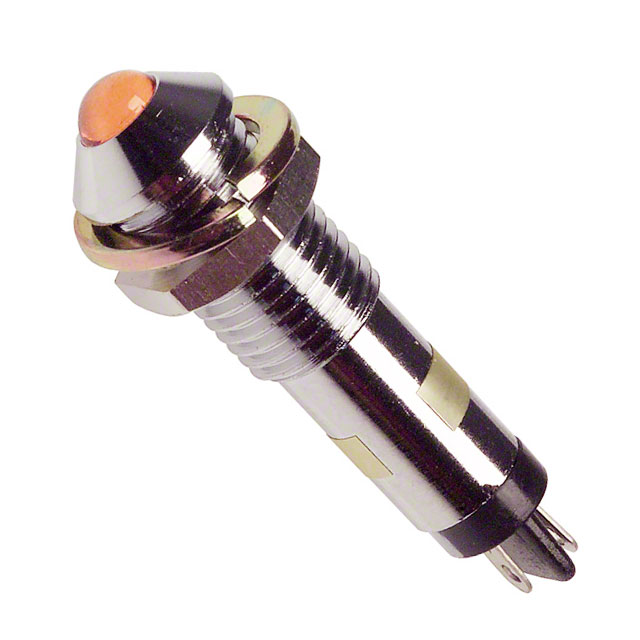

DIALIGHT 6071312110F	2 V	4 mm Dia	Yellow	Solder Lug	DC	15 mA	IP66 NEMA 4X	55 mcd	LED	7.2 mm	0.28 in	Round with Domed Top	Round
DIALIGHT 6071312320F	6 V	4 mm Dia	Yellow	Solder Lug	DC	15 mA	IP66 NEMA 4X	55 mcd	LED	7.2 mm	0.28 in	Round with Domed Top	Round
DIALIGHT 6071312120F	6 V	4 mm Dia	Yellow	Solder Lug	DC	15 mA	IP66 NEMA 4X	55 mcd	LED	7.2 mm	0.28 in	Round with Domed Top	Round
