5962-0824203 Series

Catalog

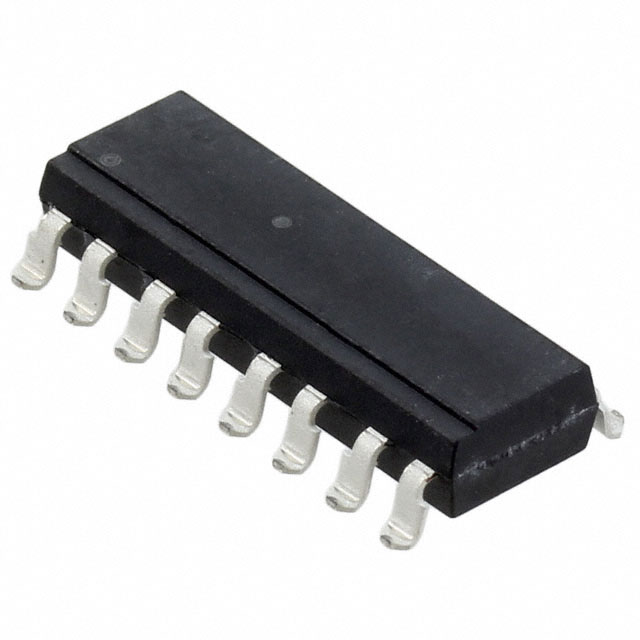

OPTOISO 1.5KV OPEN COLL 16SMD GW

Part	Number of Channels	Voltage - Isolation	Current - Output / Channel	Voltage - Forward (Vf) (Typ)	Package / Case	Data Rate	Voltage - Supply [Max]	Voltage - Supply [Min]	Supplier Device Package	Current - DC Forward (If) (Max) [Max]	Rise / Fall Time (Typ)	Input Type	Common Mode Transient Immunity (Min) [Min]	Output Type	Propagation Delay tpLH / tpHL (Max) [Max]	Inputs - Side 1/Side 2 [custom]	Operating Temperature [Min]	Operating Temperature [Max]	Mounting Type	Package / Case [x]	Package / Case [x]
Broadcom Limited 5962-0824203HTA	2	1.5 kV	25 mA	1.55 V	16-SMD Gull Wing	10 Mbps	3.6 V	3 V	16-SMD Gull Wing	20 mA	8 ns 20 ns	DC	1 kV/µs	Open Collector Schottky Clamped	100 ns	2	-55 C	125 °C	Surface Mount
Broadcom Limited 5962-0824203KEA	2	1.5 kV	25 mA	1.55 V	16-DIP	10 Mbps	3.6 V	3 V	16-DIP	20 mA	8 ns 20 ns	DC	1 kV/µs	Open Collector Schottky Clamped	100 ns	2	-55 C	125 °C	Through Hole	0.3 in	7.62 mm
Broadcom Limited 5962-0824203HEA	2	1.5 kV	25 mA	1.55 V	16-DIP	10 Mbps	3.6 V	3 V	16-DIP	20 mA	8 ns 20 ns	DC	1 kV/µs	Open Collector Schottky Clamped	100 ns	2	-55 C	125 °C	Through Hole	0.3 in	7.62 mm
Broadcom Limited 5962-0824203KEC	2	1.5 kV	25 mA	1.55 V	16-DIP	10 Mbps	3.6 V	3 V	16-DIP	20 mA	8 ns 20 ns	DC	1 kV/µs	Open Collector Schottky Clamped	100 ns	2	-55 C	125 °C	Through Hole	0.3 in	7.62 mm
Broadcom Limited 5962-0824203HUC	2	1.5 kV	25 mA	1.55 V	16-SMD Butt Joint	10 Mbps	3.6 V	3 V	16-SMD Butt Joint	20 mA	8 ns 20 ns	DC	1 kV/µs	Open Collector Schottky Clamped	100 ns	2	-55 C	125 °C	Surface Mount
Broadcom Limited 5962-0824203KTA	2	1.5 kV	25 mA	1.55 V	16-SMD Gull Wing	10 Mbps	3.6 V	3 V	16-SMD Gull Wing	20 mA	8 ns 20 ns	DC	1 kV/µs	Open Collector Schottky Clamped	100 ns	2	-55 C	125 °C	Surface Mount
Broadcom Limited 5962-0824203KUA	2	1.5 kV	25 mA	1.55 V	16-SMD Butt Joint	10 Mbps	3.6 V	3 V	16-SMD Butt Joint	20 mA	8 ns 20 ns	DC	1 kV/µs	Open Collector Schottky Clamped	100 ns	2	-55 C	125 °C	Surface Mount
Broadcom Limited 5962-0824203KUC	2	1.5 kV	25 mA	1.55 V	16-SMD Butt Joint	10 Mbps	3.6 V	3 V	16-SMD Butt Joint	20 mA	8 ns 20 ns	DC	1 kV/µs	Open Collector Schottky Clamped	100 ns	2	-55 C	125 °C	Surface Mount
Broadcom Limited 5962-0824203HUA	2	1.5 kV	25 mA	1.55 V	16-SMD Butt Joint	10 Mbps	3.6 V	3 V	16-SMD Butt Joint	20 mA	8 ns 20 ns	DC	1 kV/µs	Open Collector Schottky Clamped	100 ns	2	-55 C	125 °C	Surface Mount
