RI-02SM Series

Catalog

SWITCH REED SPST-NO 500MA 140V

Part	Type	Voltage - Switching DC	Operating Temperature [Max]	Operating Temperature [Min]	Voltage - Switching AC [custom]	Power - Rated	Termination Style	Current - Switching	Circuit	Mounting Type	Size - Body [x]	Size - Body [x]	Size - Body [z]	Size - Body [z]	Size - Body [y]	Size - Body [y]	Height Above Board [z]	Height Above Board [z]	Length - Overall [x]	Length - Overall [x]	Operate Range [Max]	Operate Range [Min]	Current - Carry	Release Range [Max]	Release Range [Min]

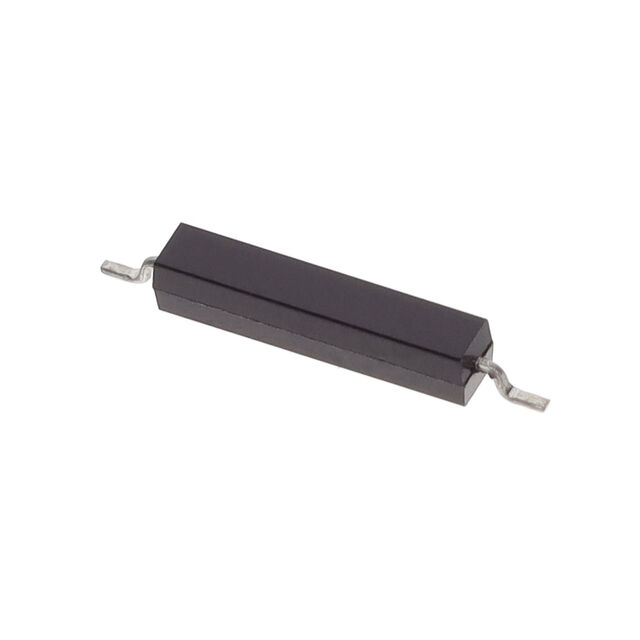

Comus International RI-02SMDM-1520-G1	Molded Body Reed	200 V	125 °C	-40 C	140 V	10 W	Gull Wing	500 mA	SPST-NO	Surface Mount	11.48 mm	0.452 "	2.29 mm	0.09 "	0.09 "	2.29 mm	2.41 mm	0.095 in	0.639 in	16.23 mm	20 AT	15 AT	500 mA	18 AT	4

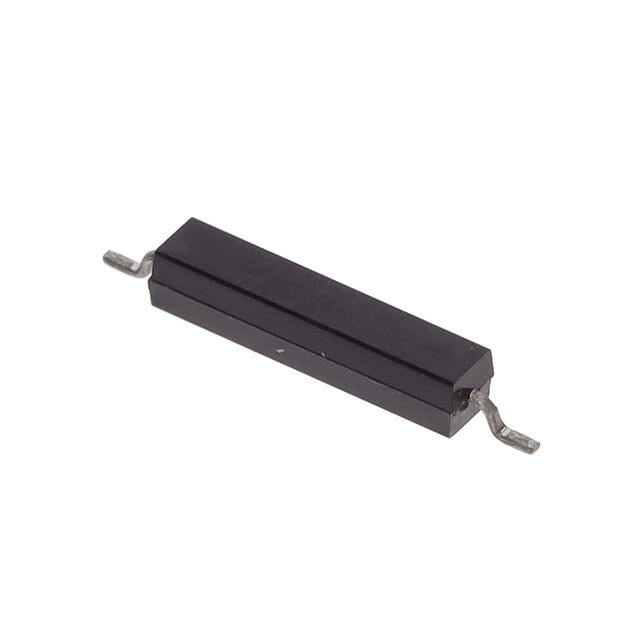

Comus International RI-02SMDM-1015-G1	Molded Body Reed	200 V	125 °C	-40 C	140 V	10 W	Gull Wing	500 mA	SPST-NO	Surface Mount	11.48 mm	0.452 "	2.29 mm	0.09 "	0.09 "	2.29 mm	2.41 mm	0.095 in	0.639 in	16.23 mm	15	10	500 mA	13 AT	2
