32953 Series
Manufacturer: TE Connectivity Raychem Cable Protection
Beta
⌘K

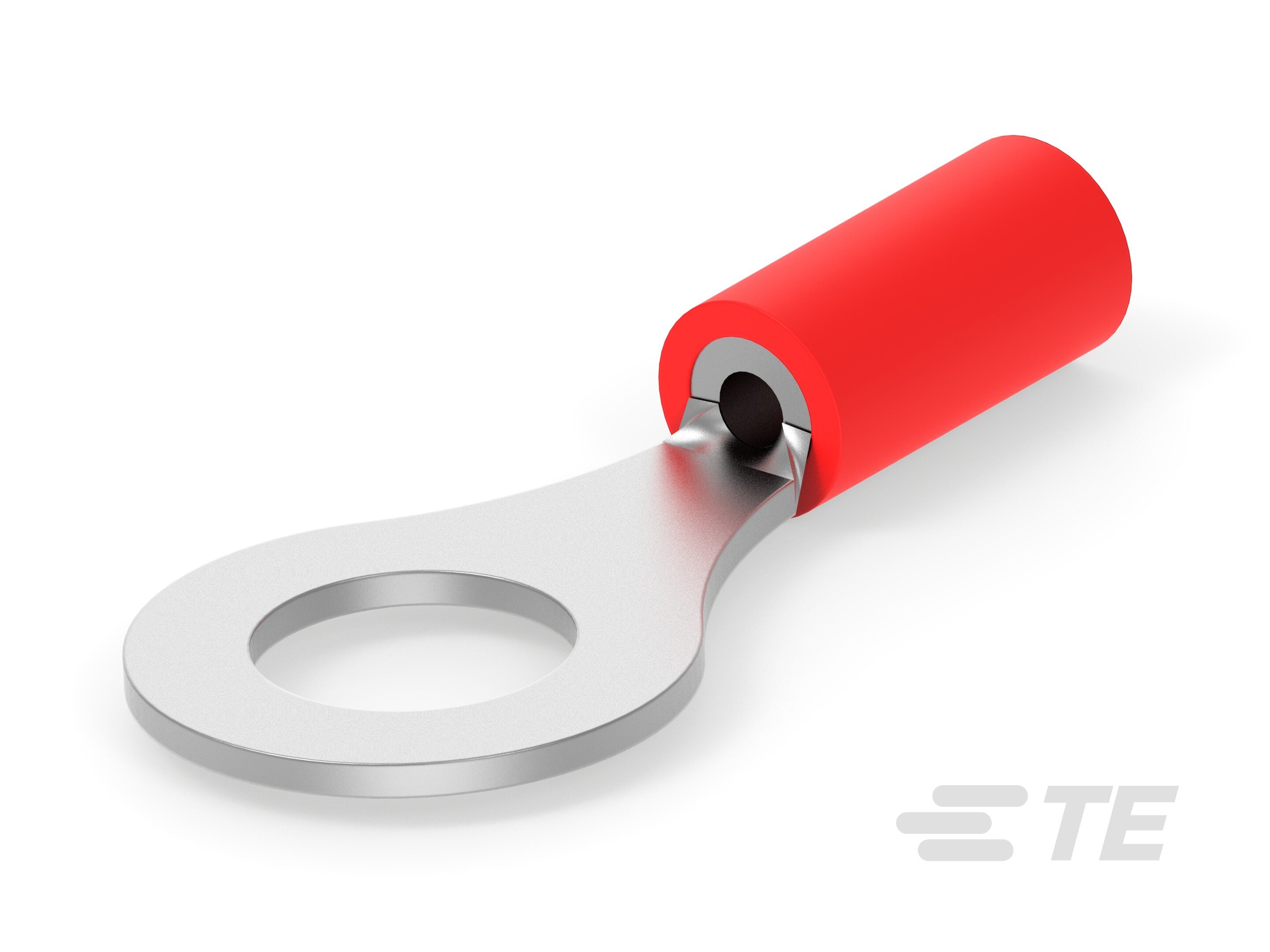

PG R 22-16 COMM 22-18 MIL 1/4
| Part | Termination | Contact Finish | Thickness | Thickness | Terminal Type | Insulation Diameter [Min] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Max] [diameter] | Insulation Diameter [Min] [diameter] | Material - Insulation | Mounting Type | Insulation | Length - Overall [x] | Length - Overall [x] | Features | Color | Wire Gauge [Max] | Wire Gauge [Min] | Stud/Tab Size | Contact Material | Width - Outer Edges [y] | Width - Outer Edges [y] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
 TE Connectivity Raychem Cable Protection | Crimp | Tin | 0.031 in | 0.79 mm | Circular | 2.03 mm | 3.18 mm | 0.125 " | 0.08 in | Poly-Vinyl Chloride (PVC) | Free Hanging (In-Line) | Insulated | 1.09 in | 27.69 mm | Serrated Termination | Red | 22 AWG | 16 AWG | 0.25 Stud | Copper | 11.91 mm | 0.469 in |
