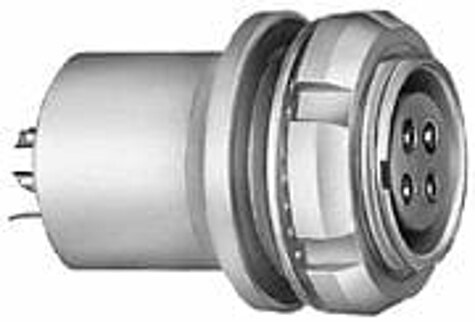

HMG.1B Series

Manufacturer: LEMO

Catalog

CONN RCPT FMALE 10P SOLDER CUP

Part	Contact Finish - Mating	Number of Positions	Fastening Type	Shielding	Mounting Type	Color	Connector Type	Orientation [custom]	Features	Contact Finish Thickness - Mating	Contact Finish Thickness - Mating	Contact Material	Shell Material	Operating Temperature [Min]	Operating Temperature [Max]	Shell Size - Insert	Insert Material	Ingress Protection	Primary Material	Shell Finish	Mounting Feature	Material Flammability Rating	Current Rating (Amps)	Termination	Shell Size - Insert [custom]	Shell Size - Insert [custom]
LEMO HMG.1B.310.CLLP	Gold	10	Push-Pull	Shielded	Panel Mount	Silver	Receptacle Female Sockets	G	Ground Potted	1.5 Ám	59 Áin	Bronze	Brass	-20 ░C	100 °C	310	Polyetheretherketone (PEEK)	IP68 - Dust Tight Waterproof	Metal	Chrome	Bulkhead - Front Side Nut	UL94 V-0	2.5 A
LEMO HMG.1B.310.CLNP	Gold	10	Push-Pull	Shielded	Panel Mount Through Hole	Silver	Receptacle Female Sockets	G	Ground Potted	1.5 Ám	59 Áin	Bronze	Brass	-20 ░C	100 °C	310	Polyetheretherketone (PEEK)	IP68 - Dust Tight Waterproof	Metal	Chrome	Bulkhead - Front Side Nut	UL94 V-0	2.5 A	Solder
LEMO HMG.1B.305.CLWP	Gold	5	Push-Pull	Shielded	Panel Mount	Silver	Receptacle Female Sockets	G	Ground Potted			Copper	Brass	-20 ░C	100 °C	305	Polyetheretherketone (PEEK)	IP68 - Dust Tight Waterproof	Metal	Chrome	Bulkhead - Front Side Nut	UL94 V-0	9 A
LEMO HMG.1B.304.CLLP	Gold	4	Push-Pull	Shielded	Panel Mount	Silver	Receptacle Female Sockets	G	Ground Potted	1.5 Ám	59 Áin	Bronze	Brass	-20 ░C	100 °C	304	Polyetheretherketone (PEEK)	IP68 - Dust Tight Waterproof	Metal	Chrome	Bulkhead - Front Side Nut	UL94 V-0	10 A
LEMO HMG.1B.314.CLNP	Gold	14	Push-Pull	Shielded	Panel Mount Through Hole	Silver	Receptacle Female Sockets	G	Ground Potted	1.5 Ám	59 Áin	Bronze	Brass	-20 ░C	100 °C	314	Polyetheretherketone (PEEK)	IP68 - Dust Tight Waterproof	Metal	Chrome	Bulkhead - Front Side Nut	UL94 V-0	2 A	Solder
LEMO HMG.1B.307.CLLP	Gold	7	Push-Pull	Shielded	Panel Mount	Silver	Receptacle Female Sockets	G	Ground Potted	1.5 Ám	59 Áin	Bronze	Brass	-20 ░C	100 °C		Polyetheretherketone (PEEK)	IP68 - Dust Tight Waterproof	Metal	Chrome	Bulkhead - Front Side Nut	UL94 V-0	7 A		307
LEMO HMG.1B.316.CLNP	Gold	16	Push-Pull	Shielded	Panel Mount Through Hole	Silver	Receptacle Female Sockets	G	Ground Potted	1.5 Ám	59 Áin	Bronze	Brass	-20 ░C	100 °C		Polyetheretherketone (PEEK)	IP68 - Dust Tight Waterproof	Metal	Chrome	Bulkhead - Front Side Nut	UL94 V-0	1.5 A	Solder		316
LEMO HMG.1B.308.CLLP	Gold	8	Push-Pull	Shielded	Panel Mount	Silver	Receptacle Female Sockets	G	Ground Potted	1.5 Ám	59 Áin	Bronze	Brass	-20 ░C	100 °C	308	Polyetheretherketone (PEEK)	IP68 - Dust Tight Waterproof	Metal	Chrome	Bulkhead - Front Side Nut	UL94 V-0	5 A
LEMO HMG.1B.314.CLLP	Gold	14	Push-Pull	Shielded	Panel Mount	Silver	Receptacle Female Sockets	G	Ground Potted	1.5 Ám	59 Áin	Bronze	Brass	-20 ░C	100 °C	314	Polyetheretherketone (PEEK)	IP68 - Dust Tight Waterproof	Metal	Chrome	Bulkhead - Front Side Nut	UL94 V-0	2 A
LEMO HMG.1B.305.CLNP	Gold	5	Push-Pull	Shielded	Panel Mount Through Hole	Silver	Receptacle Female Sockets	G	Ground Potted	1.5 Ám	59 Áin	Bronze	Brass	-20 ░C	100 °C	305	Polyetheretherketone (PEEK)	IP68 - Dust Tight Waterproof	Metal	Chrome	Bulkhead - Front Side Nut	UL94 V-0	9 A	Solder
