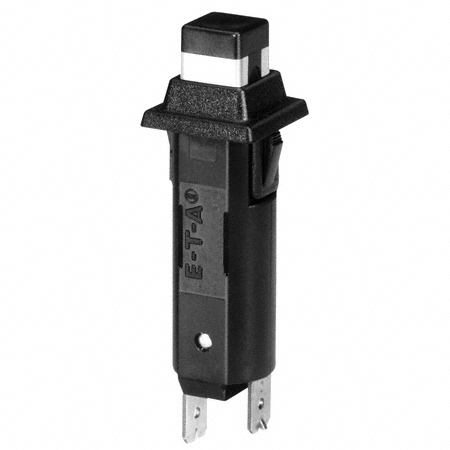

1110-Fx12-P1M1 Series

Manufacturer: E-T-A

Catalog

CIRCUIT BREAKERS SINGLE POLE SWITCH/THERMAL CIRCUIT BREAKER (S-TYPE TO CBE TO EN 60934) WITH TEASE-FREE, TRIP-FREE, SNAP ACTION MECHANISM. DESIGNED FOR SNAP-IN PANEL MOUNTING UTILISING ROUND HOLE OR INDUSTRY STANDARD FUSE-HOLDER CUT-OUT DIMENSIONS. FE

Part	Illumination	Voltage Rating - DC	Approval Agency	Current Rating (Amps)	Breaker Type	Mounting Type	Actuator Type	Number of Poles	Voltage Rating - AC
E-T-A 1110-F212-P1M1-12A	None	50 VDC	CSA C22.2 No 235 IEC 60934 UL1077	12 Amps	Thermal	Panel Mount	Push-Push	1	250 V
E-T-A 1110-F21B-P1M1-0.5A	None	50 VDC	CSA C22.2 No 235 IEC 60934 UL1077	0.5 A	Thermal	Panel Mount	Push-Push	1	250 V
E-T-A 1110-F212-P1M1-1.2A	None	50 VDC	CSA C22.2 No 235 IEC 60934 UL1077	1.2 A	Thermal	Panel Mount	Push-Push	1	250 V
E-T-A 1110-F112-P1M1-3.5A	None	50 VDC	CSA C22.2 No 235 IEC 60934 UL1077	3.5 A	Thermal	Panel Mount	Push-Push	1	250 V
E-T-A 1110-F112-P1M1-2.5A	None	50 VDC	CSA C22.2 No 235 IEC 60934 UL1077	2.5 A	Thermal	Panel Mount	Push-Push	1	250 V
E-T-A 1110-F212-P1M1-2A	None	50 VDC	CSA C22.2 No 235 IEC 60934 UL1077	2 A	Thermal	Panel Mount	Push-Push	1	250 V
E-T-A 1110-F112-P1M1-8A	None	50 VDC	CSA C22.2 No 235 IEC 60934 UL1077	8 A	Thermal	Panel Mount	Push-Push	1	250 V

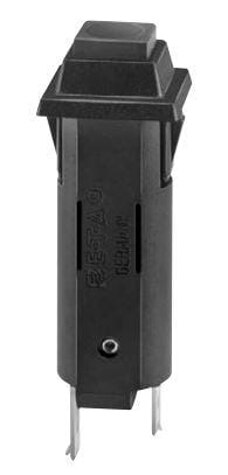

E-T-A 1110-F212-P1M1-0.2A	None	50 VDC	CSA C22.2 No 235 IEC 60934 UL1077	0.2 A	Thermal	Panel Mount	Push-Push	1	250 V
