G9EC-1 Series

Manufacturer: Omron Electronics Inc-EMC Div

Catalog

RELAY GEN PURPOSE SPST 200A 24V

Part	Must Operate Voltage	Termination Style	Operate Time	Mounting Type	Seal Rating	Operating Temperature [Min]	Operating Temperature [Max]	Must Release Voltage	Release Time	Coil Current	Switching Voltage	Coil Type	Coil Resistance	Load - Max Switching [Max]	Contact Form	Coil Voltage	Relay Type	Contact Rating (Current)

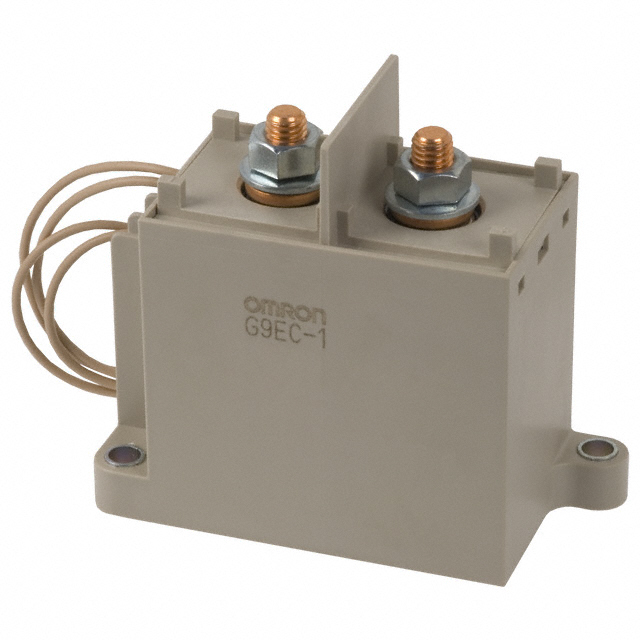

Omron Electronics Inc-EMC Div G9EC-1 DC24	18 VDC	Wire Leads	50 ms	Chassis Mount	Sealed - Fully	-40 °C	50 °C	1.92 VDC	30 ms	469 mA	400 VDC	Non Latching	51.2 Ohms	80000 VA	SPST-NO (1 Form A)	24 VDC	General Purpose	200 A

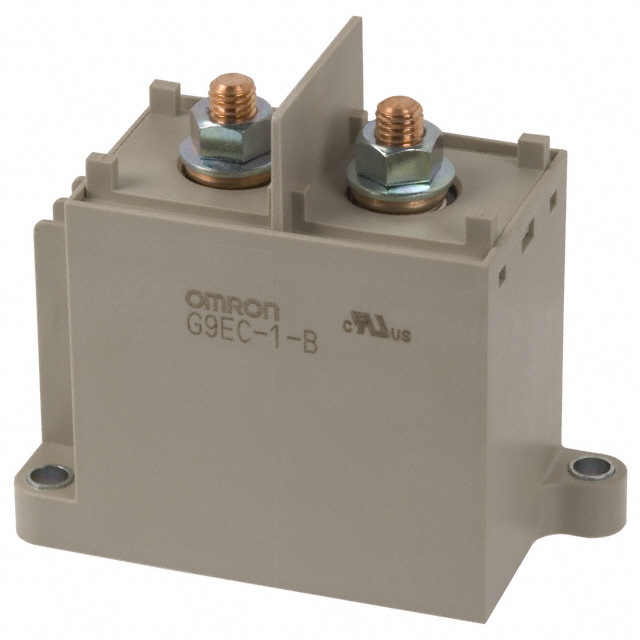

Omron Electronics Inc-EMC Div G9EC-1-B DC24	18 VDC	Screw Terminal	50 ms	Chassis Mount	Sealed - Fully	-40 °C	50 °C	1.92 VDC	30 ms	469 mA	400 VDC	Non Latching	51.2 Ohms	80000 VA	SPST-NO (1 Form A)	24 VDC	General Purpose	200 A
Omron Electronics Inc-EMC Div G9EC-1-B DC12	9 VDC	Screw Terminal	50 ms	Chassis Mount	Sealed - Fully	-40 °C	50 °C	0.96 VDC	30 ms	938 mA	400 VDC	Non Latching	12.8 Ohms	80000 VA	SPST-NO (1 Form A)	12 VDC	General Purpose	200 A
Omron Electronics Inc-EMC Div G9EC-1-B DC100	75 VDC	Screw Terminal	50 ms	Chassis Mount	Sealed - Fully	-40 °C	50 °C	10 VDC	30 ms	113 mA	400 VDC	Non Latching	889 Ohms	80000 VA	SPST-NO (1 Form A)	100 VDC	General Purpose	200 A
Omron Electronics Inc-EMC Div G9EC-1 DC12	9 VDC	Wire Leads	50 ms	Chassis Mount	Sealed - Fully	-40 °C	50 °C	0.96 VDC	30 ms	938 mA	400 VDC	Non Latching	12.8 Ohms	80000 VA	SPST-NO (1 Form A)	12 VDC	General Purpose	200 A
Omron Electronics Inc-EMC Div G9EC-1-B-DC60	45 VDC	Screw Terminal	50 ms	Chassis Mount	Sealed - Fully	-40 °C	50 °C	4.8 VDC	30 ms	188 mA	400 VDC	Non Latching	320 Ohms		SPST-NO (1 Form A)	60 VDC	General Purpose	200 A
