325-041 Series
Manufacturer: EDAC Inc.
Beta
⌘K
CONN EDGE SINGLE FML 41POS 0.100
| Part | Termination Rows | Material - Insulation | Gender | Flange Feature | Read Out | Card Thickness | Card Thickness | Contact Finish | Contact Type | Number of Positions | Mounting Type | Card Type | Number of Positions/Bay/Row | Pitch | Pitch | Color | Contact Material | Contact Finish Thickness | Contact Finish Thickness | Termination | Number of Rows | Operating Temperature [Min] | Operating Temperature [Max] | Flange Feature [diameter] | Flange Feature [diameter] |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|---|

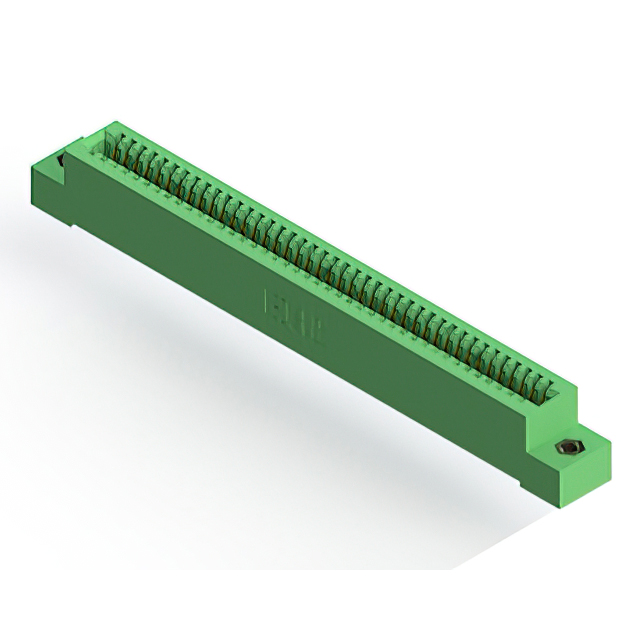

 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Female | 4-40 Flush Mount Threaded Insert Top Opening | Single | 3.18 mm | 0.125 in | Gold | Cantilever | 41 | Through Hole | Non Specified - Single Edge | 41 | 0.1 " | 2.54 mm | Green | Copper Alloy | 0.25 Ám | 10 Áin | Solder Eyelet(s) | 1 | -65 ░C | 125 °C | ||

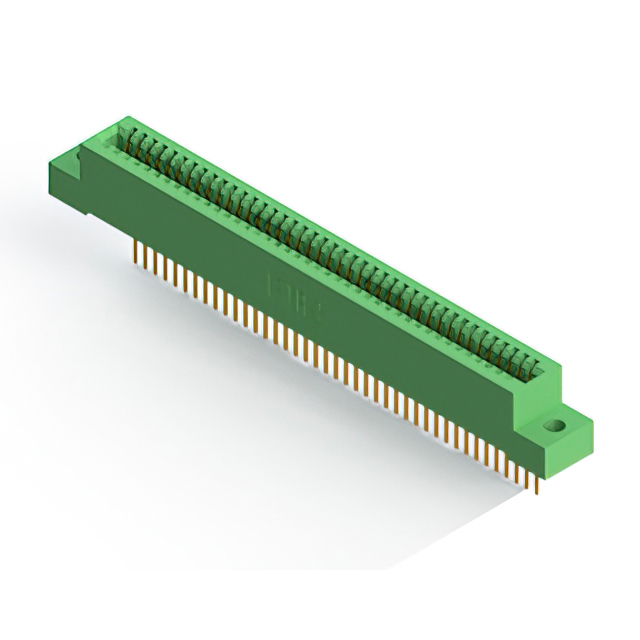

 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Female | Flush Mount Top Opening Unthreaded | Single | 3.18 mm | 0.125 in | Gold | Cantilever | 41 | Through Hole | Non Specified - Single Edge | 41 | 0.1 " | 2.54 mm | Green | Copper Alloy | 0.25 Ám | 10 Áin | Wire Wrap | 1 | -65 ░C | 125 °C | 0.16 " | 4.06 mm |
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Female | Flush Mount M3 Threaded Insert Top Opening | Single | 3.18 mm | 0.125 in | Gold | Cantilever | 41 | Through Hole | Non Specified - Single Edge | 41 | 0.1 " | 2.54 mm | Green | Copper Alloy | 0.25 Ám | 10 Áin | Solder | 1 | -65 ░C | 125 °C | ||

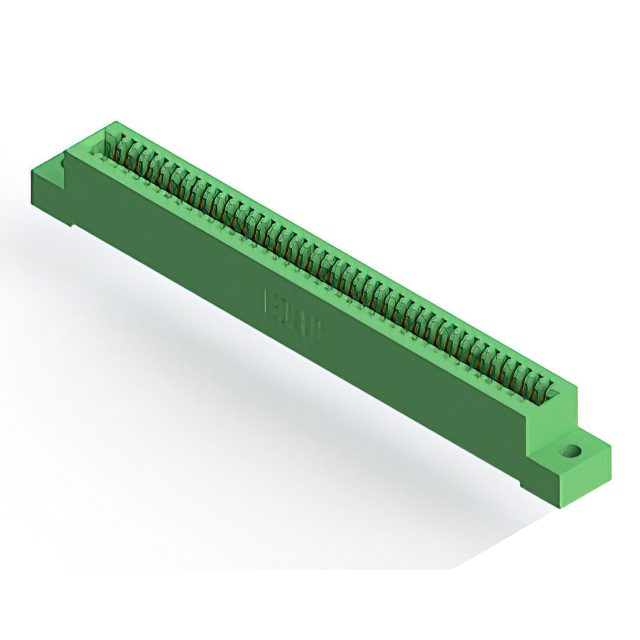

 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Female | Flush Mount Top Opening Unthreaded | Single | 3.18 mm | 0.125 in | Gold | Cantilever | 41 | Through Hole | Non Specified - Single Edge | 41 | 0.1 " | 2.54 mm | Green | Copper Alloy | 0.25 Ám | 10 Áin | Solder Eyelet(s) | 1 | -65 ░C | 125 °C | 0.16 " | 4.06 mm |

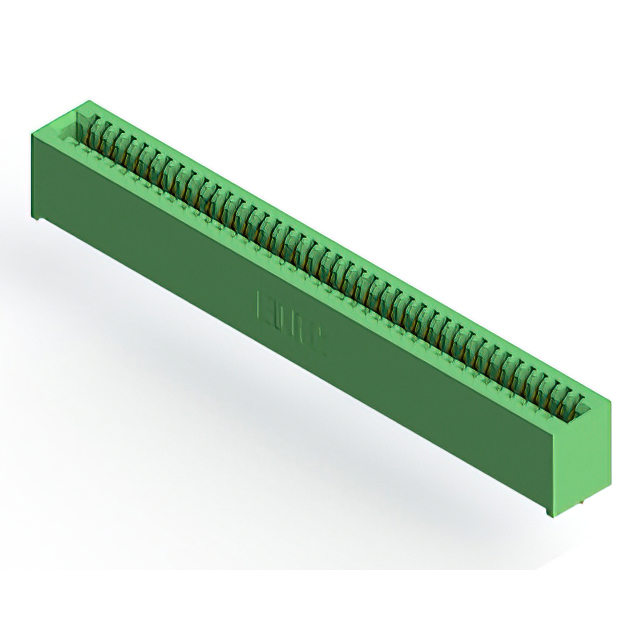

 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Female | Single | 3.18 mm | 0.125 in | Gold | Cantilever | 41 | Through Hole | Non Specified - Single Edge | 41 | 0.1 " | 2.54 mm | Green | Copper Alloy | 0.25 Ám | 10 Áin | Solder | 1 | -65 ░C | 125 °C | |||
 EDAC Inc. | 1 | Diallyl Phthalate (DAP) | Female | Flush Mount M3 Threaded Insert Top Opening | Single | 3.18 mm | 0.125 in | Gold | Cantilever | 41 | Through Hole | Non Specified - Single Edge | 41 | 0.1 " | 2.54 mm | Green | Copper Alloy | 0.25 Ám | 10 Áin | Solder Eyelet(s) | 1 | -65 ░C | 125 °C |
